Pencil Pogo Pin

  • Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance

  • Installation method: Insert molding or Fixed with the formed plastic shell

  • Contact Resistance: 30 milliohms Max.

  • Rated Current: 1A (Continuous Current)

  • Rated Voltage: 36V AC/DC

  • Durability: 10,000 Times (Reciprocating Motion Lifespan)

  • Operating Temperature: -40°C to +120°C (Continuous Temperature)

  • Salt Spray Resistance 96 Hours Corrosion Test

  • High-Precision Mold And Parts Processing

  • A variety of standards are available, and samples will be sent out as soon as the same day.

  • Provide Customized Services

  • Comply With EU RoHS And Reach Standards

Product Details
Technical Parameters
Product Selection Guide

Product Details

Pencil Pogo Pins are also called spring pins, Pogo Pin connectors, Pencil spring-loaded Pins, and their core function is to connect conductive or conductive signals.

Pencil Pogo Pins are designed with a bevel structure and built-in spring mechanism. They are mainly composed of three core components: Plunger, Spring and Body, and are assembled through precision molds and special equipment. The function of the bevel structure design is to ensure that when the Pogo Pins are working, the lateral force generated by the contact between the bevel and the spring is used to maintain a stable contact force between the needle and the inner wall of the needle tube, prompting the current path to mainly pass through the gold-plated needle (Plunger) and needle tube ( Body), resulting in stable and extremely low contact resistance, maintaining a stable and reliable connection even during frequent plugging and unplugging.

How to install Pencil Pogo Pins:

Insert molding: Prefabricated Pencil Pogo Pins are placed into the mold during the injection molding process, and then molten plastic is injected and solidified to form an integral part. Because the inserted Pencil Pogo Pins and plastic parts are formed in the same process, they are more closely connected, improving the overall quality and durability of the product. Currently, it is mainly used in smart electronic touch pencil tips for terminal screens such as tablet computers and smartphones.

Material & Parts

Pencil Pogo Pins is a classification of Pogo Pin connectors. It is a built-in spring connector designed and manufactured based on a bevel structure. It usually consists of three core parts: plunger, spring and body. It is mainly used in smart phones and flat computers. The touch pencil tip is characterized by low contact resistance, stable and reliable connection, long life and more durability.

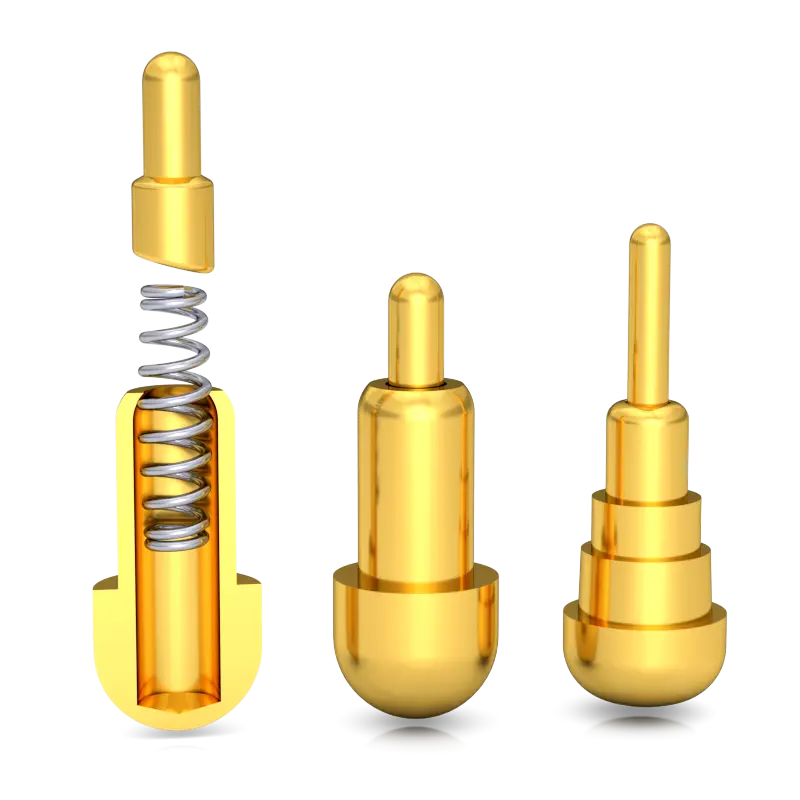

pencil pogo pin material

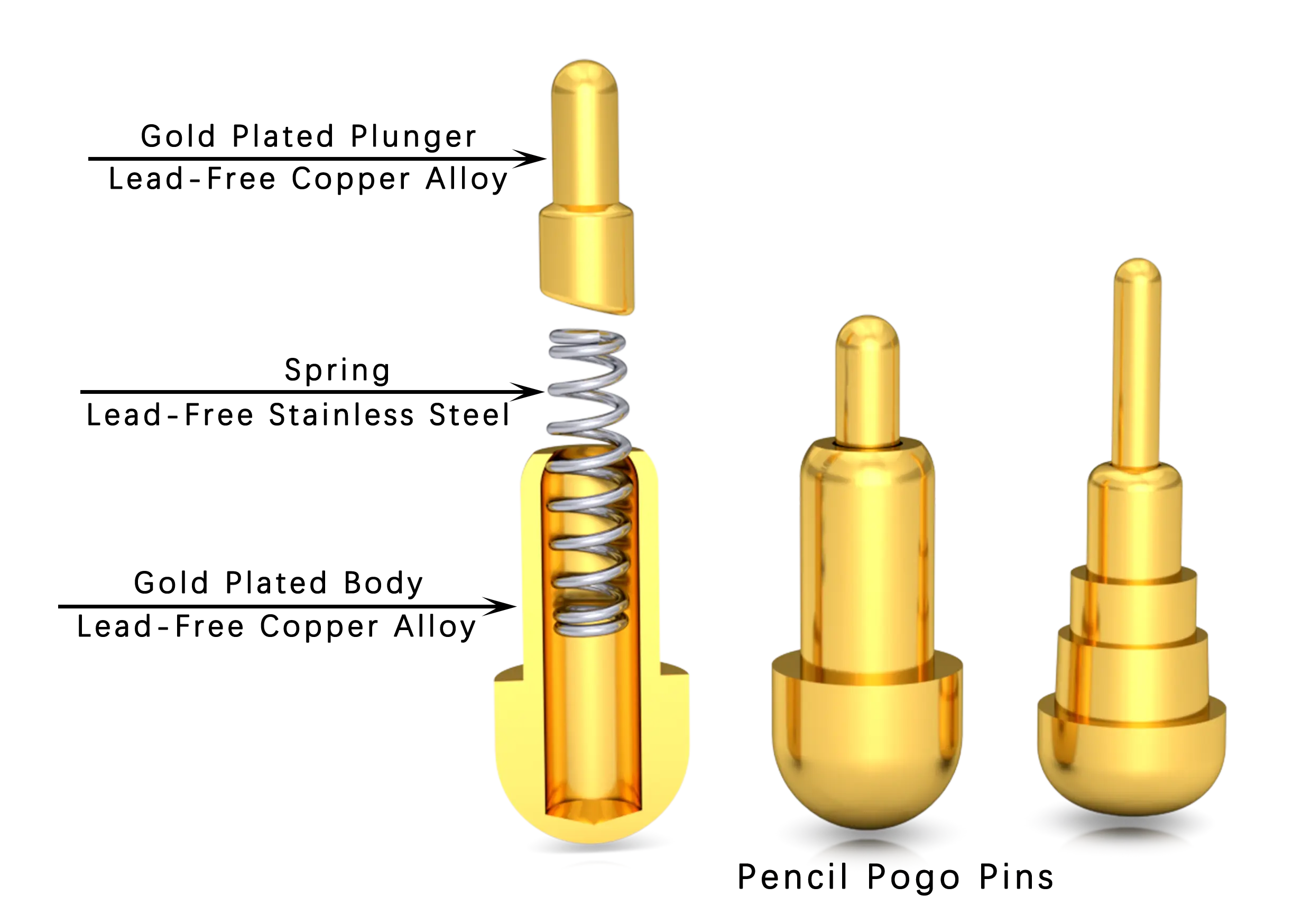

Pencil Pogo Pin uses Plunger bevel structure and the surface is Au-Plated

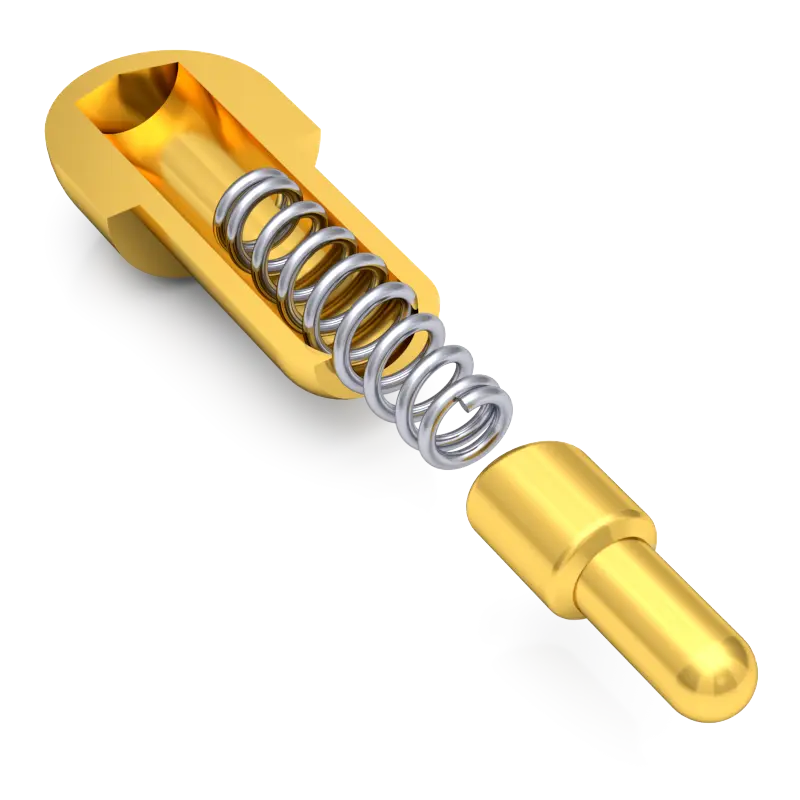

pencil pogo pin structure

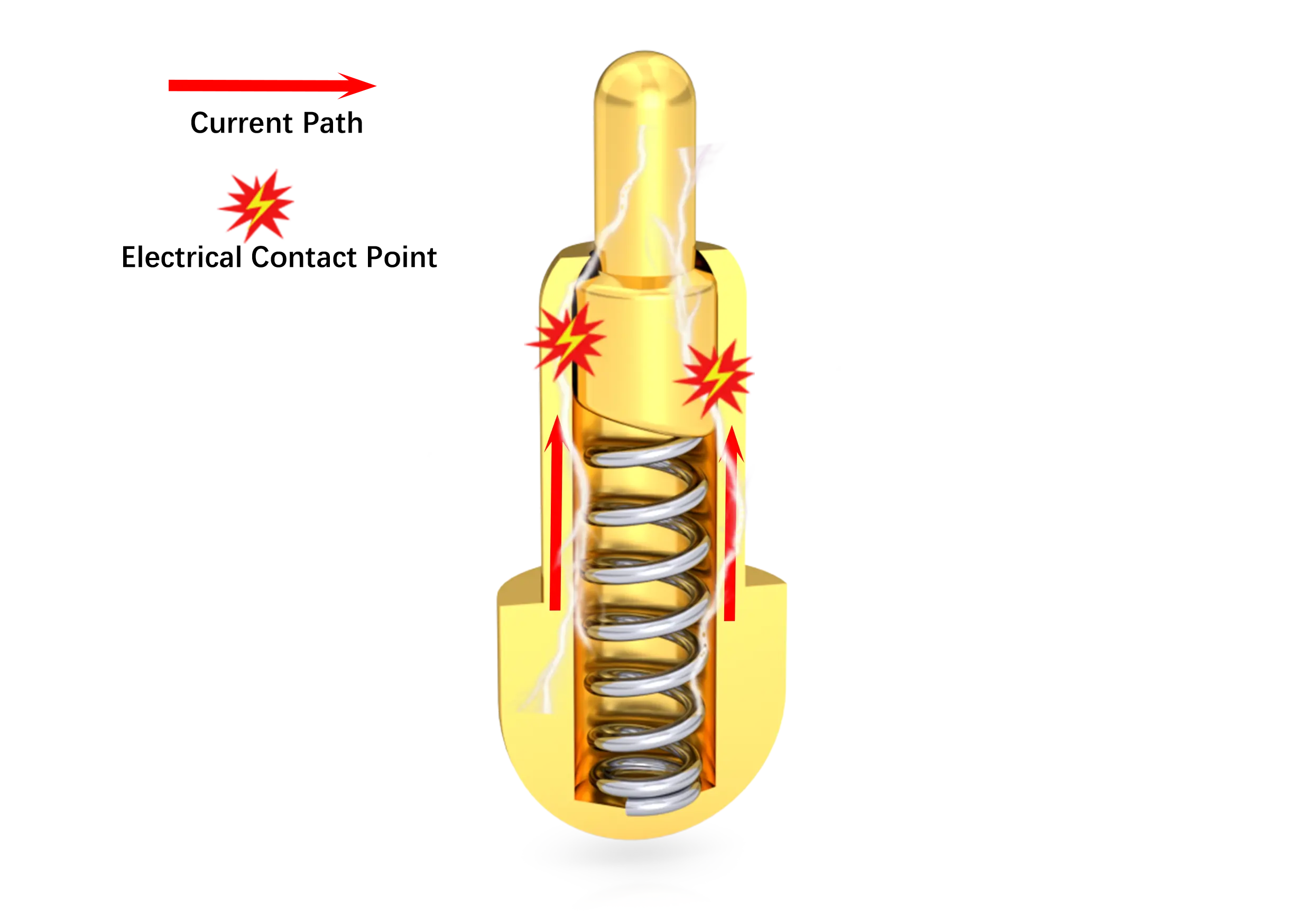

Contact force and contact resistance are the core factors for stable and reliable connections, and there is a direct relationship between contact force and contact resistance. Increasing contact force can effectively reduce contact resistance. Therefore, achieving stable contact force and contact resistance is key to establishing a reliable connection.

When the bevel and spring are working, the lateral force generated is converted into contact force, allowing the gold-plated needle to maintain stable contact with the inner wall of the needle tube, thereby obtaining stable and extremely low contact resistance, ensuring a stable and reliable connection.

pencil pogo pin roadway

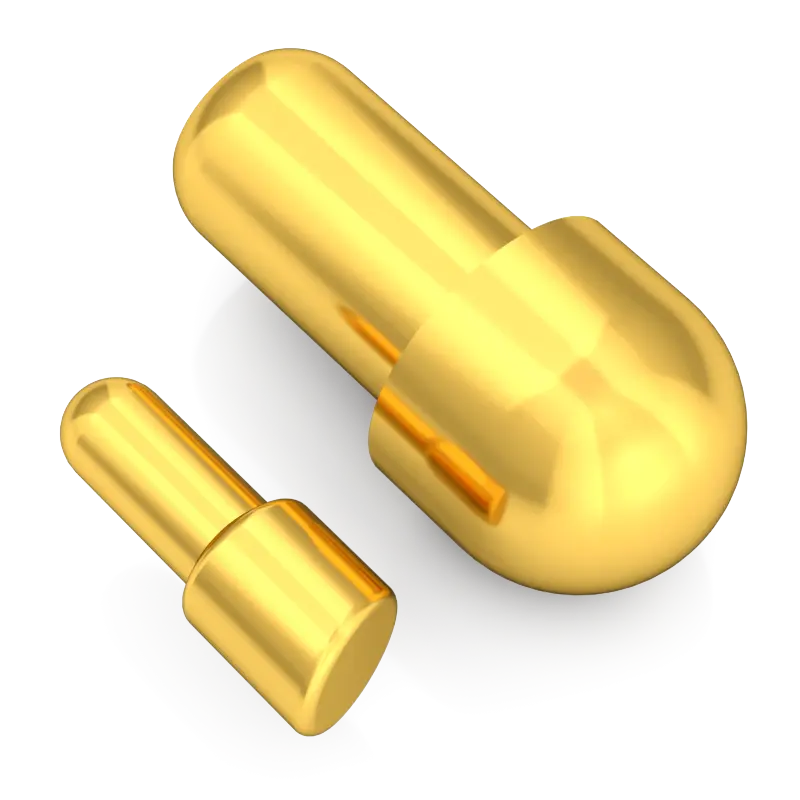

Electroplated Gold-Golden Yellow
Electroplated Nickel—Silver White

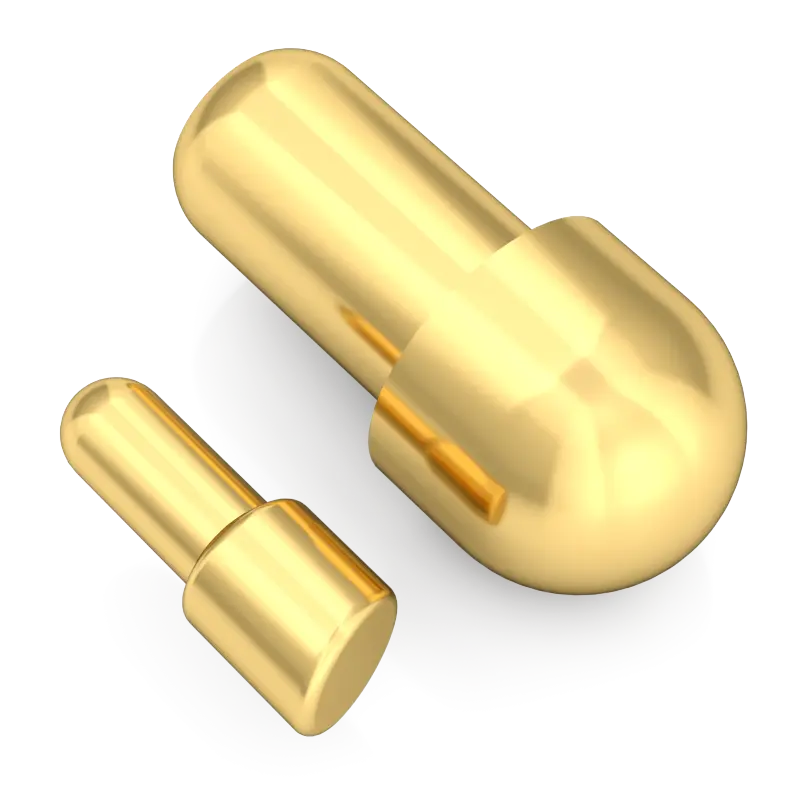

Before Electroplating - Brass Color

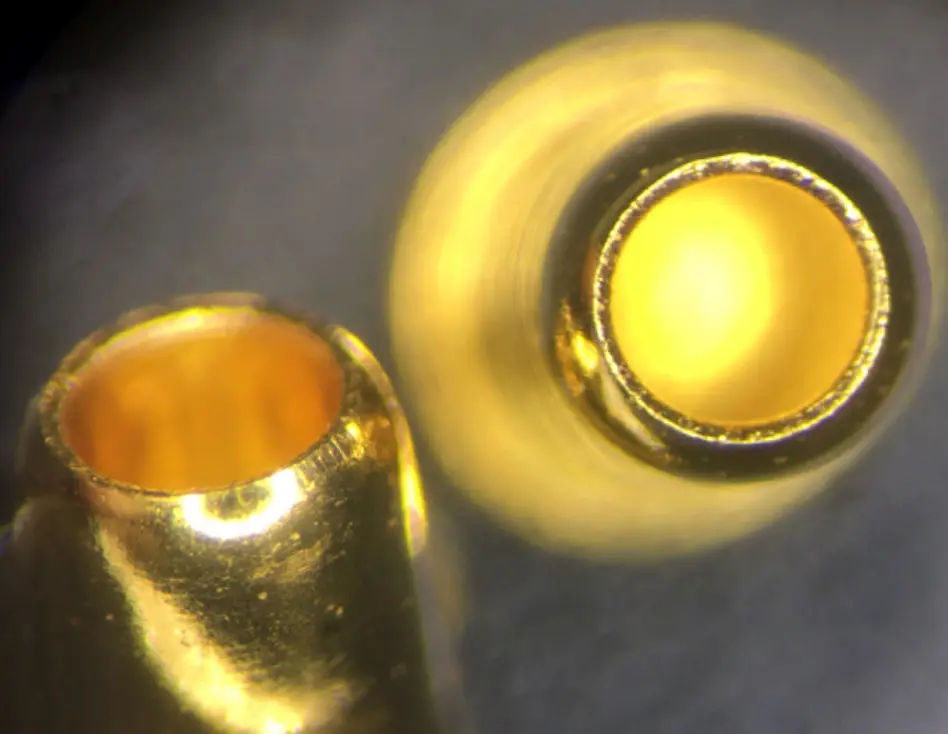

Vacuum blind hole plating technology is known for its excellent performance and can accurately plate a layer of gold inside and outside extremely fine blind holes. This advanced electroplating process not only ensures the overall beauty of the metal surface, but also provides excellent corrosion and wear resistance. Every detail, whether inside or outside the hole, shows a golden and shiny color, and there will be no peeling or gold falling off problems. The precision and stability of this technology ensure the durability and durability of the electroplated layer, meeting a variety of demanding application requirements.

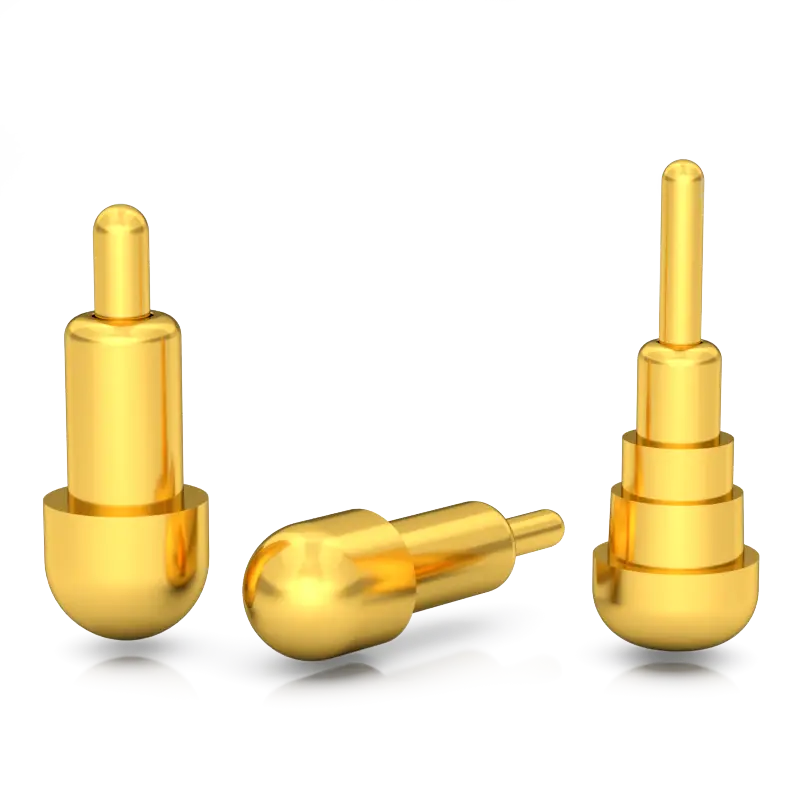

pencil pogo pin sample

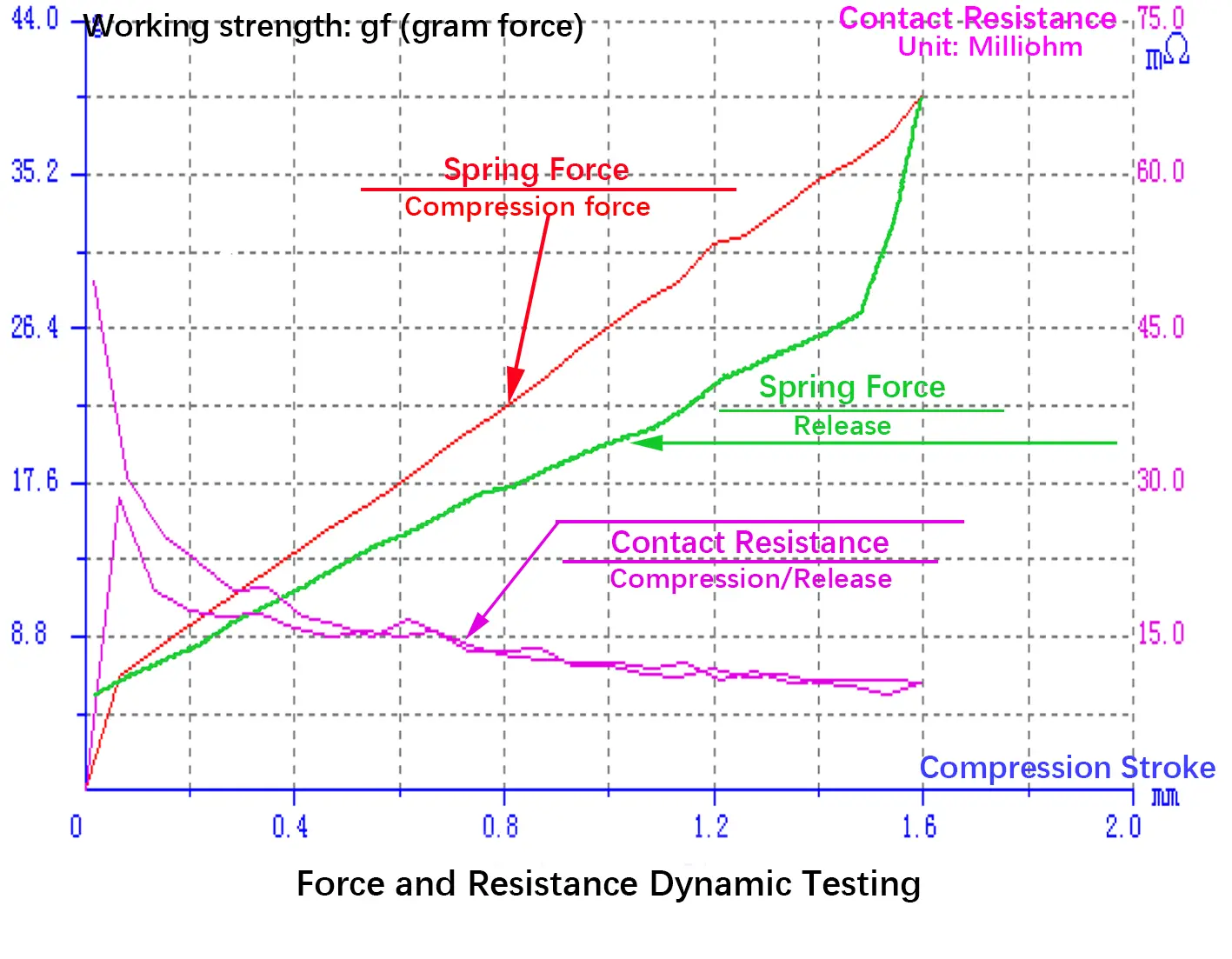

Mature design, high-precision processing and advanced vacuum blind hole plating technology are combined to achieve extremely low and stable contact resistance.

pencil pogo pin design

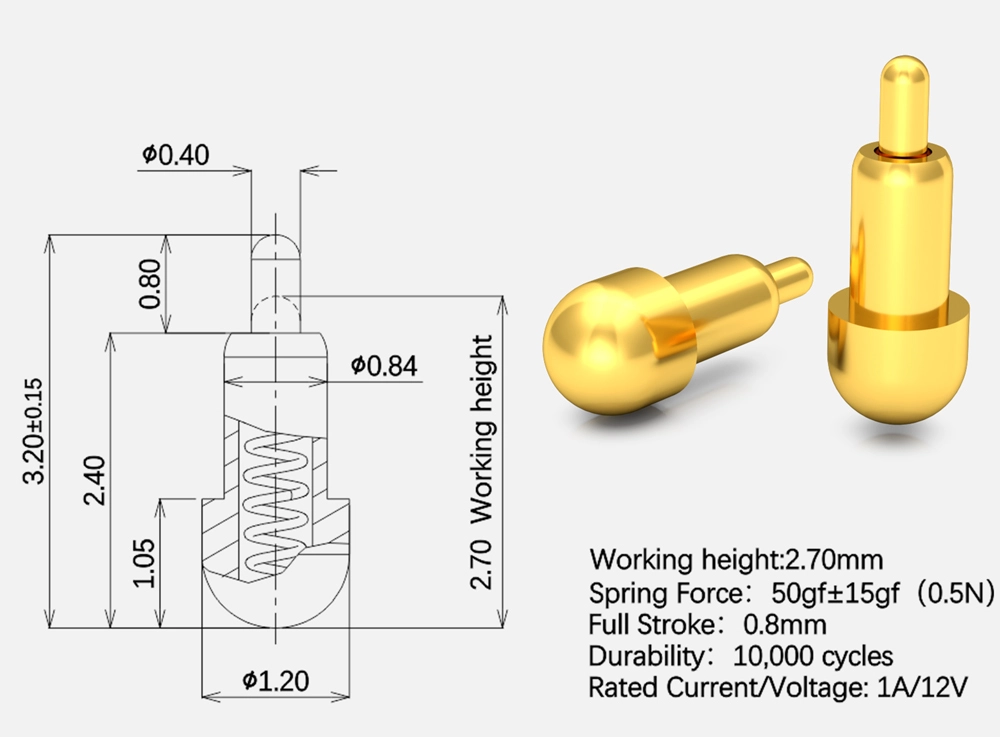

Standard Product

standard product of pencil pogo pin

Technical Parameters of Pencil Pogo Pin

Material● Plunger: Lead-Free Copper Alloy
● Body: Lead-Free Copper Alloy
● Spring: Stainless Steel
Main Technical Parameters● Standard state:
● Operating temperature: -40~+120°C(Standard)
● Operating humidity: 20-85%RH
● Storage temperature: -10~+50°C
● Storage humidity: 20-85%RH
● Rating voltage: 12V AC/DC(Standard)
● Rating current: 1A/Pin Continuous(Standard)
● Contact resistance: 30 mΩ Max.(Standard)
● Withstanding voltage: 250V AC ,1 Minute
● Insulation resistance: 500 MΩ Min.
● Durability: 10,000 Cycle(Standard)
● Working Spring Force: 40~80gf(Standard)
Electroplating● Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm
● Body: Ni Plating 1.4μm, Gold Plating 0.10μm
Contact Type● Vertical Contact Type
Installation Method● Insert molding or Fixed with the formed plastic shell
Environmental Protection Standard● Comply with EU RoHS and Reach standards

Selection Guide of Pencil Pogo Pin

Please Note: Please refer to the operation manual for instructions and precautions

SNProduct ImageFull StrokeInitial HeightWorking HeightCatalog Download

Selection Guide of Pencil Pogo Pin

0.8~1.503.2~6.002.7~5.50Pencil Pogo Pins
