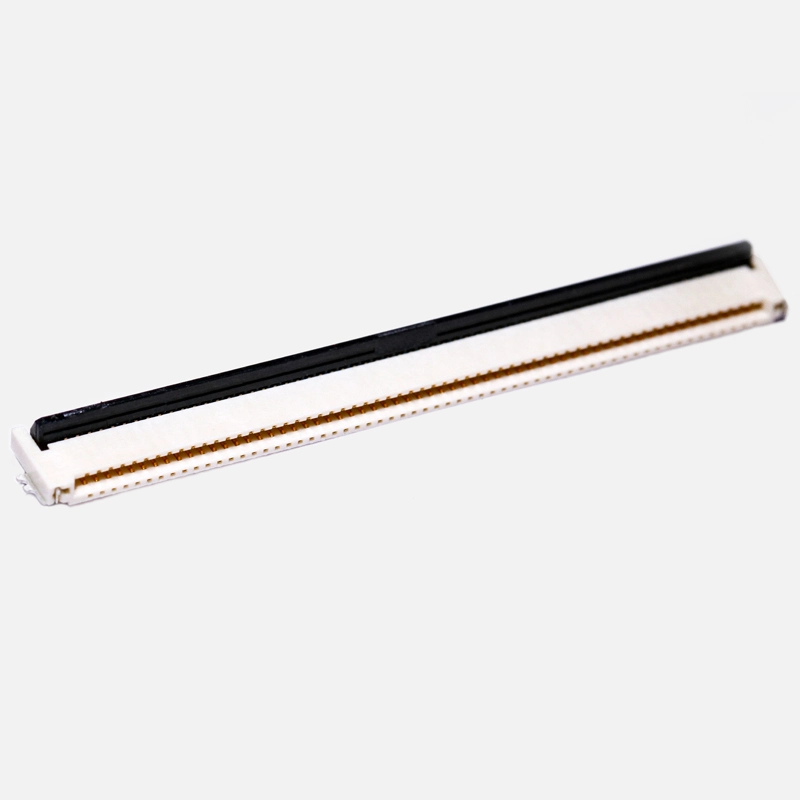

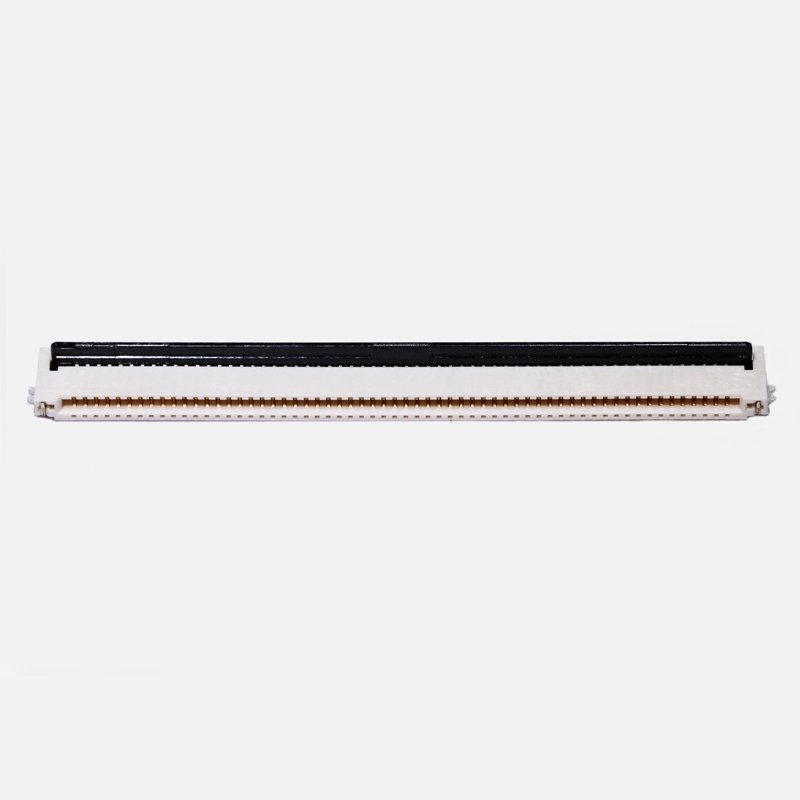

Pitch 0.5mm H=1.2mm Dual Contact Side FPC & FFC Connector

Main Technical Parameters

Operating Temperature: -40 ~ +85℃

Rating Voltage: 50V (AC/DC)

Rating Current: 0.5A/PIN

Contact resistance: 50mΩ Max

Insulation impendance: 500MΩMin

Durability: 20 Times/Min


Material

Housing: LCP Natural UL94V-0

Cover: PA Black UL94V-0

Terminal: Copper alloy Plating: Au

Stator: Copper alloy Plating: Tin

Contact Type: Double contact


Important Safety Information

Note: Do not close connector without FPC/FFC


Environmental Protection Standard

Comply with the EU RoHS, Reach

PDF Download

Product Details
Technical Parameters
Product Selection Guide

Product Details

The 90602 series FPC/FFC connectors are precision electronic connectors designed for compact electronic devices. They feature the following characteristics:

0.5mm pitch: This fine pitch allows for more connection points in a limited space, suitable for high-density wiring requirements.

Plastic height of 1.2mm: The connector's vertical profile is very low, which helps in designing thinner electronic devices and reducing overall volume.

Double-sided contact: The fpc or ffc connectors are designed to make contact from both sides, increasing the reliability and flexibility of the connection.

Rear locking mechanism: The connectors use a rear locking system to ensure that the FPC or FFC is firmly inserted and locked in place, preventing it from dislodging during use.

Installation method: Fixed by reflow soldering with an SMT machine, when installing the FPC/FFC connector, first insert the FPC or FFC flex cable into the connector slot, and then secure it by pressing down or sliding the locking mechanism.


Rtench connectors are suitable for a variety of electronic devices that require miniaturization and highly reliable connections, such as portable devices, smartphones, tablets, laptops, and other consumer electronics. Their design aims to simplify the assembly process while ensuring long-term stable connection performance.

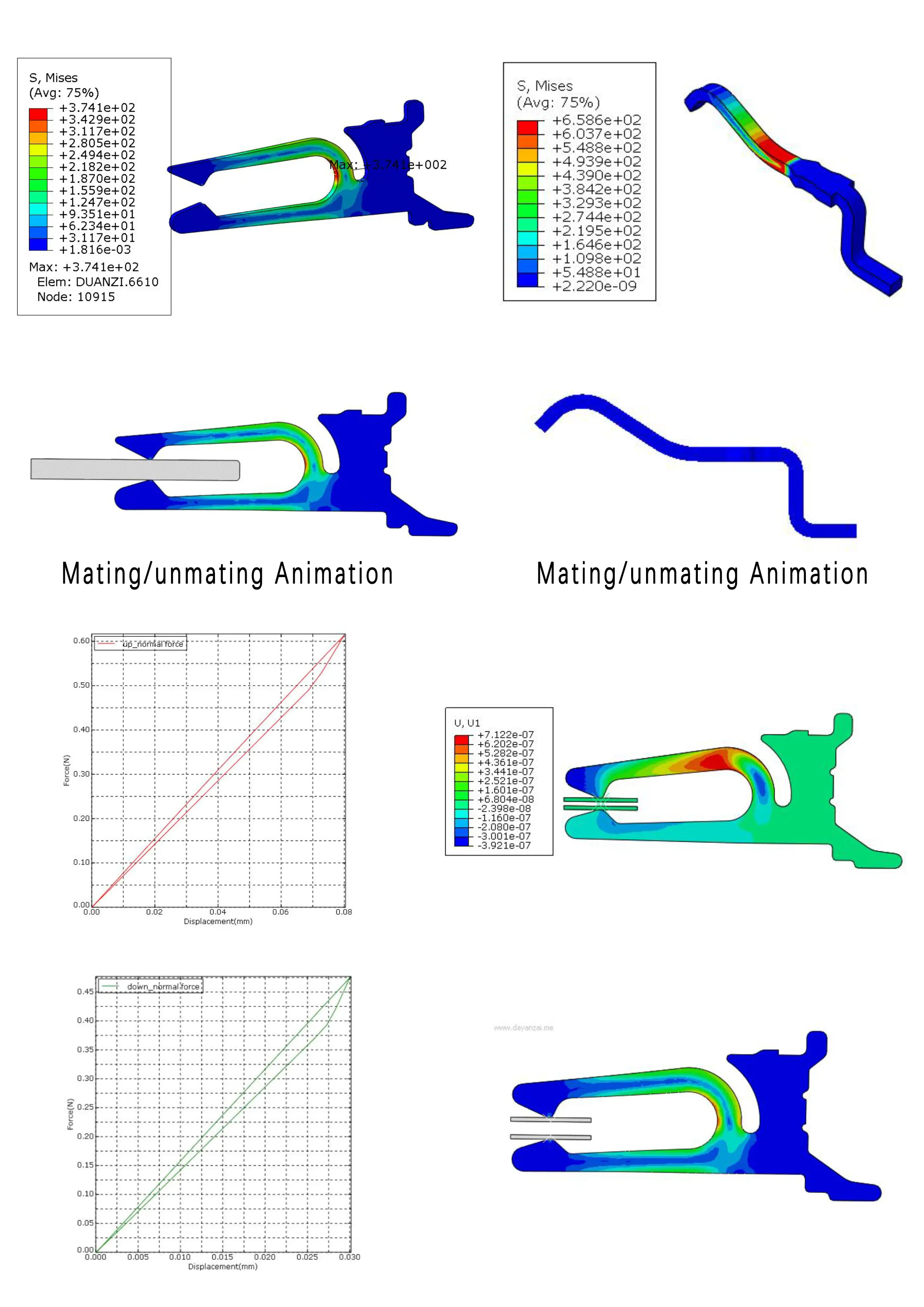

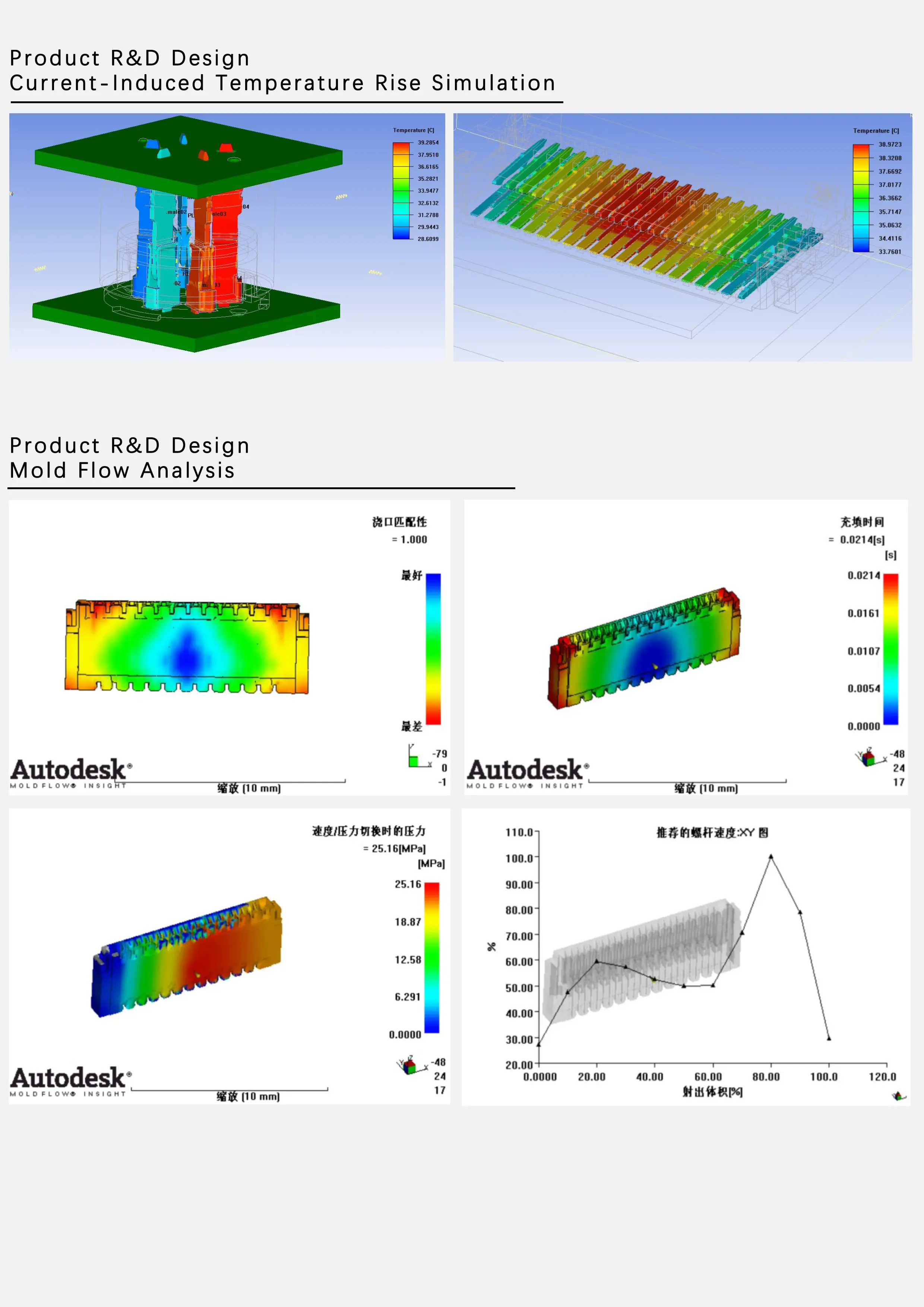

Product R & D

0.5 mm pitch ffc cable
fpc 0.5 mm

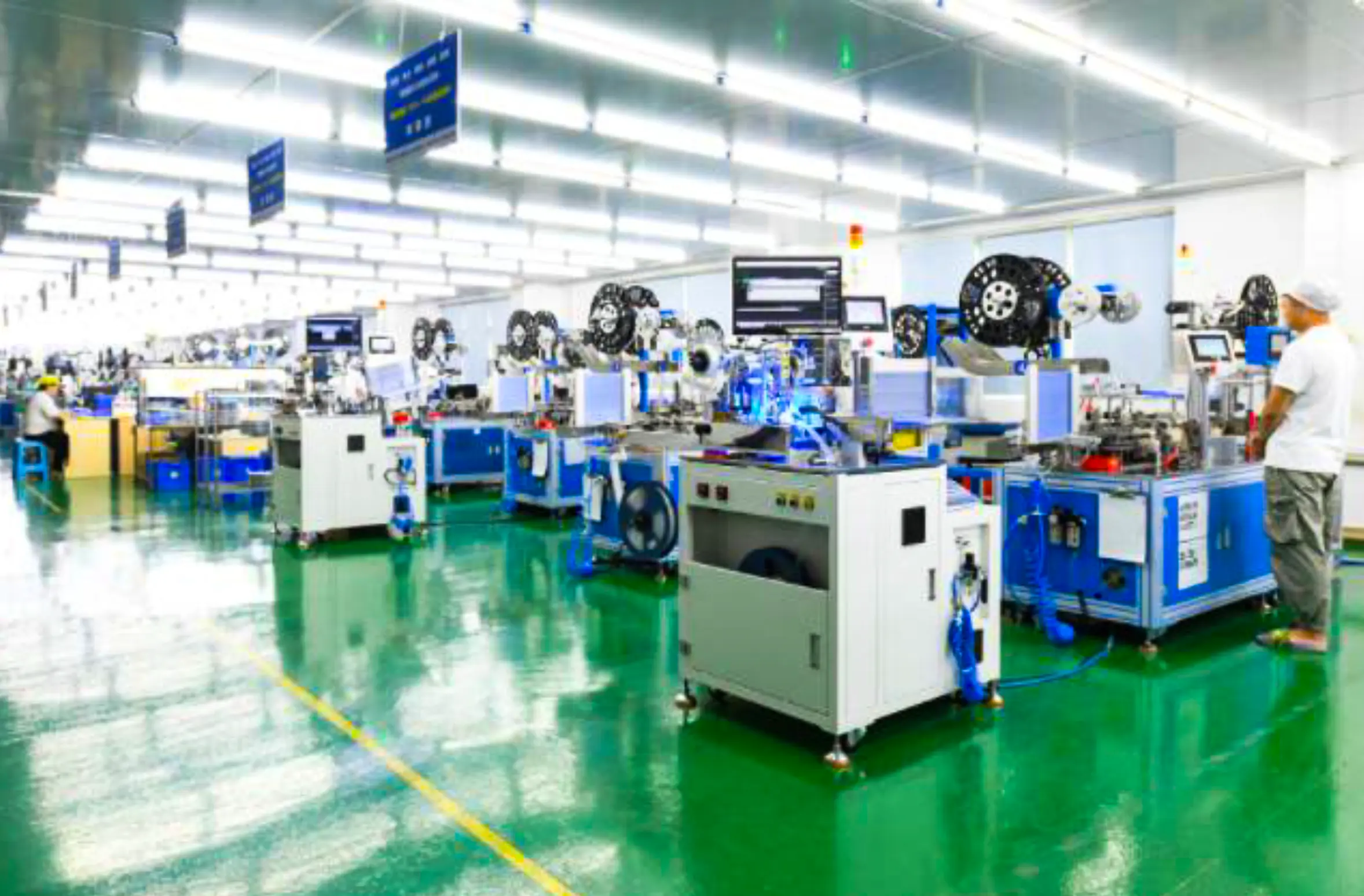

Automated Assembly Testing

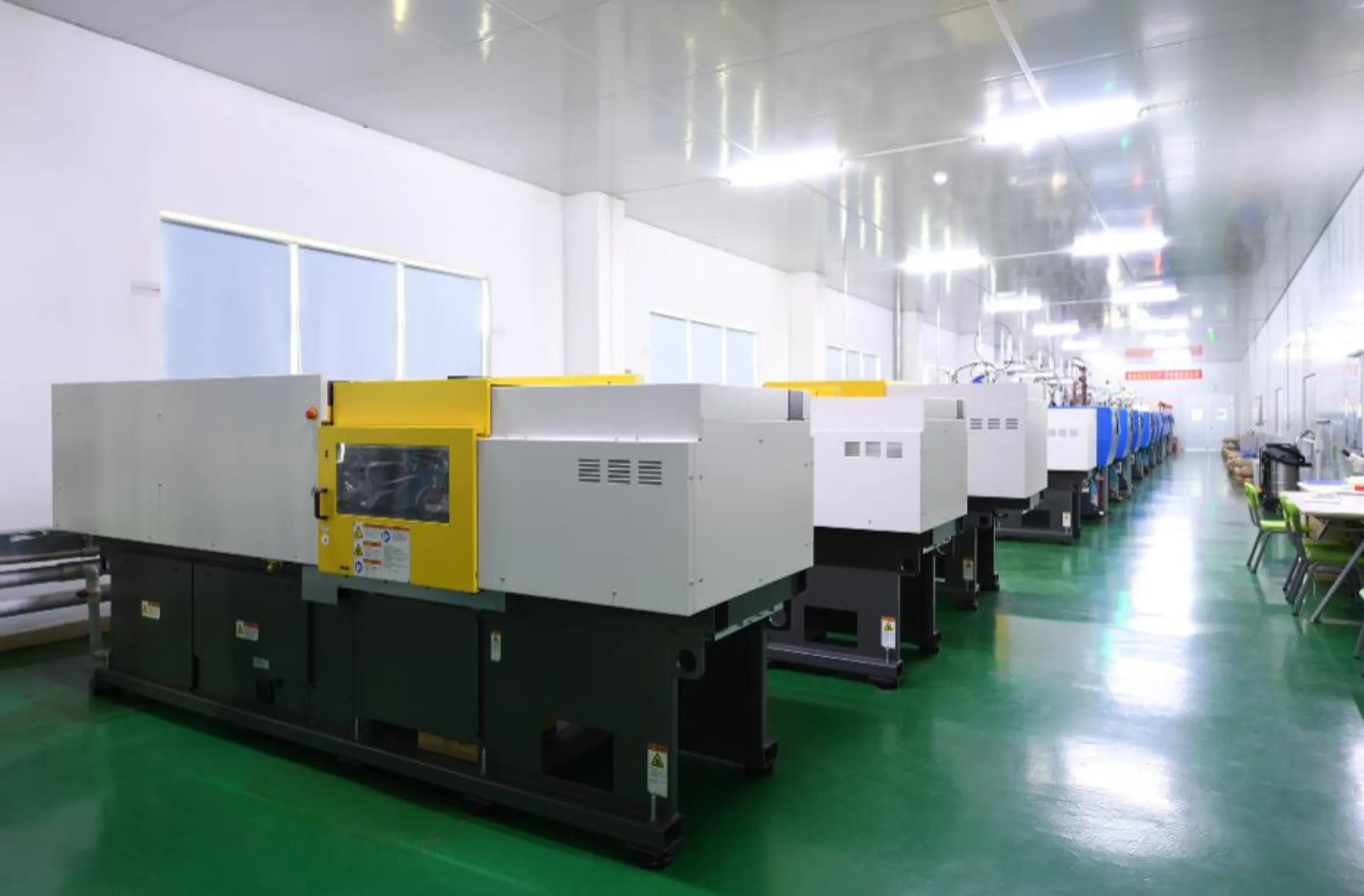

Part Injection Molding

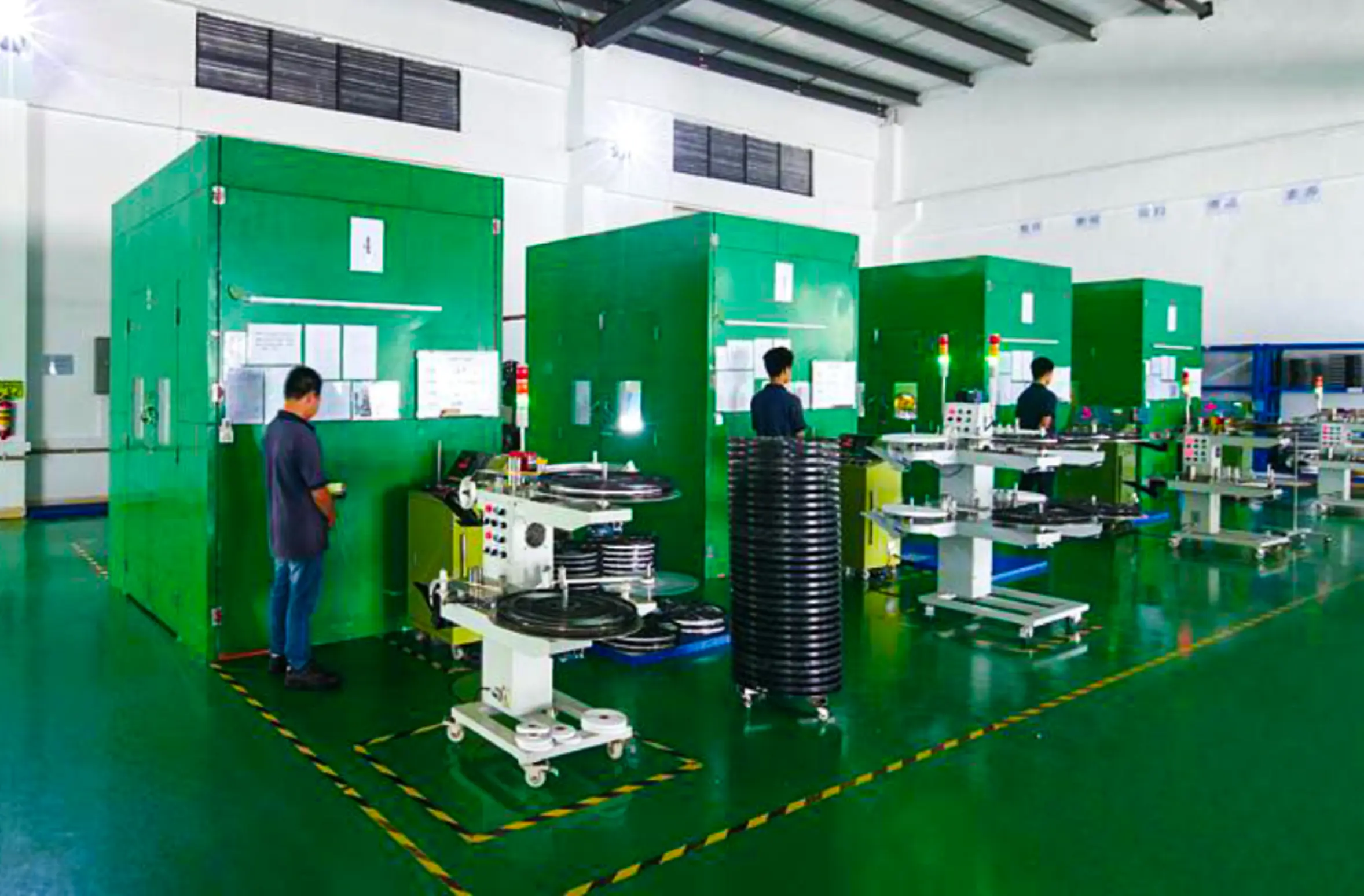

Metal Stamping of Spring Clips
Precision Mold Parts Edm Machining

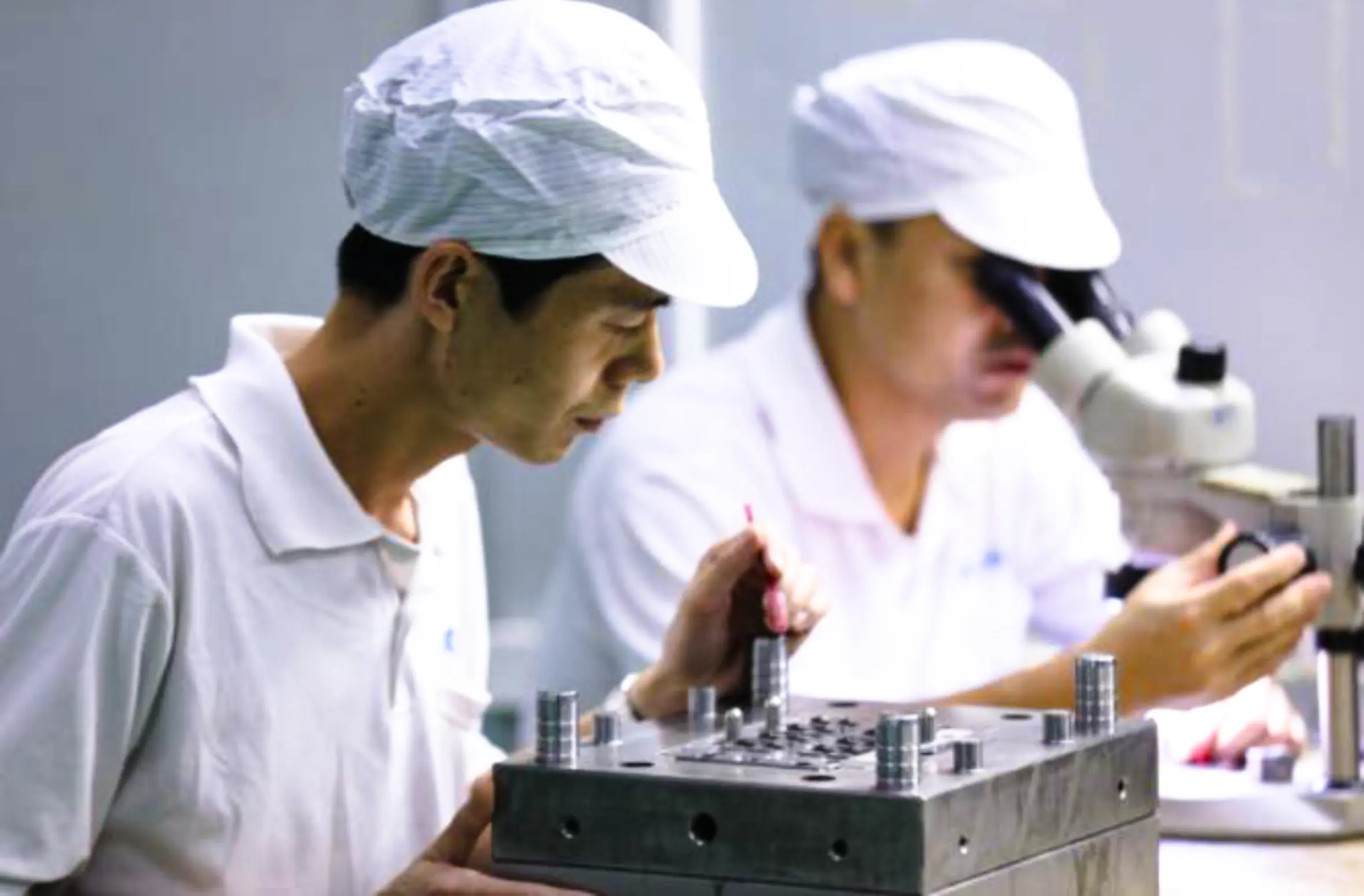

Precision Mold Assembly

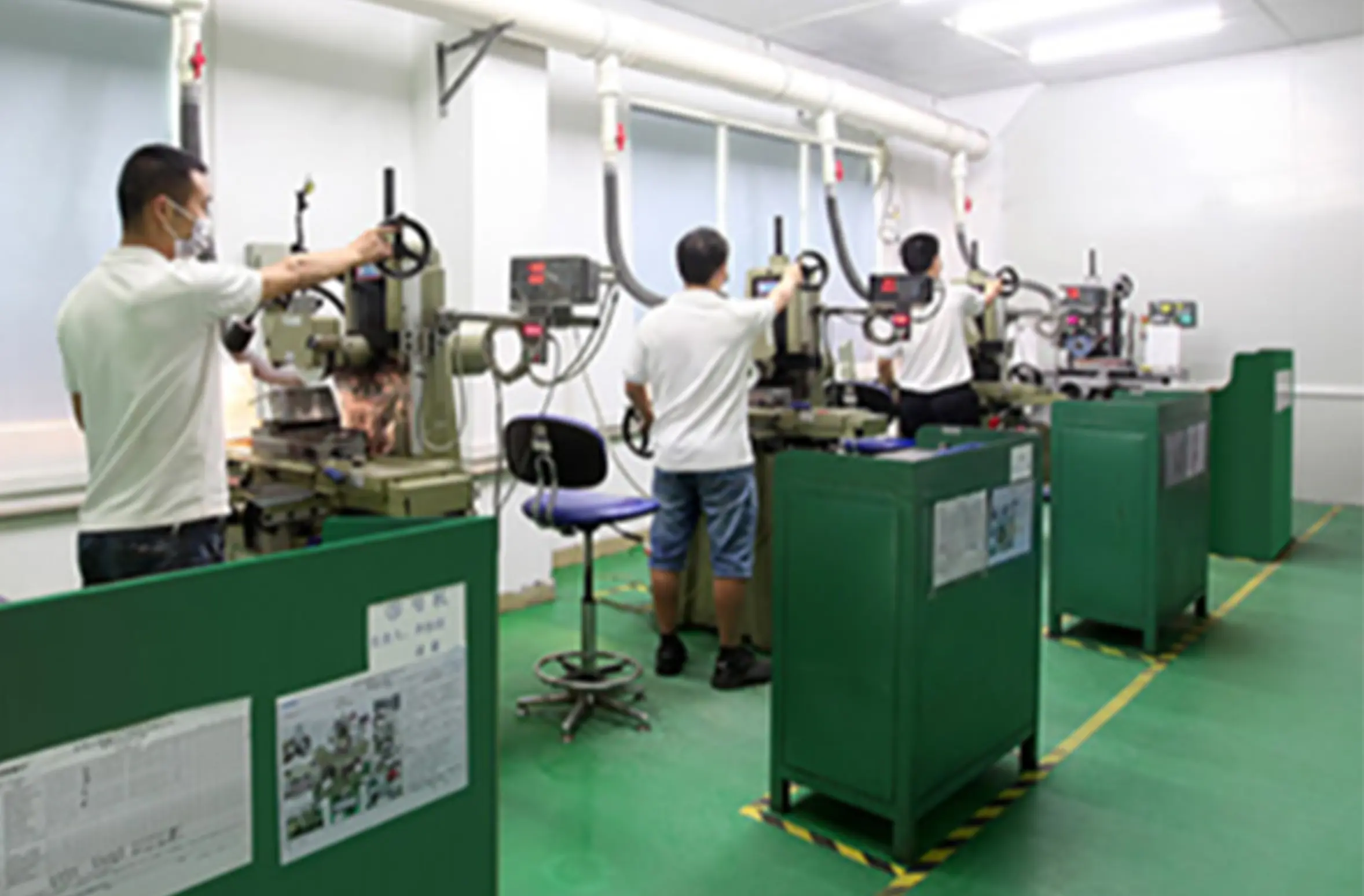

Precision Mold Parts Grinding

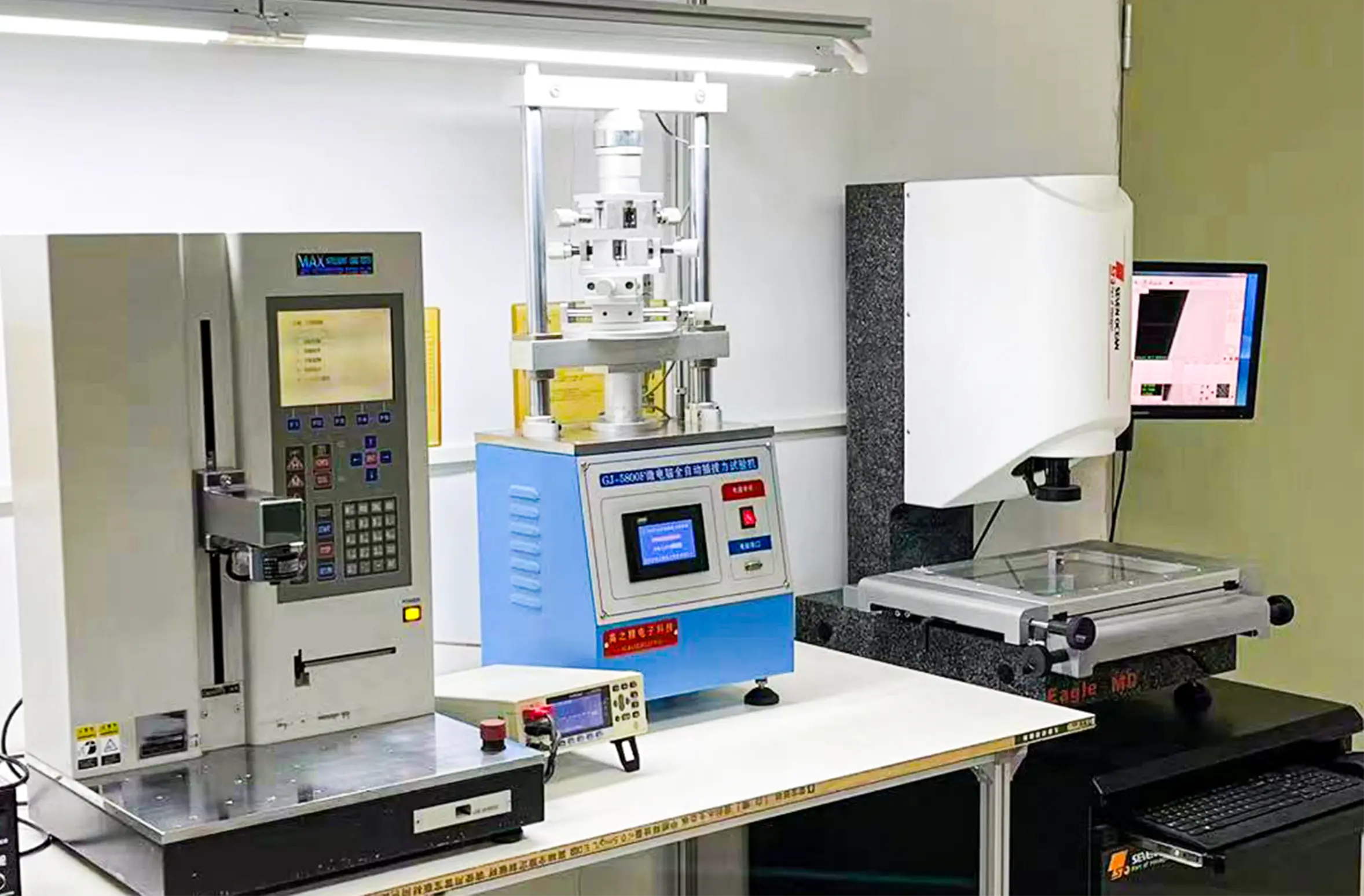

Dimensional And Performance Testing

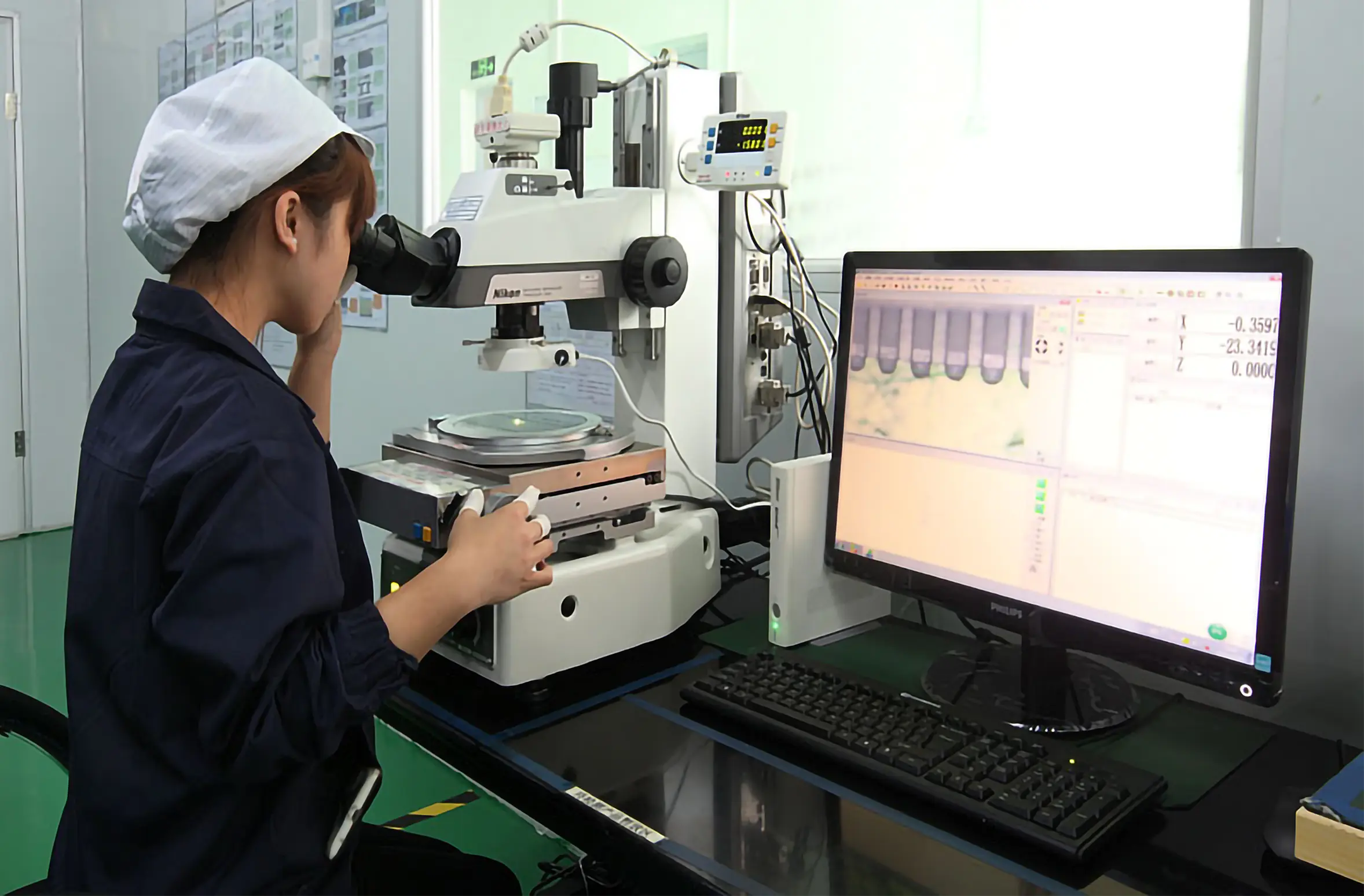

Dimension Inspection

Standard Product Series

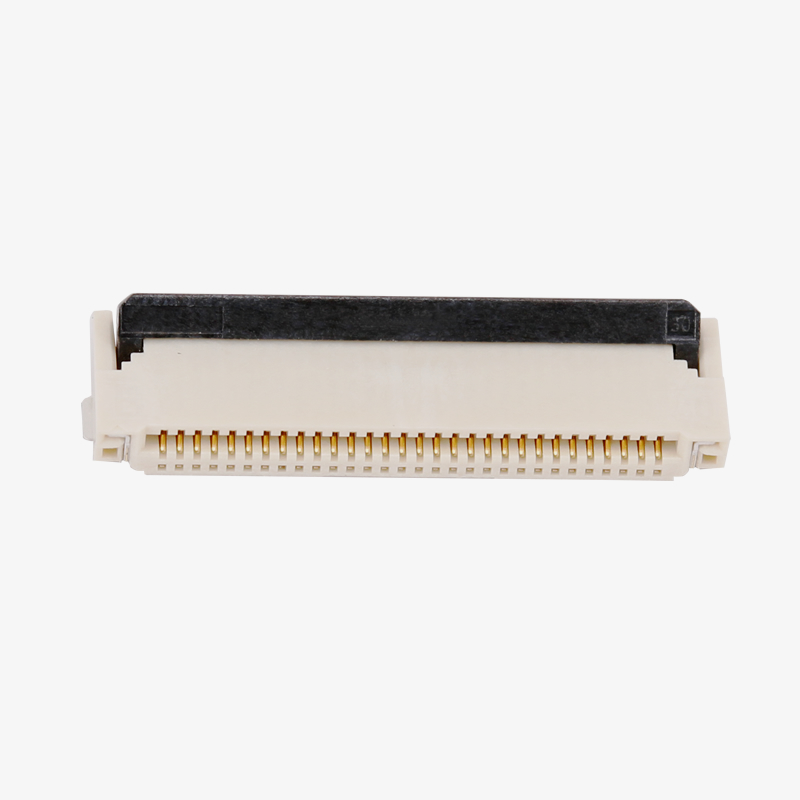

90601 Series
90601 Series

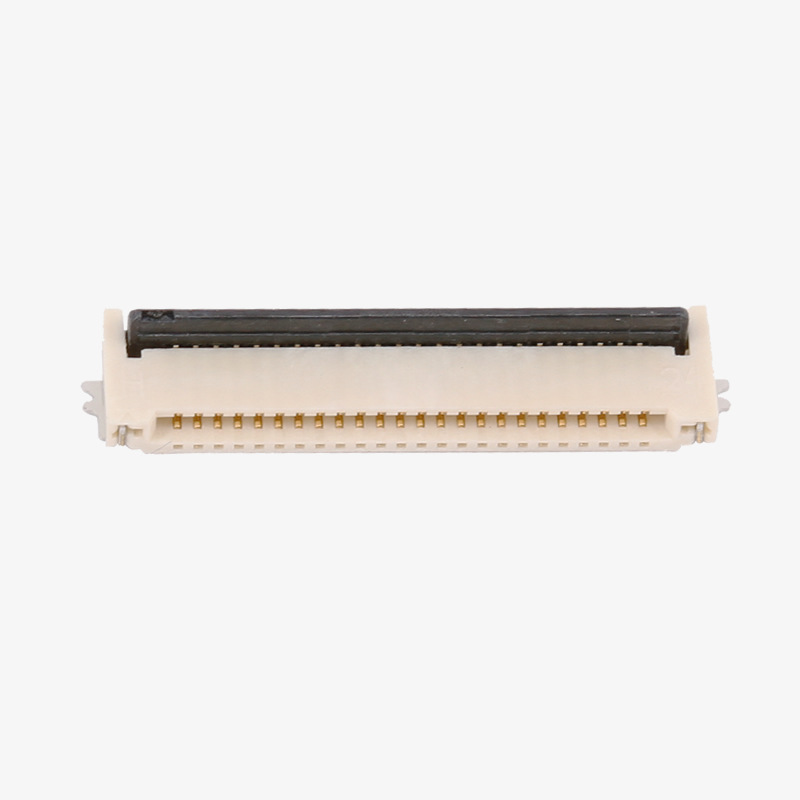

90602 Series
90602 Series

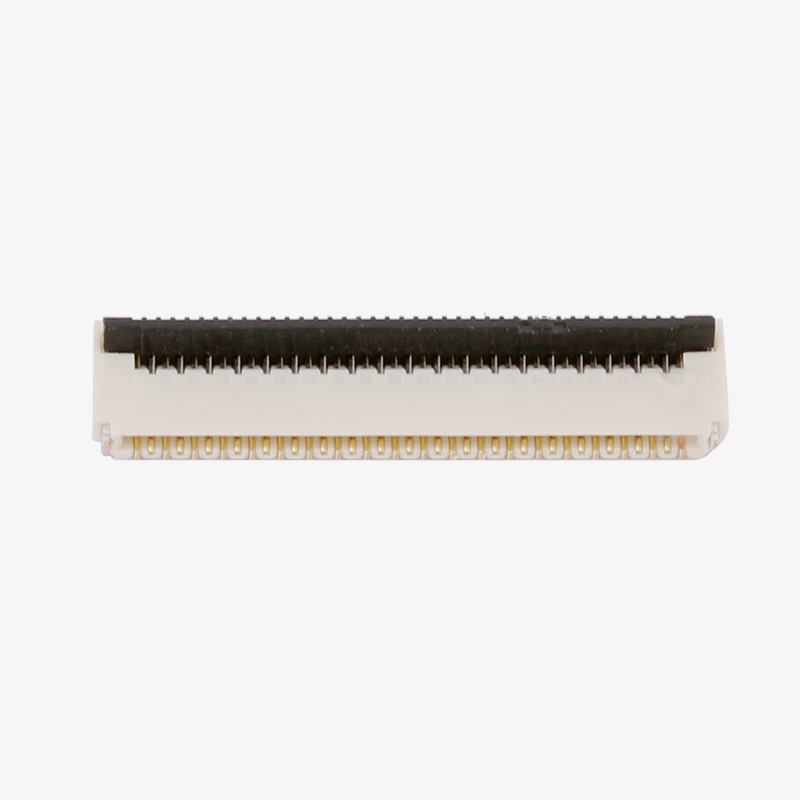

90603 Series
90603 Series

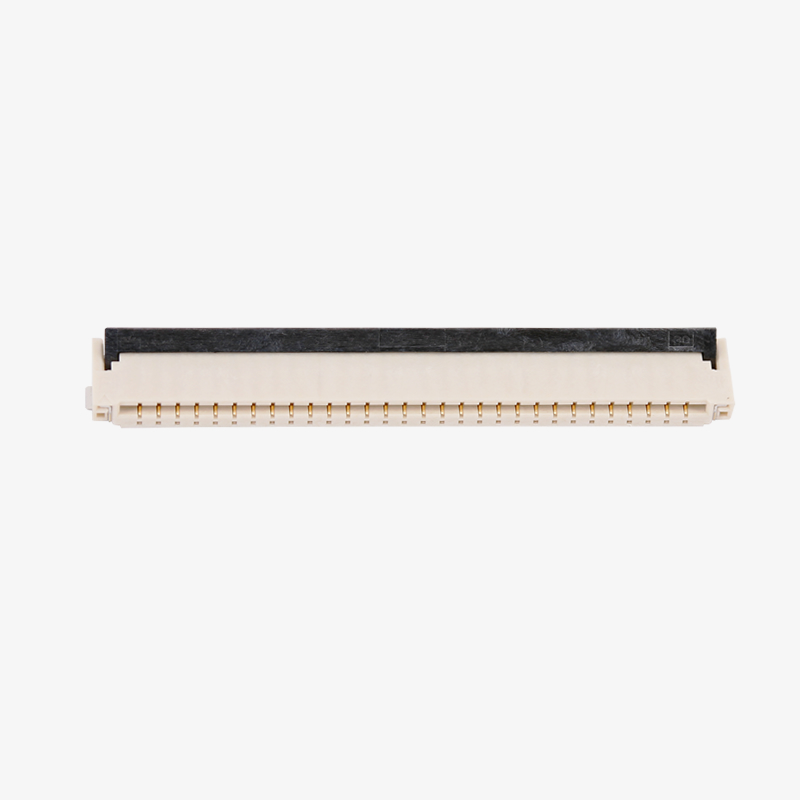

90604 Series
90604 Series

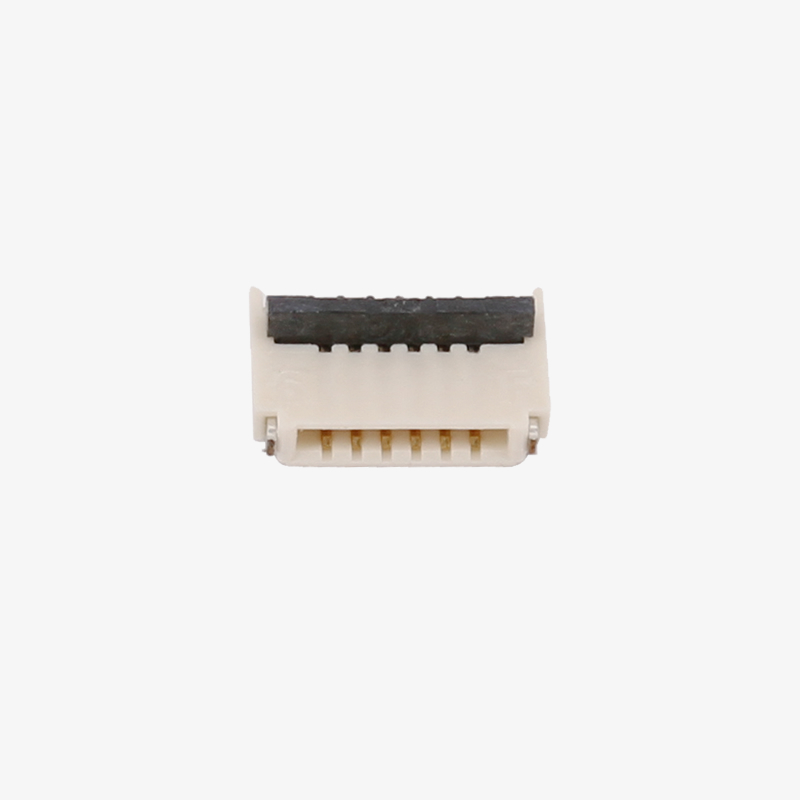

90607 Series
90607 Series

Technical Parameters of Pitch 0.5mm H=1.2mm Dual Contact Side FPC & FFC Connector

ItemsDetails
Material●Housing: LCP Natural UL94V-0
●Cover: PA Black UL94V-0
●Terminal: Copper alloy Plating: Au
●Stator: Copper alloy Plating: Tin
●Contact Type: Double contact
Main Technical Parameters●Operating Temperature: -40 ~ +85℃
●Rating Voltage: 50V(AC/DC)
●Rating Current: 0.5A/PIN
●Contact resistance: 50mΩ Max
●Insulation impendance: 500MΩMin
●Durability: 20 Times/Min
Important Safety Information●Note: Do not close connector without FPC/FFC
Contact Type● Side Contact Type
Installation Method● SMT automatic placement machine+Reflow soldering
Environmental Protection Standard● Comply with EU RoHS and Reach standards


Selection Guide of Pitch 0.5mm H=1.2mm Dual Contact Side FPC & FFC Connector

fpc ffc 0.5 mm

fpc ffc 0.5 mm pitch

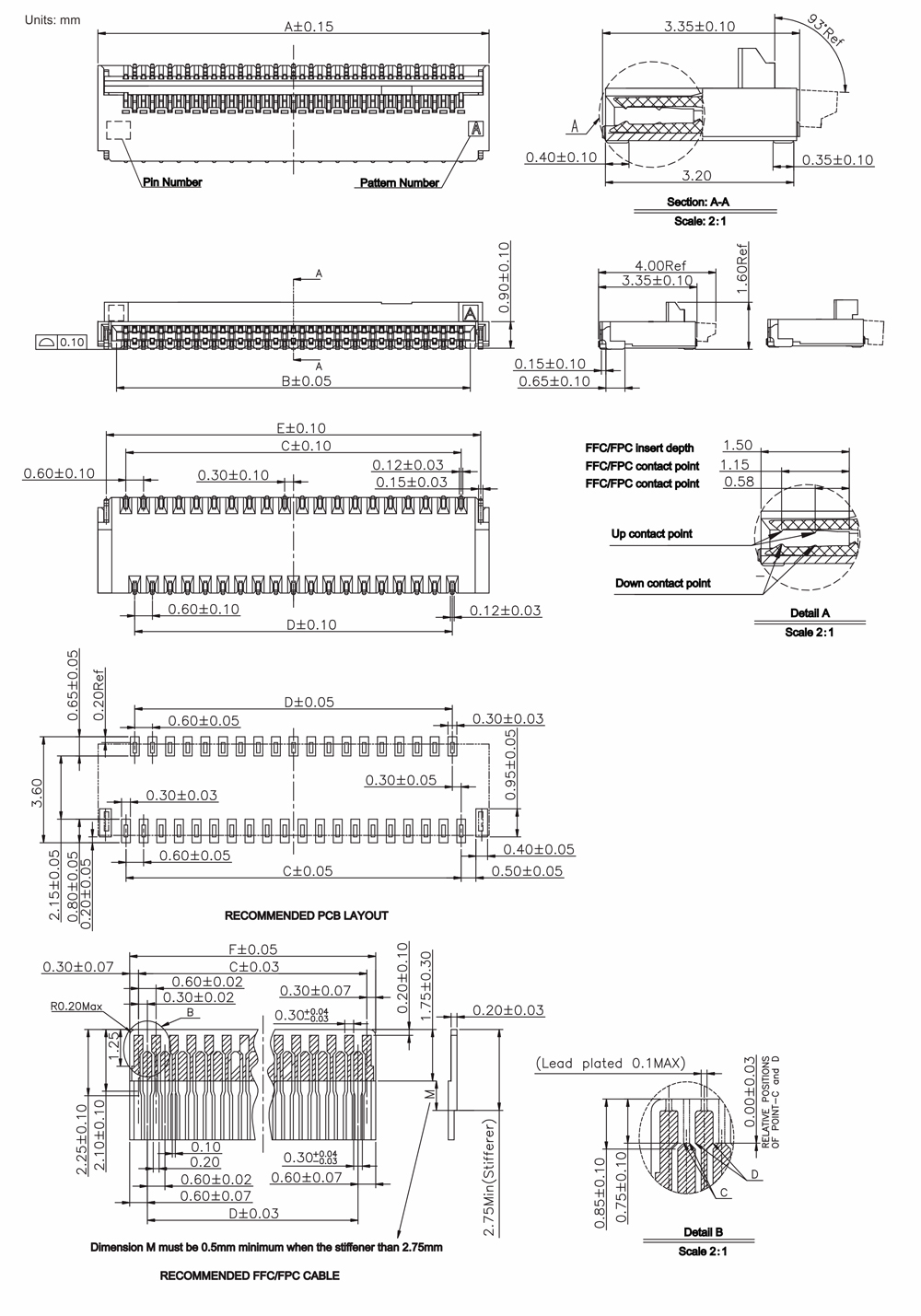

Product ImagePitchheightCatalog Download

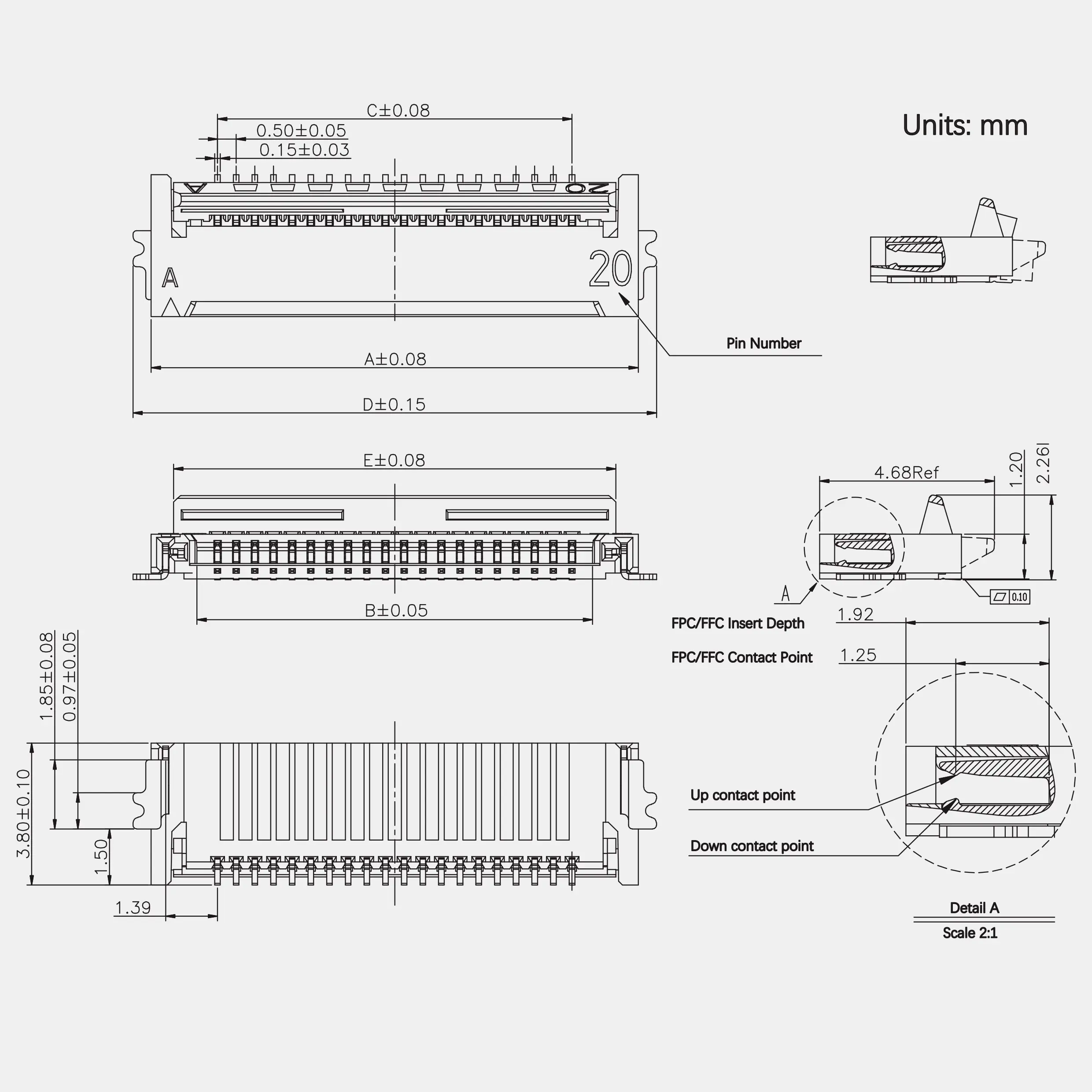

90602 Series Dual Contact Side FPC&FFC Connector

0.50mm1.20mm90602 Series Dual Contact Side FPC & FFC Connector


X-PinPart NumberABCDEFG
4P906020500045.062.551.506.003.854.106.90
5P906020500055.563.052.006.504.354.607.40
6P906020500066.063.552.507.004.855.107.90
7P906020500076.564.053.007.505.355.608.40
8P906020500087.064.553.508.005.856.108.90
10P906020500108.065.554.509.006.857.109.90
12P906020500129.066.555.5010.007.858.1010.90
14P9060205001410.067.556.5011.008.859.1011.90
15P9060205001510.568.057.0011.509.359.6012.40
16P9060205001611.068.557.5012.009.8510.1012.90
20P9060205002013.0610.559.5014.0011.8512.1014.90
24P9060205002415.0612.5511.5016.0013.8514.1016.90
28P9060205002817.0614.5513.5018.0015.8516.1018.90
30P9060205003018.0615.5514.5019.0016.8517.1019.90
32P9060205003219.0616.5515.5020.0017.8518.1020.90
34P9060205003420.0617.5516.5021.0018.8519.1021.90
35P9060205003520.5618.0517.0021.5019.3519.6022.40
36P9060205003621.0618.5517.5022.0019.8520.1022.90
40P9060205004023.0620.5519.5024.0021.8522.1024.90
45P9060205004525.5623.0622.0026.5024.3524.6027.40
50P9060205005028.0625.5524.5029.0026.8527.1029.90
52P9060205005229.0626.5525.5030.0027.8528.1030.90
56P9060205005631.0628.5527.5032.0029.8530.1032.90
60P9060205006033.0630.5529.5034.0031.8532.1034.90

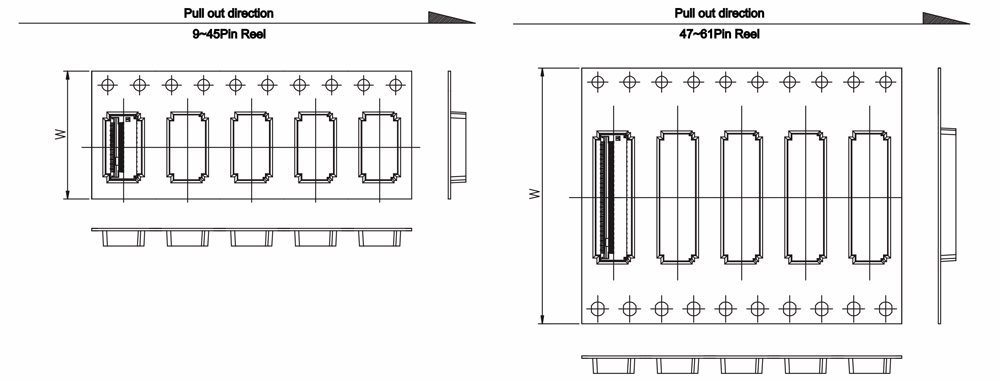

X-PinWPCS/Reel
4-8Pin163000
9-24Pin243000
25-34Pin323000
35-56Pin443000
57-60Pin563000
