In the world of precision electrical connectors, rolling pogo pin represents a significant advancement over traditional spring-loaded designs. RTENCH's rolling ball pogo pins offer superior performance in applications requiring ultra-low contact resistance, high durability, and consistent connectivity across thousands of mating cycles. These innovative connectors utilize a unique rolling contact mechanism that sets them apart from conventional options like straight-pin pogo connectors.

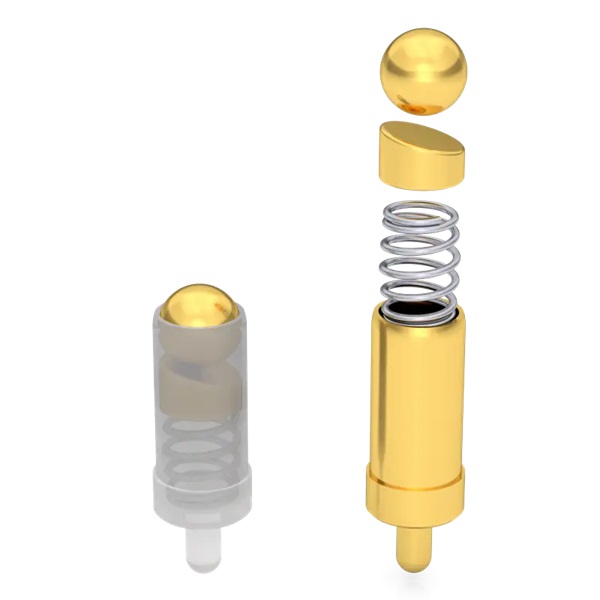

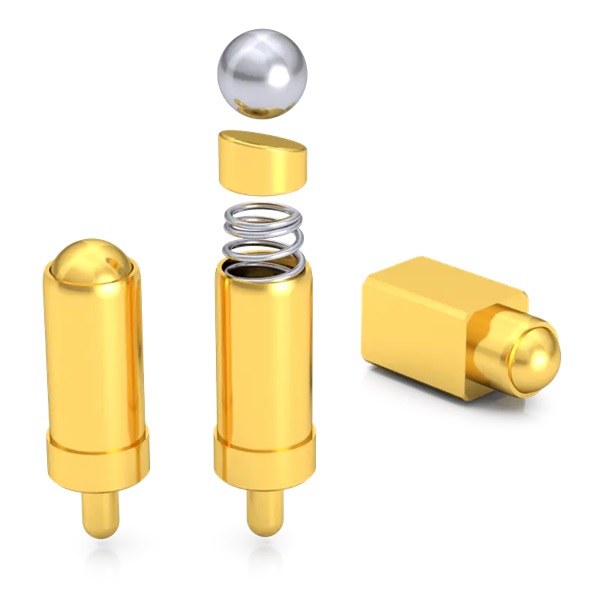

The core innovation of rolling pogo pin lies in their spherical contact mechanism. Unlike standard pogo pins that use a straight-plunger design, rolling pins incorporate a small metal ball that rotates during connection and disconnection. This rotating action provides several key advantages, including self-cleaning properties that prevent oxidation buildup and significantly reduced friction during operation.

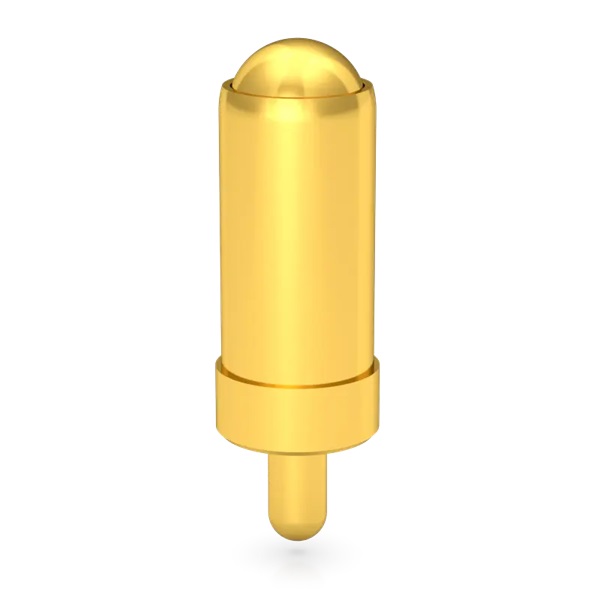

RTENCH's rolling ball pogo pins are engineered with high-precision manufacturing techniques to ensure perfect spherical geometry and smooth rotation. This technology allows for more consistent electrical connections across extended use, particularly in environments where traditional connectors might suffer from premature wear or inconsistent contact resistance.
The fundamental difference between rolling pogo pin and conventional designs comes down to their contact mechanics. Traditional pogo pins rely on direct linear contact between the plunger and receptacle, which can lead to localized wear patterns over time. Rolling pins, by contrast, distribute contact wear evenly across the rolling ball surface.
In practice, rolling pogo pin demonstrates superior performance in high-cycle applications, maintaining low contact resistance beyond 100,000 mating cycles in some configurations. They're especially beneficial in automated test equipment and production jigs where connectors must withstand constant insertion and removal. However, for simple, low-cycle applications, traditional pogo pins may remain a cost-effective solution.
Rolling pogo pin excels in precision applications where reliability is paramount. In semiconductor testing equipment, they provide exceptional signal integrity for wafer probing, where even minor variations in contact resistance can affect measurement accuracy. Medical device manufacturers utilize these connectors in diagnostic equipment that demands hundreds of connections per day without performance degradation.
The consumer electronics industry has adopted rolling pogo pin for high-end wearable devices and docking stations, where their smooth operation enhances user experience and extends product lifespan. Industrial automation systems also benefit from these connectors in robotic interface applications where consistent connectivity is critical in dusty or vibration-prone environments.

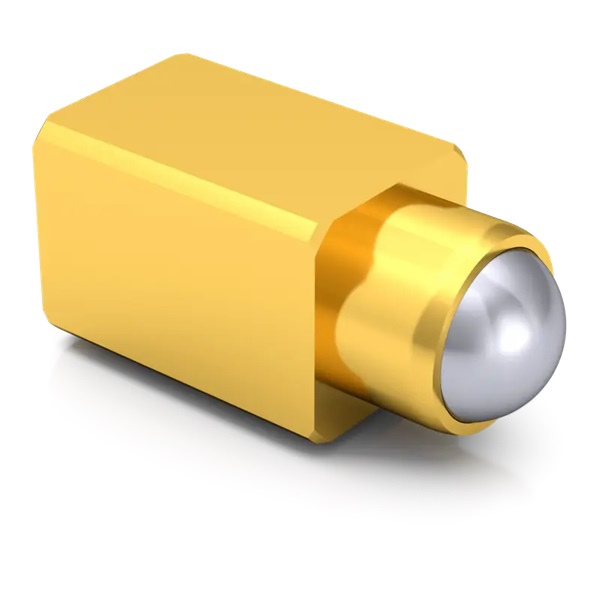

RTENCH's rolling pogo pin is available in various configurations to meet specific application requirements. Current ratings typically range from 0.5A to 3A, with options for higher current capacity in specialized designs. The spherical contact mechanism maintains exceptionally stable contact resistance, often below 10mΩ, even after repeated use.
Engineers should consider several factors when specifying rolling pogo pin, including contact force requirements (typically 50-300gf), operating temperature range, and plating options (often gold over nickel for optimal conductivity and corrosion resistance). The compact size of these connectors makes them particularly suitable for space-constrained designs while maintaining robust performance characteristics.
Choosing the optimal rolling pogo pin configuration requires careful evaluation of both mechanical and electrical requirements. For high-frequency signal applications, versions with optimized impedance characteristics may be necessary. In harsh environments, sealed variants provide protection against dust and moisture ingress.
The expected actuation force plays a crucial role in selection, as different spring rates can accommodate various mating force requirements without compromising contact reliability. RTENCH offers design consultation services to help engineers match the ideal rolling pogo pin configuration to their specific application needs, ensuring optimal performance and longevity.
Rolling pogo pin from RTENCH represents the cutting edge of spring-loaded connector technology, offering unmatched reliability and performance in demanding interconnect applications. Their innovative rolling contact mechanism addresses many limitations of traditional pogo pins, particularly in high-cycle and precision measurement scenarios. For more information about RTENCH's rolling ball pogo pin solutions, including detailed specifications and customization options, visit our product page or contact our technical support team for application-specific guidance.
