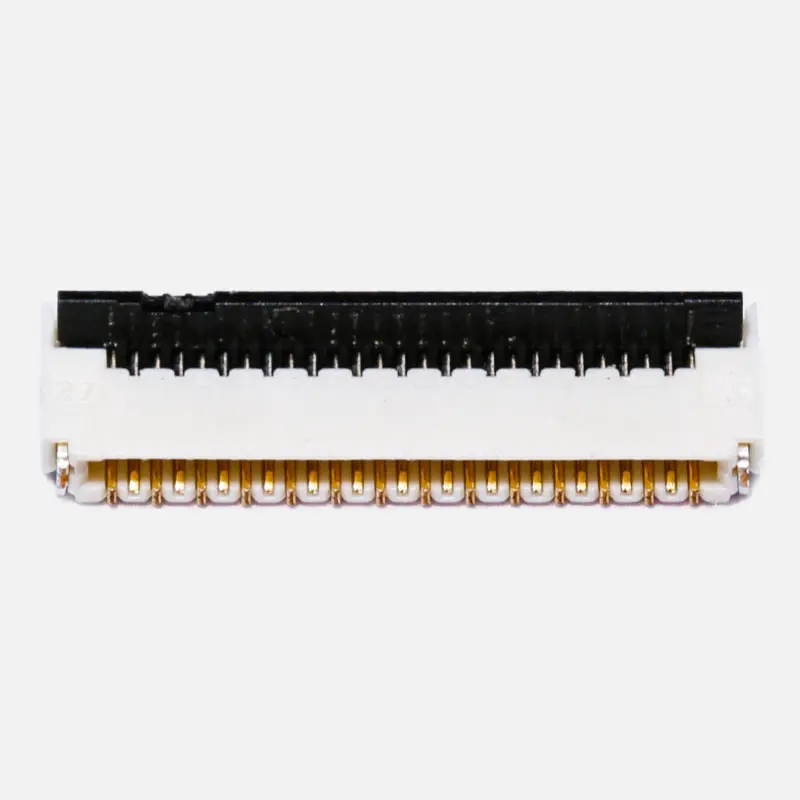

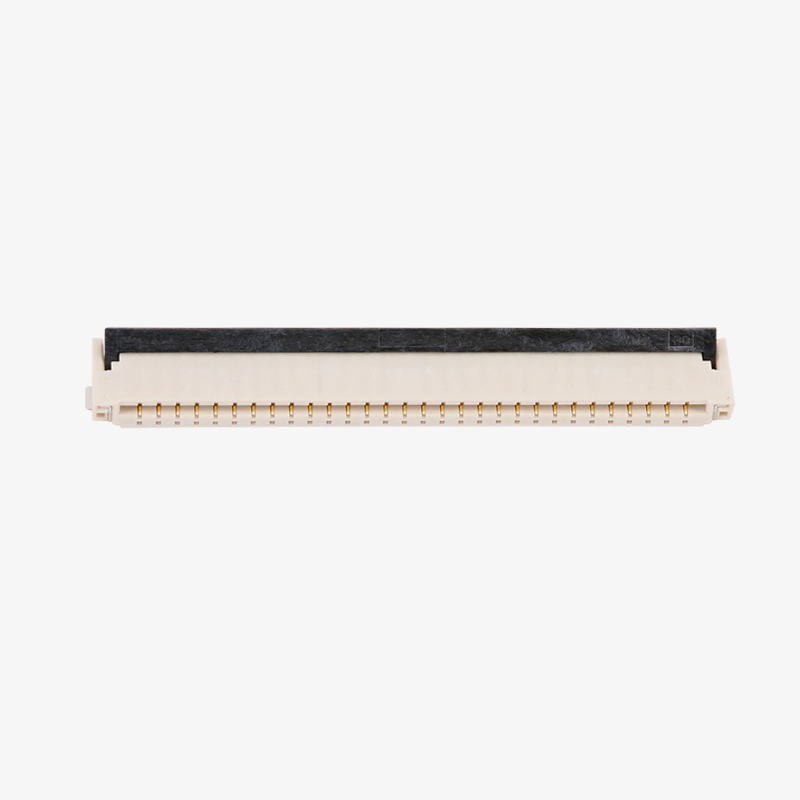

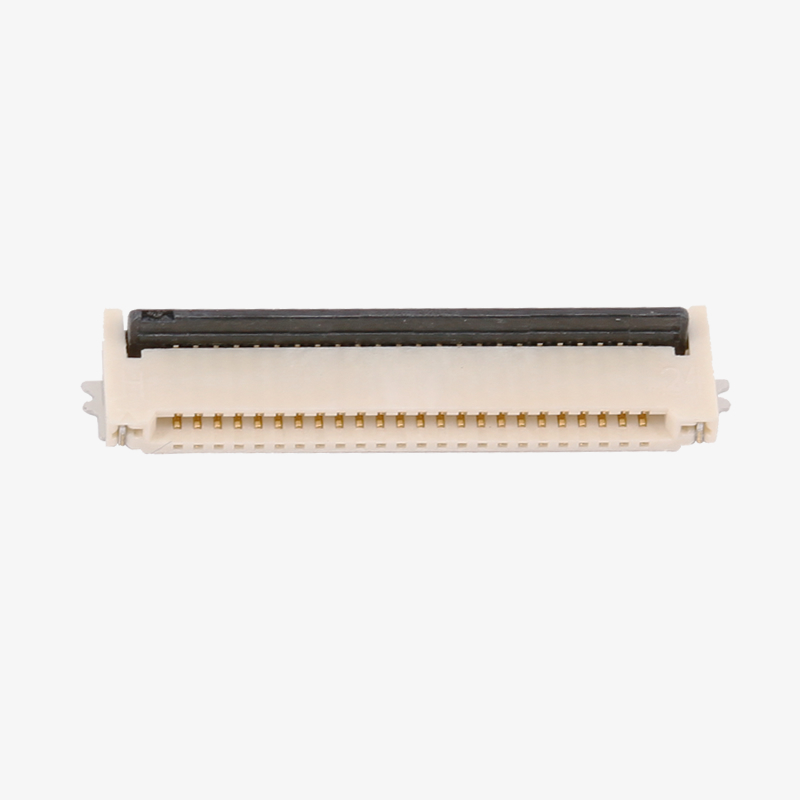

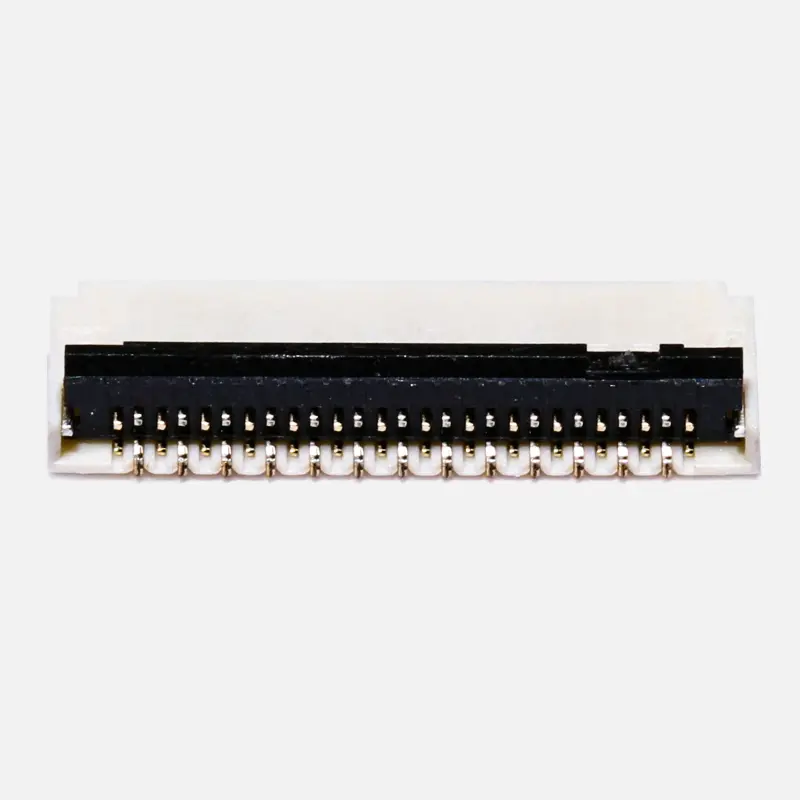

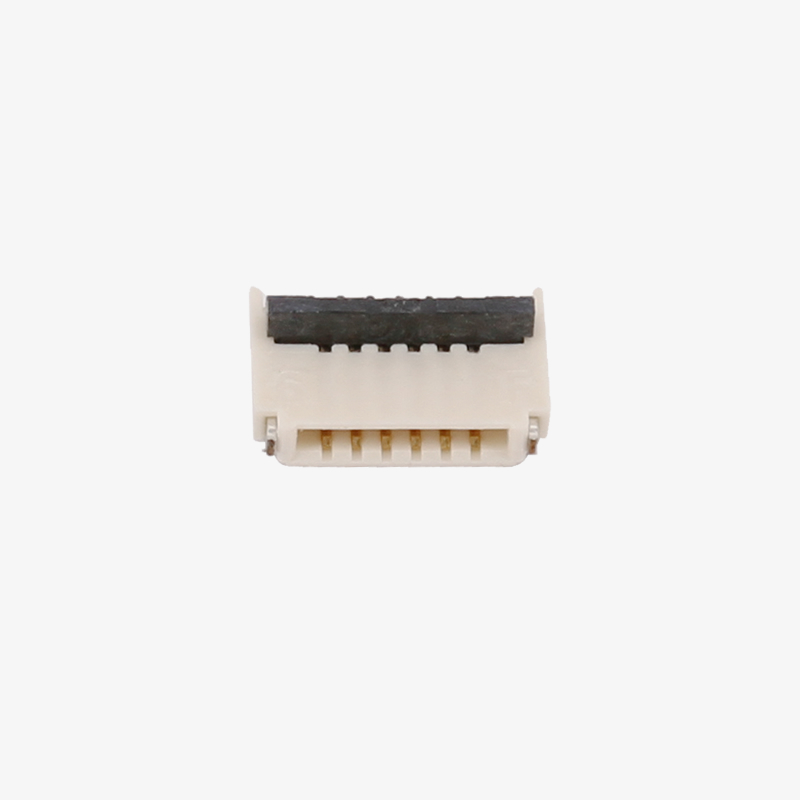

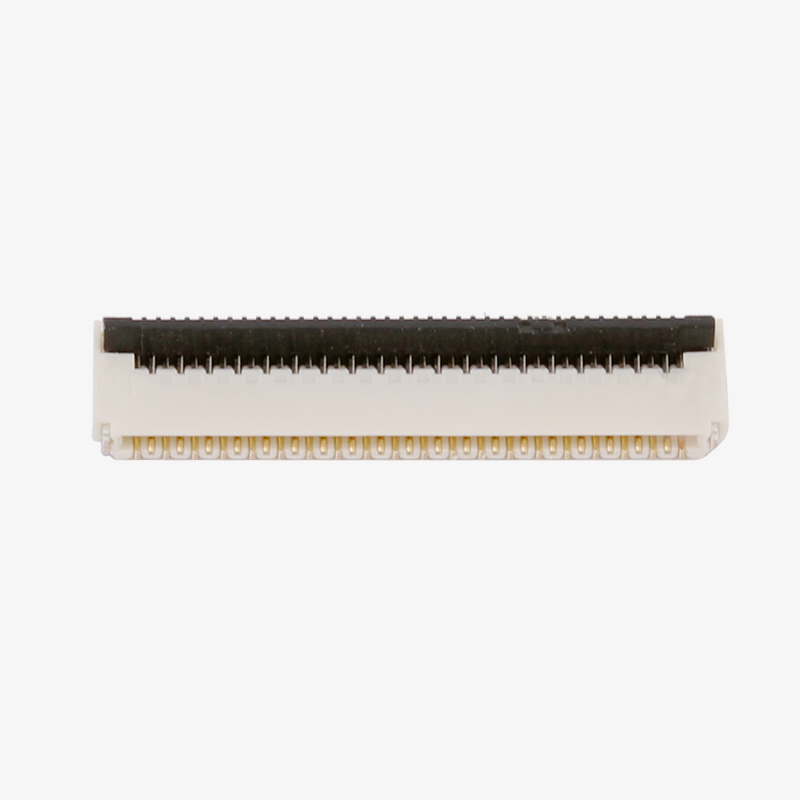

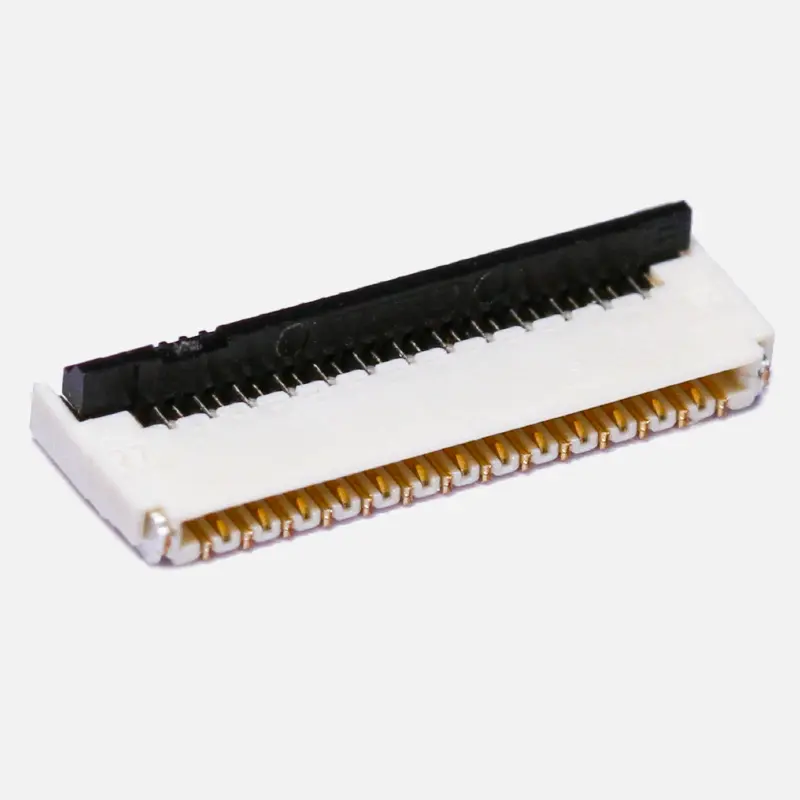

Pitch 0.3mm H=0.9mm Dual Contact Side FPC & FFC Connector

Main Technical Parameters

Operating Temperature: -40 ~ +85℃

Rating Voltage: 30V (AC/DC)

Rating Current: 0.2A/PIN

Contact resistance: 100mΩ Max

Insulation impendance: 50MΩMin

Durability: 20 Times/Min


Material

Housing: LCP Natural UL94V-0

Cover: PA Black UL94V-0

Terminal: Copper alloy Plating: Au

Stator: Copper alloy Plating: Tin

Contact Type: Double contact


Important Safety Information

Note: Do not close connector without FPC/FFC


Environmental Protection Standard

Comply with the EU RoHS, Reach

PDF Download

Product Details
Technical Parameters
Product Selection Guide

Product Details

The 90603 series FPC/FFC connectors are precision electronic connectors with the following features:


1. 0.3mm Pitch: This fine pitch allows for more connection points within a limited space, making it especially suitable for electronic devices with compact structures and high-density PCB layouts.


2. Plastic Height of 0.9mm: The connectors' low profile is conducive to designing thinner electronic devices, reducing the overall volume, and is suitable for designs that pursue extreme slimness.


3. Double-sided Contact: The fpc/ ffc connectors are designed for contact on both the top and bottom sides, enhancing the reliability of the connections.


4. Rear Locking Mechanism: The connectors feature a rear locking system that ensures the FPC or FFC flex cables are securely inserted and locked in place, preventing them from dislodging during use.


5. Installation Method: Fixed by SMD (Surface Mount Device) reflow soldering. When installing the FPC/FFC connectors, first insert the FPC or FFC flex cable into the connector slot, then press down the latch to secure it.


Due to their high compactness and reliability, Rtench 90603 series connectors are suitable for a variety of electronic devices that require miniaturization and highly reliable connections, such as smartphones, tablets, laptops, wearable devices, and other consumer electronics. The design of these connectors aims to simplify the assembly process while ensuring long-term stable connection performance.

Product R & D

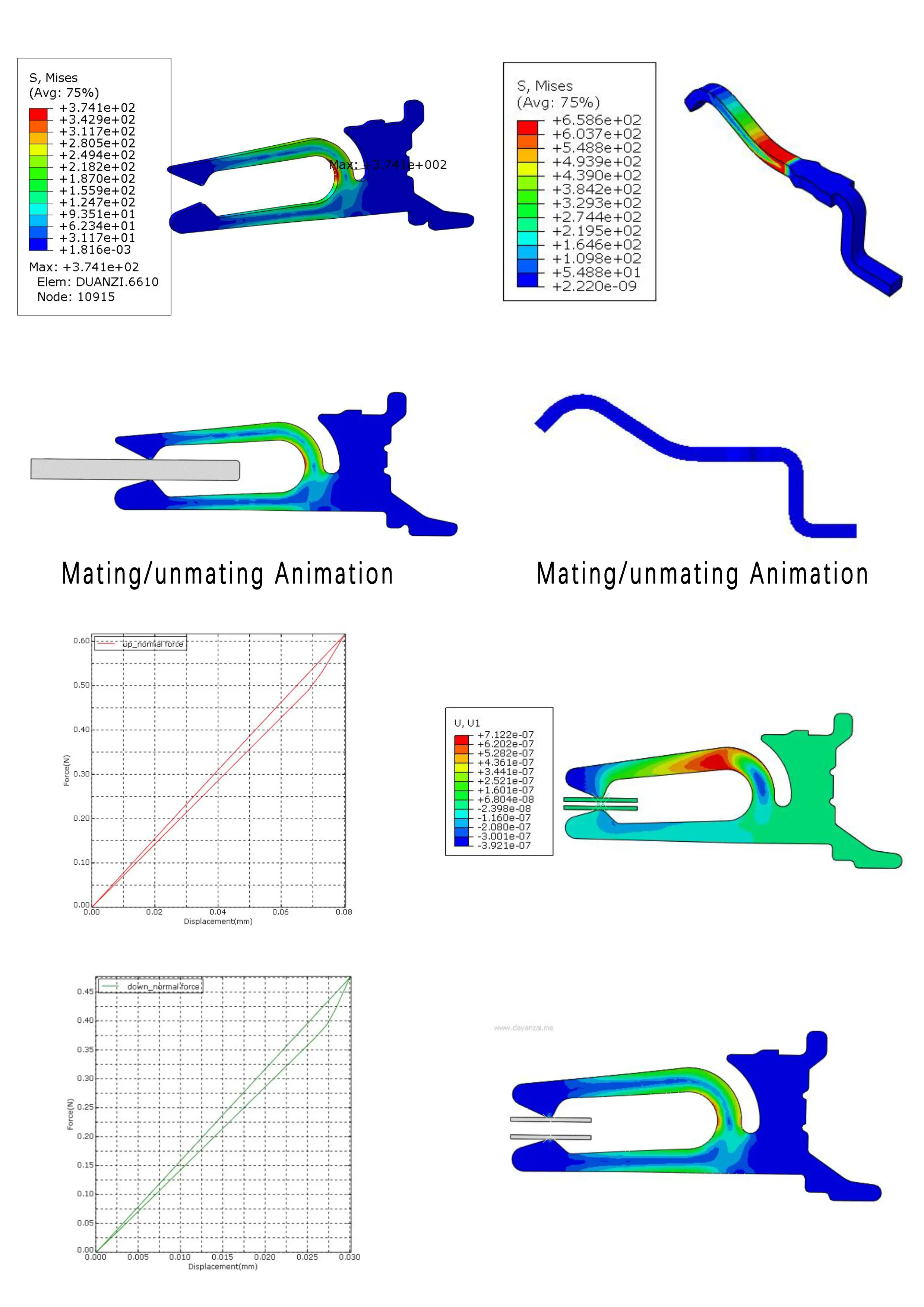

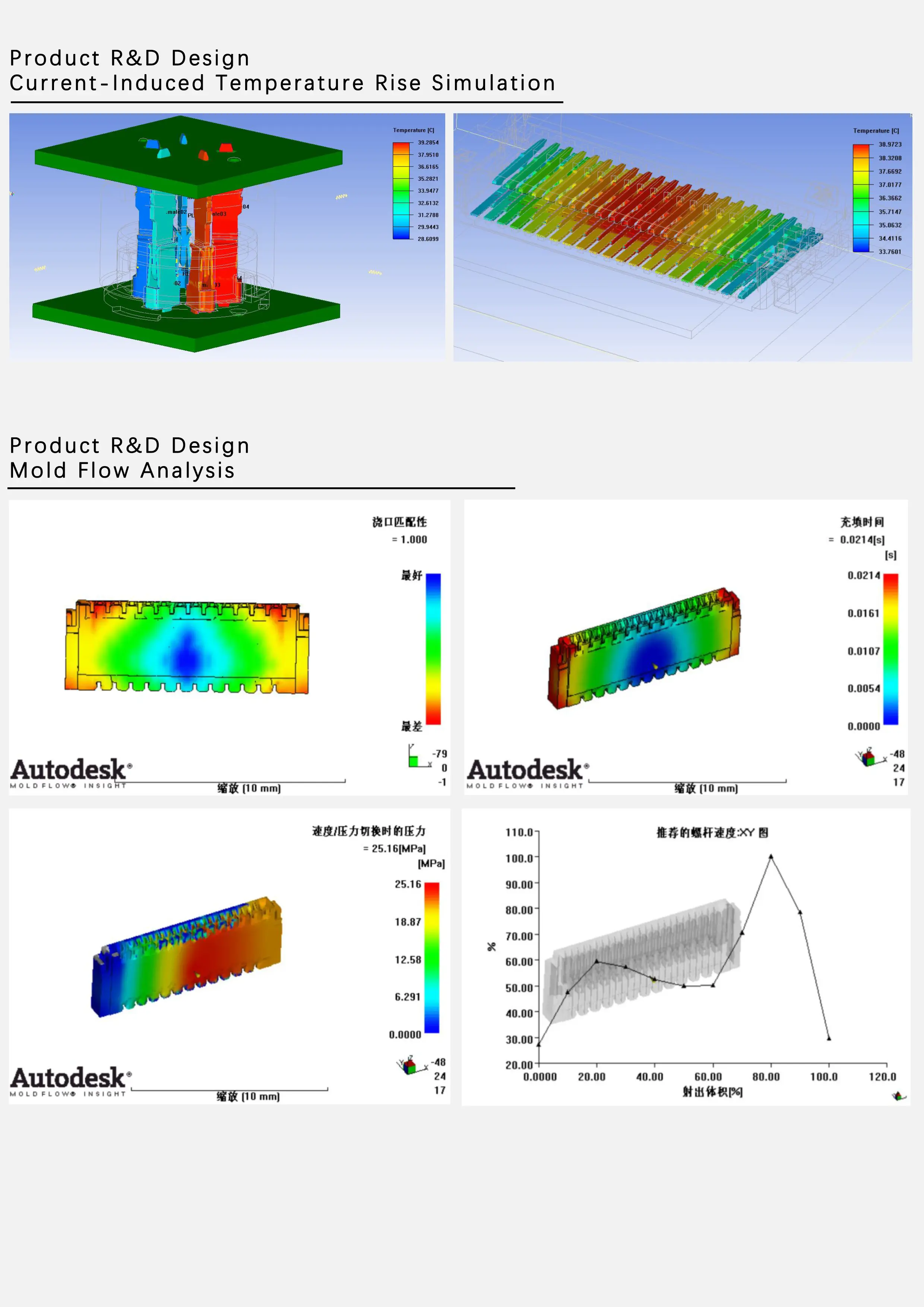

Mechanical Simulation Analysis
Mechanical Simulation Analysis

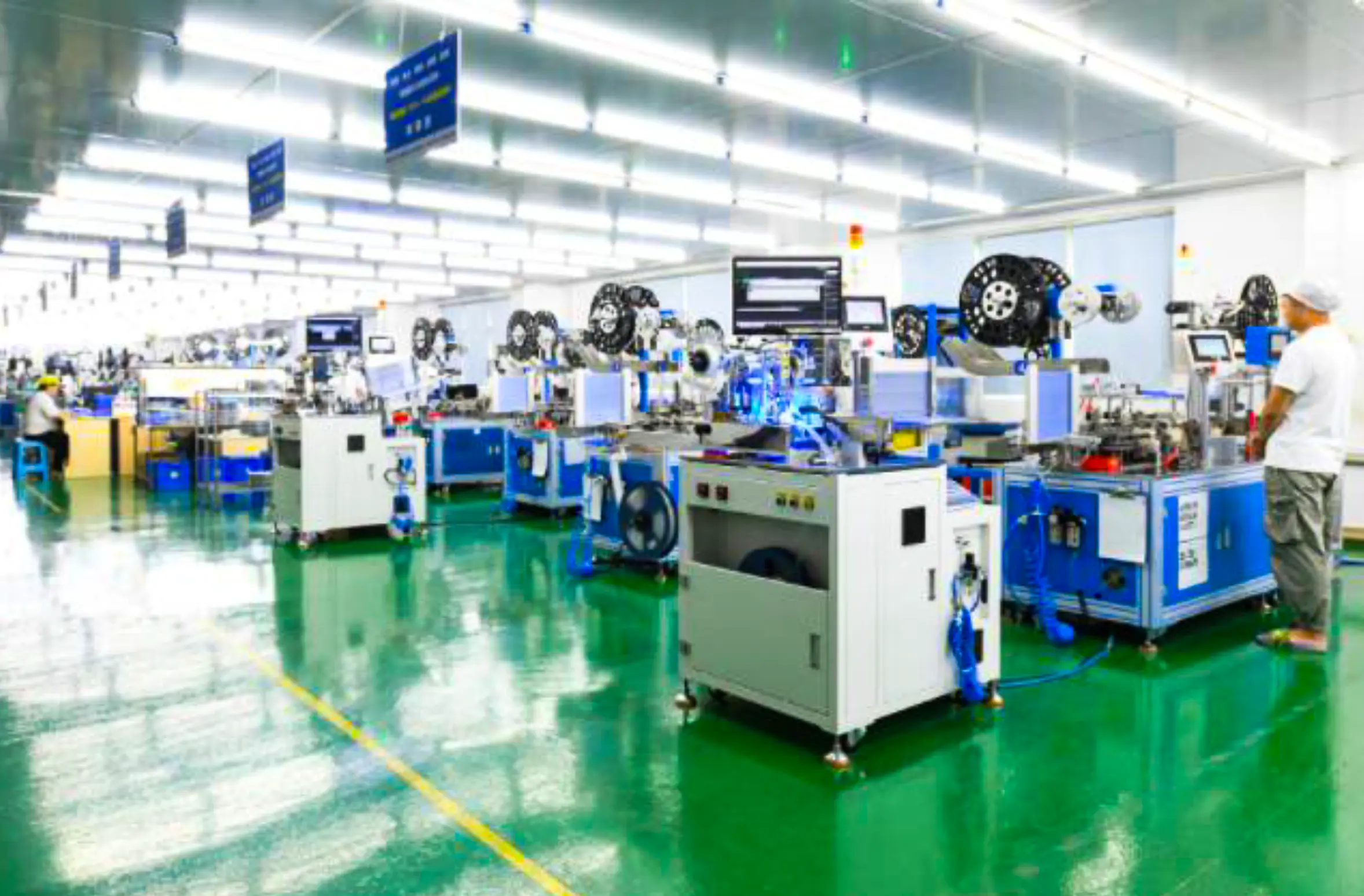

Automated Assembly Testing

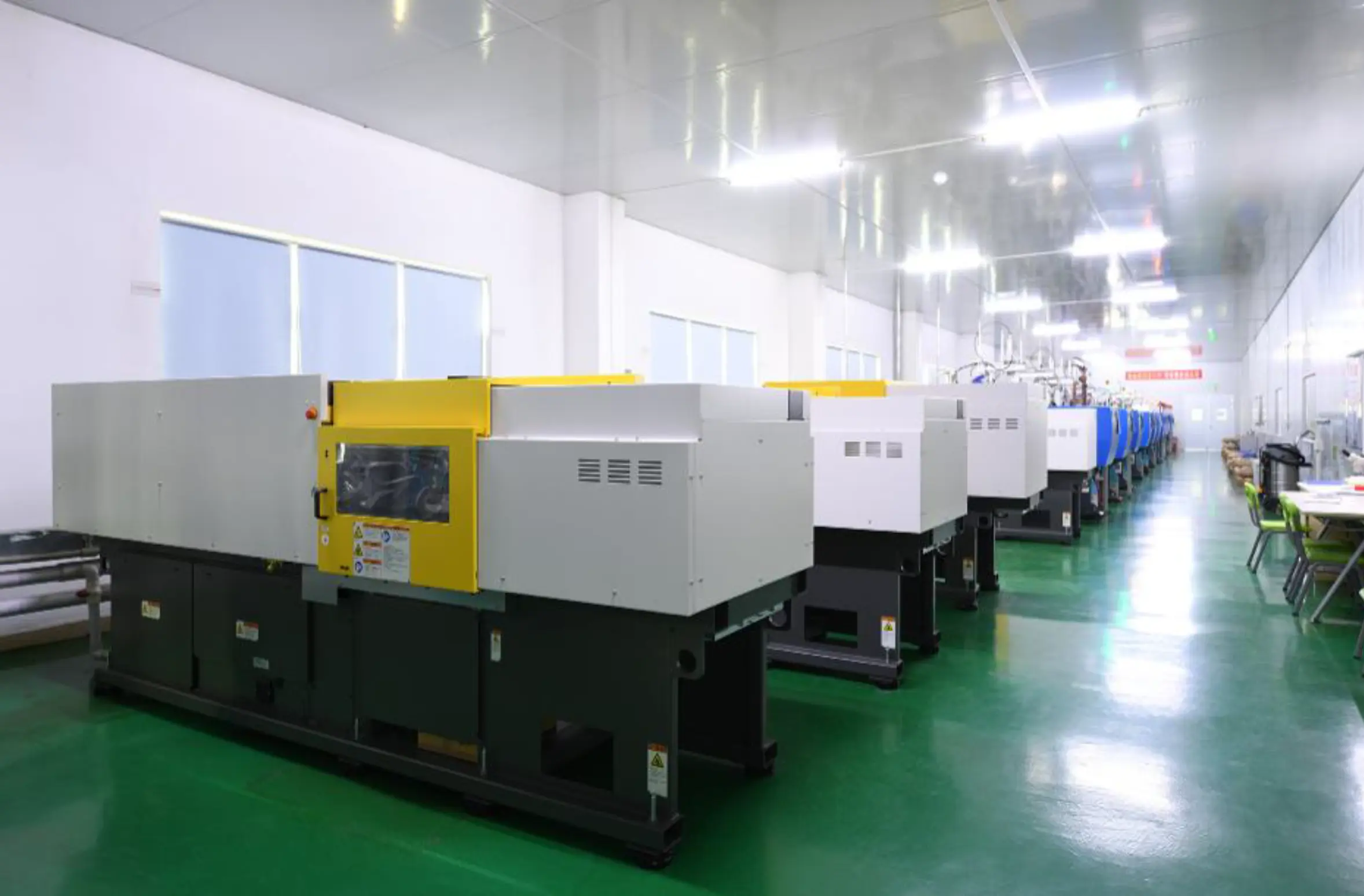

Part Injection Molding

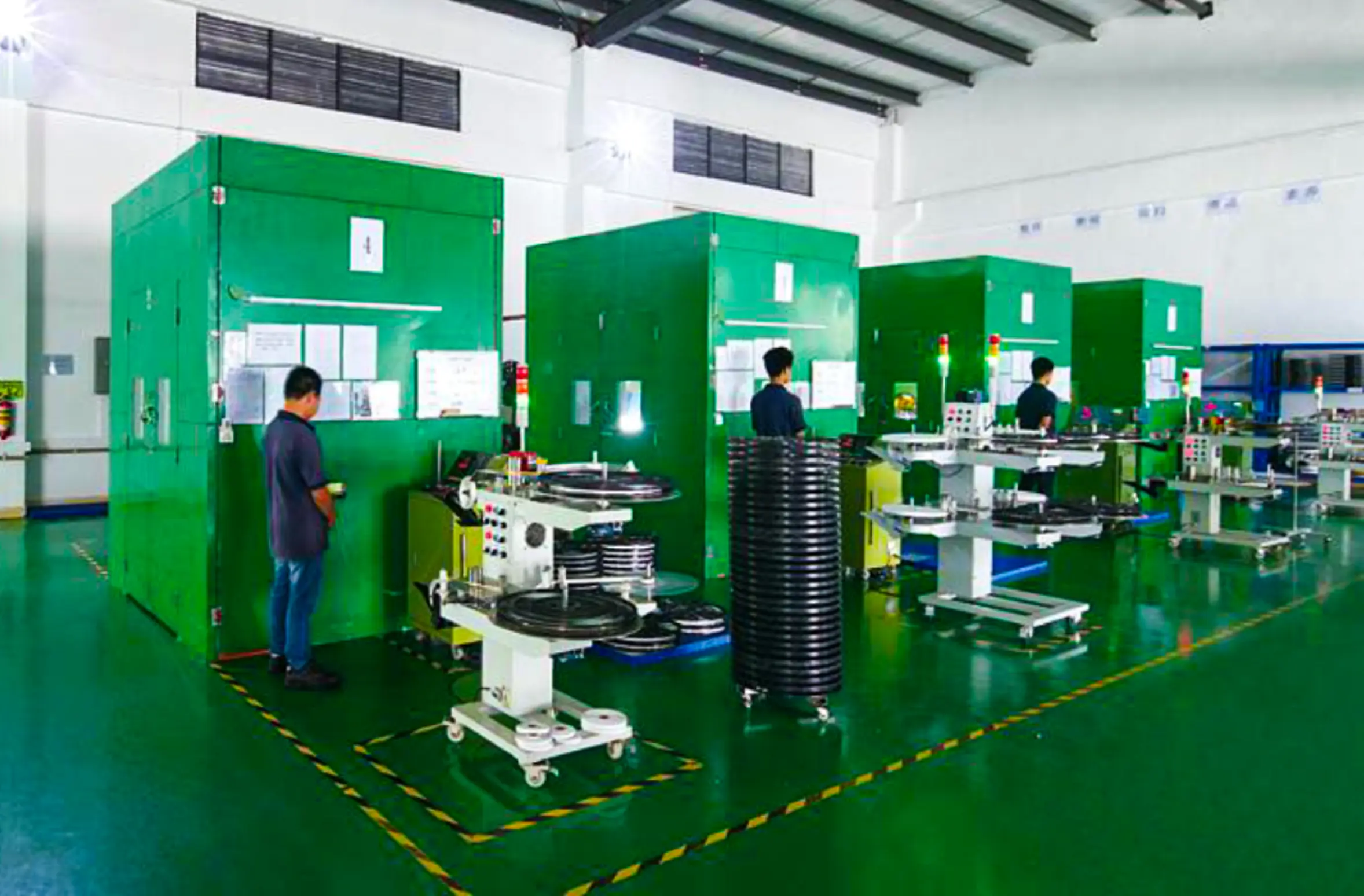

Metal Stamping of Spring Clips

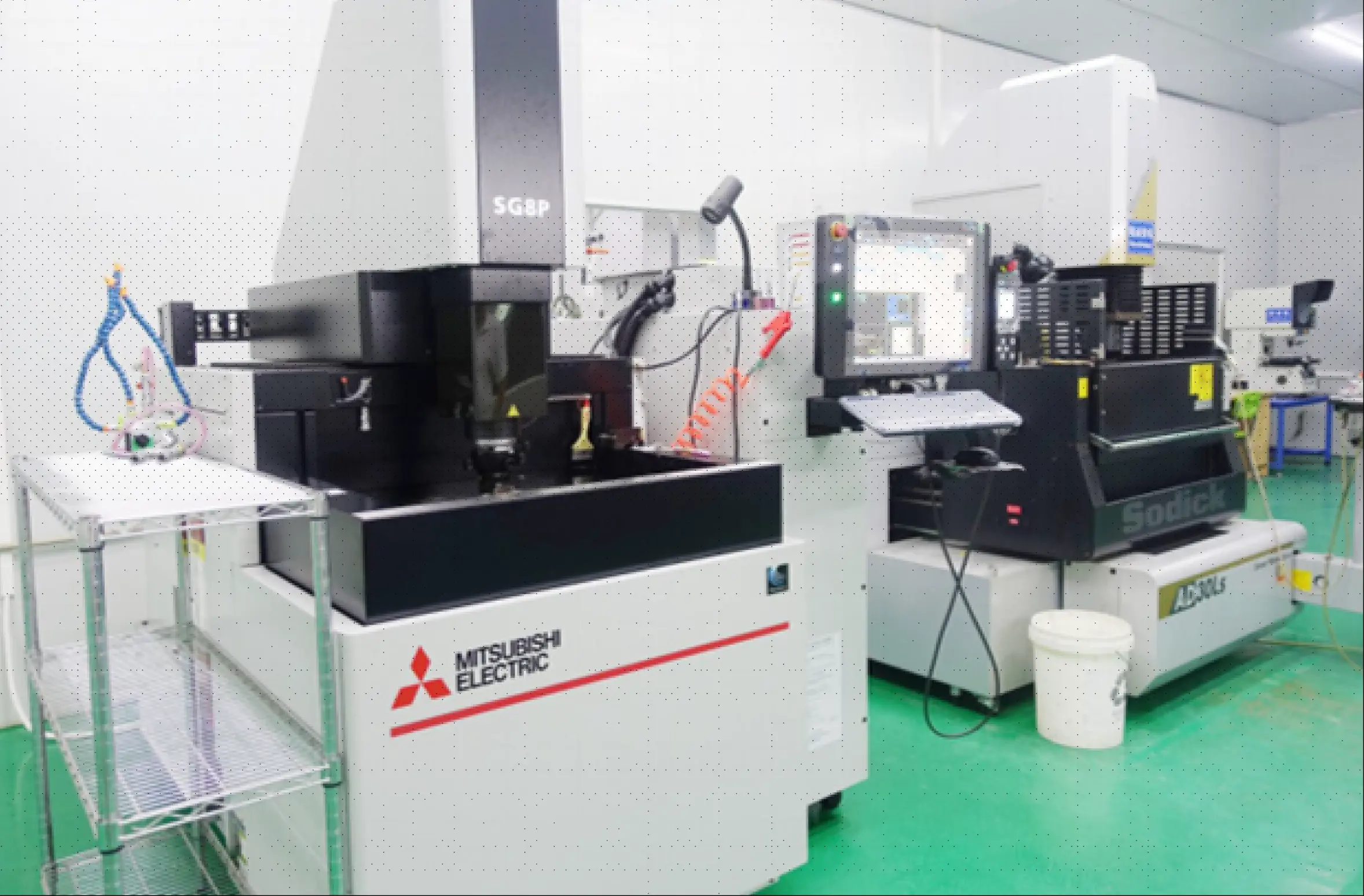

Precision Mold Parts Edm Machining

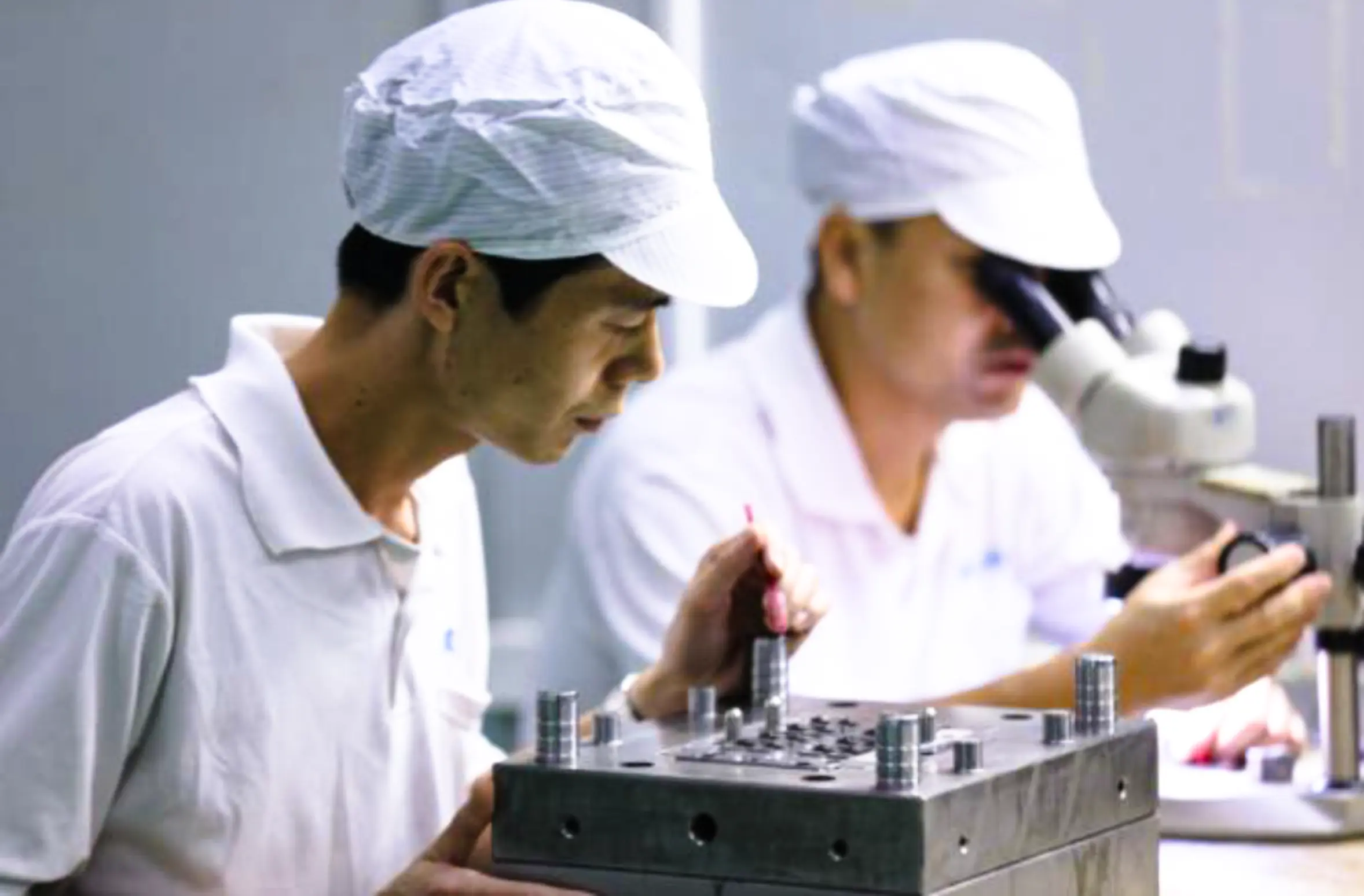

Precision Mold Assembly

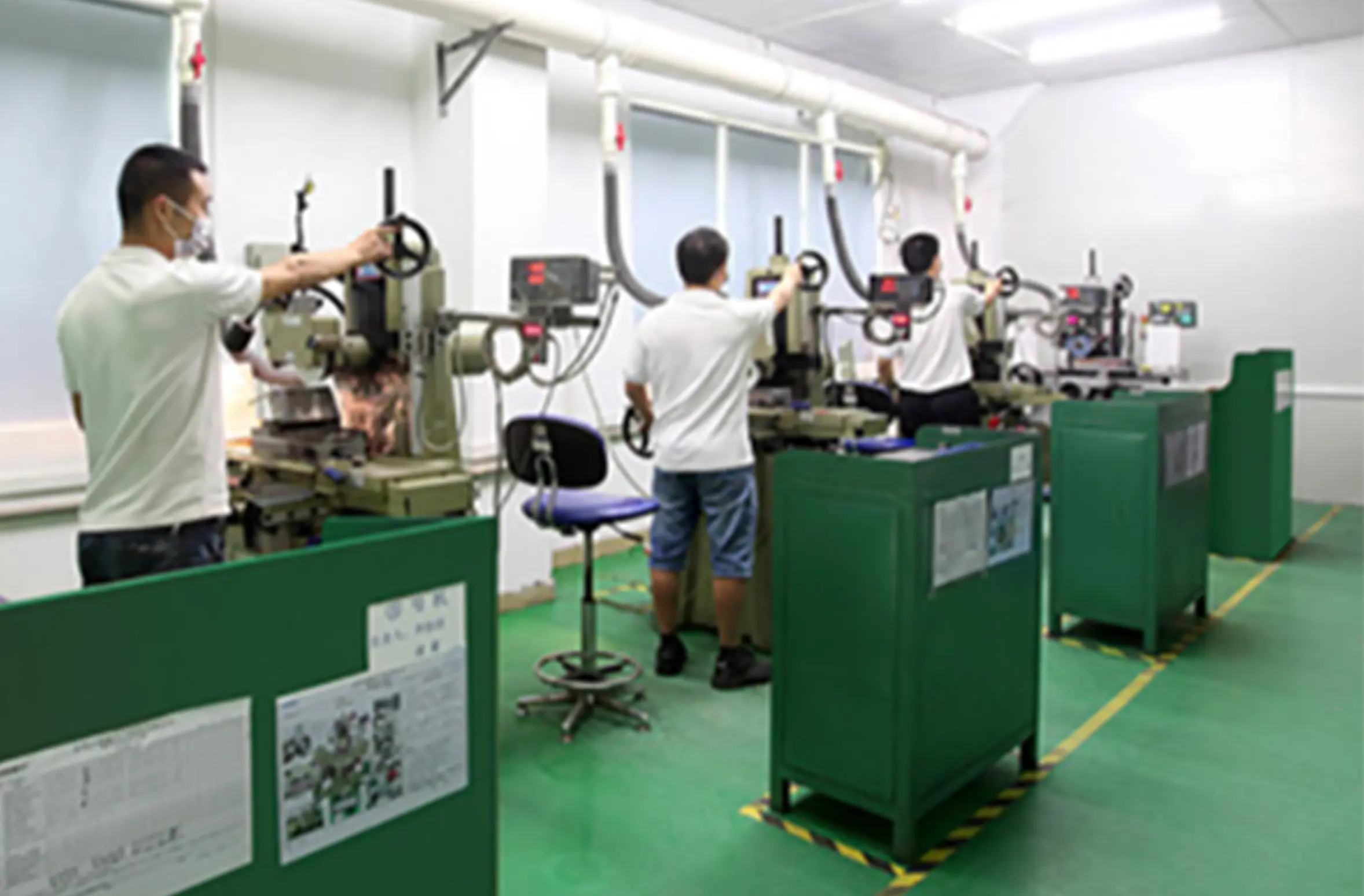

Precision Mold Parts Grinding

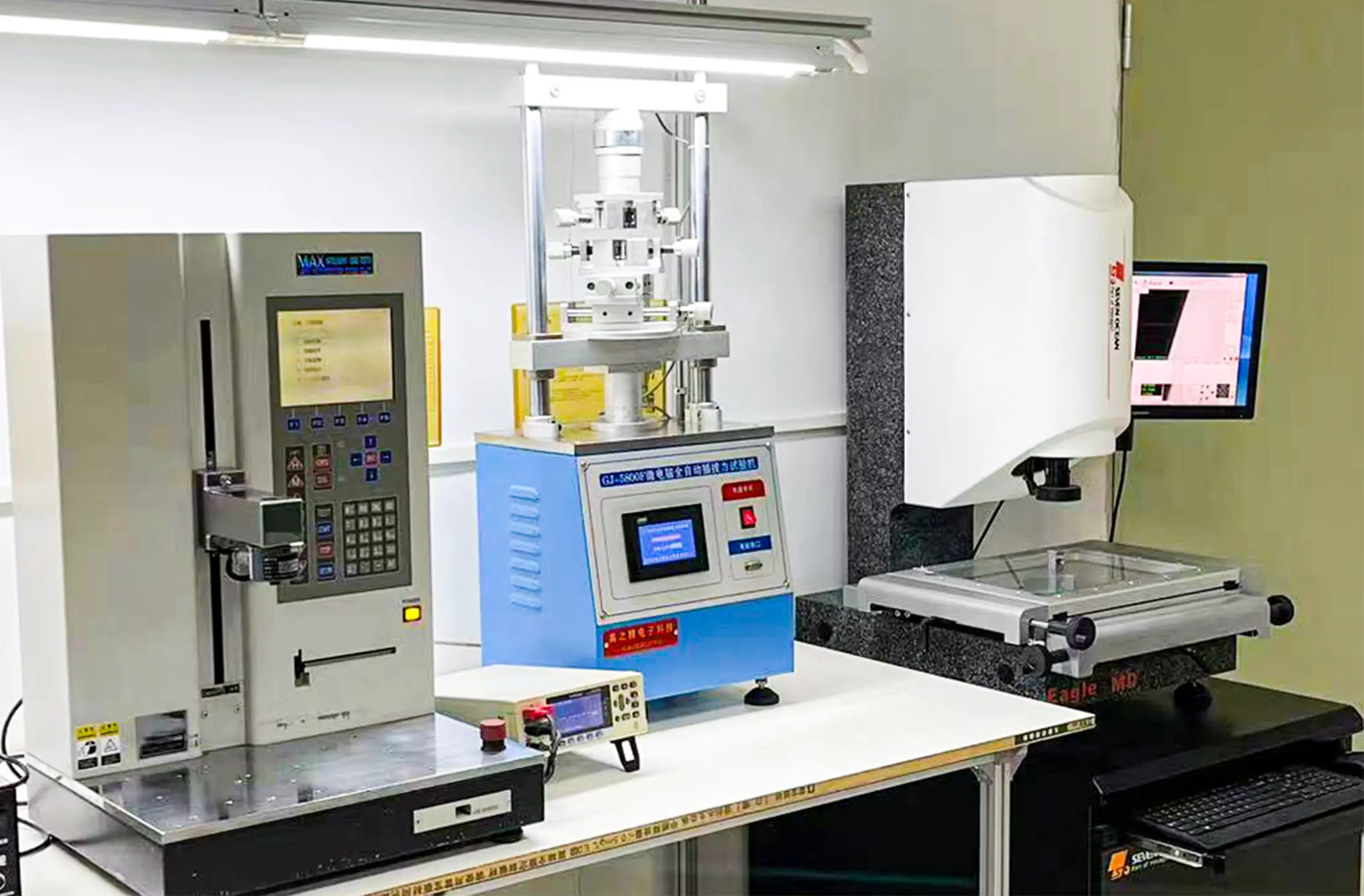

Dimensional And Performance Testing

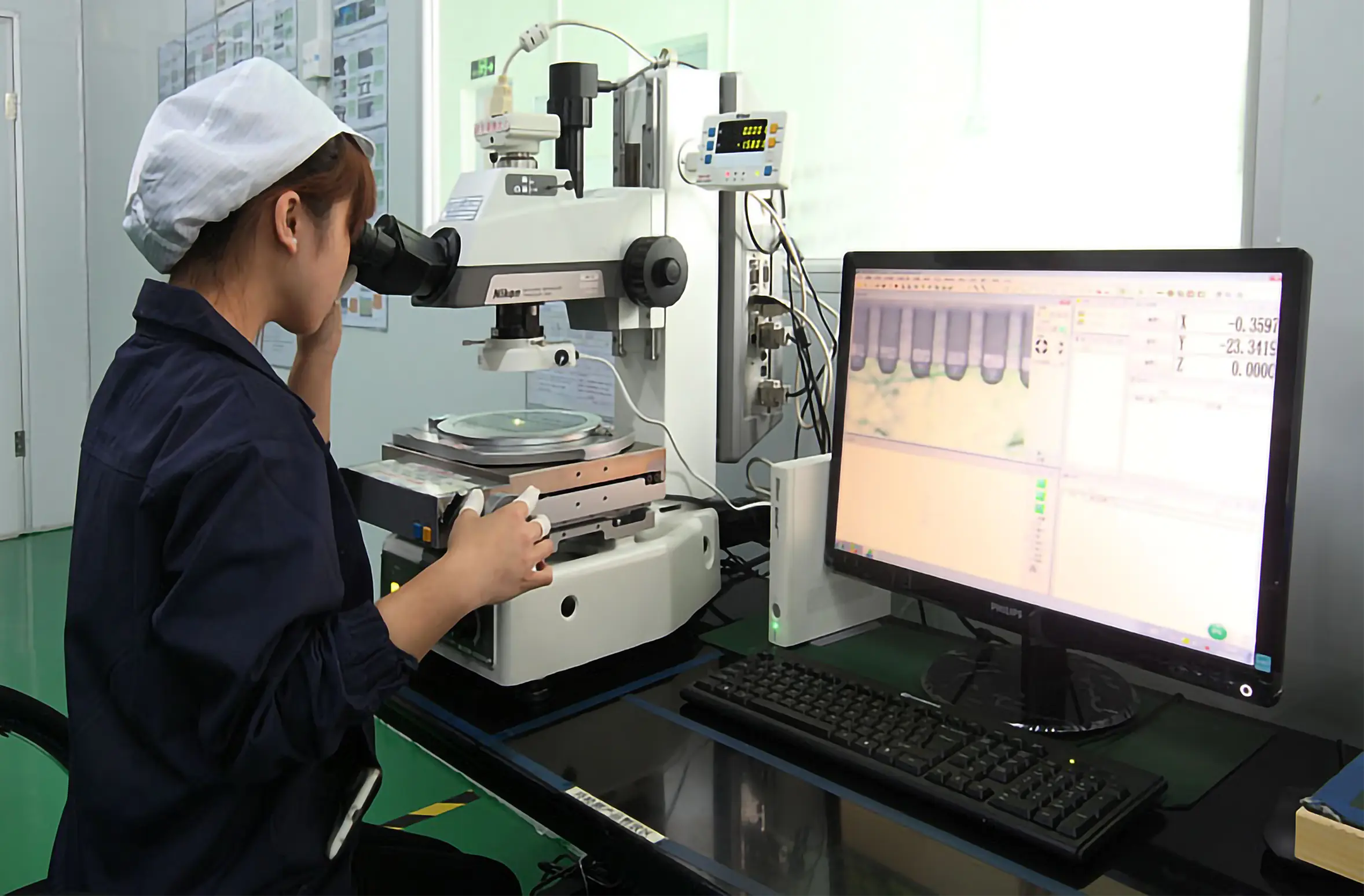

Dimension Inspection

Standard Product Series


Our company currently designs and manufactures five models of FPC/FFC connectors. They all feature side contact, front insertion with rear locking, and dual-sided contact. The models listed on the drawings are generally available in stock.

90601 Series
90601 Series
90602 Series
90602 Series
90603 Series
90603 Series
90604 Series
90604 Series
90607 Series
90607 Series

Technical Parameters of Pitch 0.3mm H=0.9mm Dual Contact Side FPC & FFC Connector

ItemsDetails
Material●Housing: LCP Natural UL94V-0
●Cover: PA Black UL94V-0
●Terminal: Copper alloy Plating: Au
●Stator: Copper alloy Plating: Tin
●Contact Type: Double contact
Main Technical Parameters●Operating Temperature: -40 ~ +85℃
●Rating Voltage: 30V(AC/DC)
●Rating Current: 0.2A/PIN
●Contact resistance: 50mΩ Max
●Insulation impendance: 50MΩMin
●Durability: 20 Times/Min
Important Safety Information●Note: Do not close connector without FPC/FFC
Contact Type● Side Contact Type
Installation Method● SMT automatic placement machine+Reflow soldering
Environmental Protection Standard● Comply with EU RoHS and Reach standards


Technical Parameters of Selection Guide of Pitch 0.3mm H=0.9mm Dual Contact Side FPC & FFC Connector


fpc ffc 0.3 mm

ffc fpc connector 0.3 pitch



Product ImagePitchheightCatalog Download

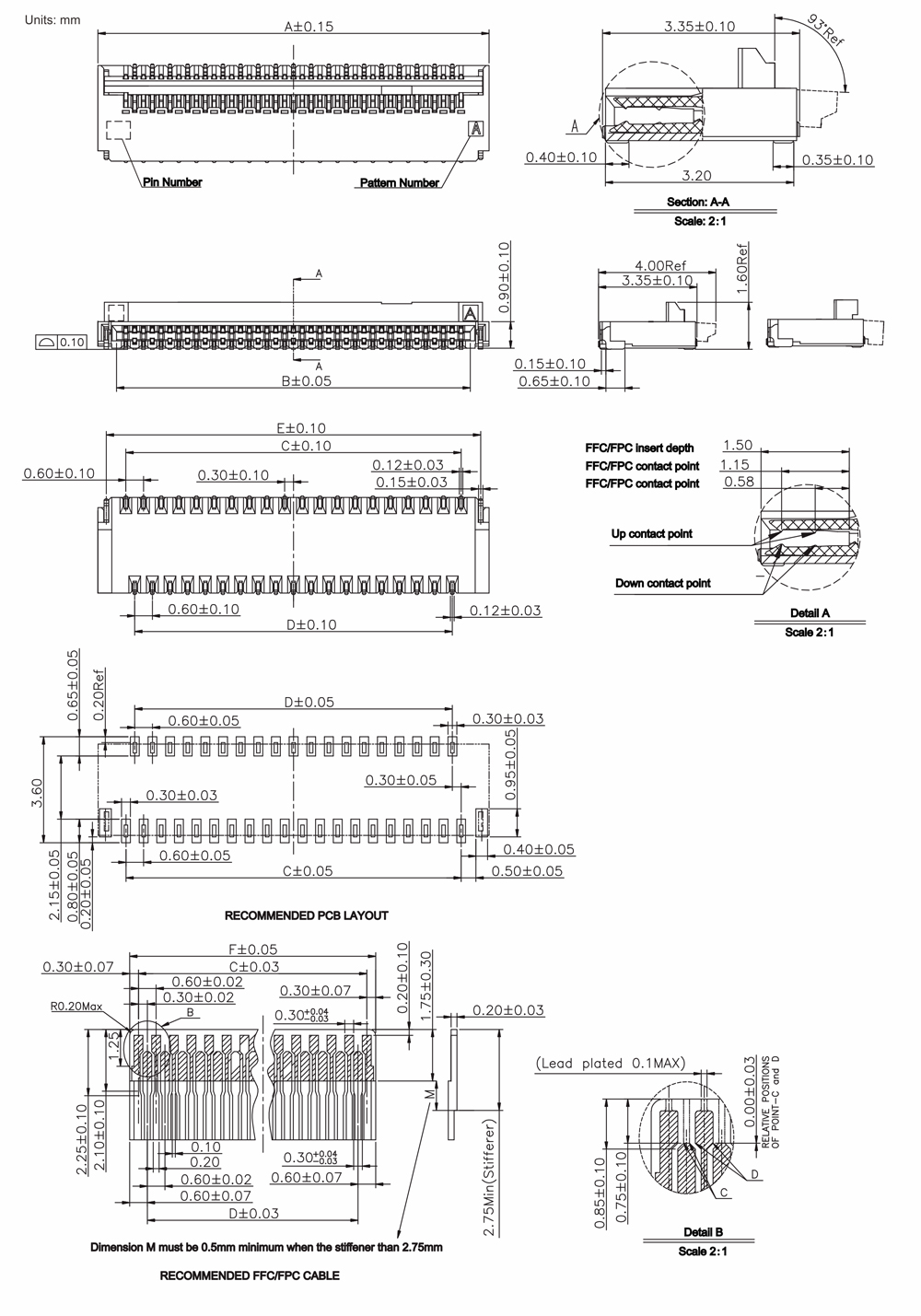

90603 Series  Dual Contact Side FPC&FFC Connector

0.3mm0.90mm90603 Series  Dual Contact Side FPC & FFC Connector


X-PinPart NumberABCDEF
9P906030300094.303.032.401.803.733.00
11P906030300114.903.633.002.404.333.60
13P906030300135.504.233.603.004.934.20
15P906030300156.104.834.203.605.534.80
17P906030300176.705.434.804.206.135.40
19P906030300197.306.035.404.806.736.00
21P906030300217.906.636.005.407.336.60
23P906030300238.507.236.606.007.937.20
25P906030300259.107.837.206.608.537.80
27P906030300279.708.437.807.209.138.40
31P9060303003110.909.639.008.4010.339.60
33P9060303003311.5010.239.609.0010.9310.20
35P9060303003512.1010.8310.209.6011.5310.80
39P9060303003913.3012.0311.4010.8012.7312.00
41P9060303004113.9012.6312.0011.4013.3312.60
45P9060303004515.1013.8313.2012.6014.5313.80
51P9060303005116.9015.6315.0014.4016.3315.60
57P9060303005718.7017.4316.8016.2018.1317.40
61P9060303006119.9018.6318.0017.4019.3318.60


X-PinWPCS/Reel
9-19Pin163000
21-45Pin243000
47-61Pin323000
