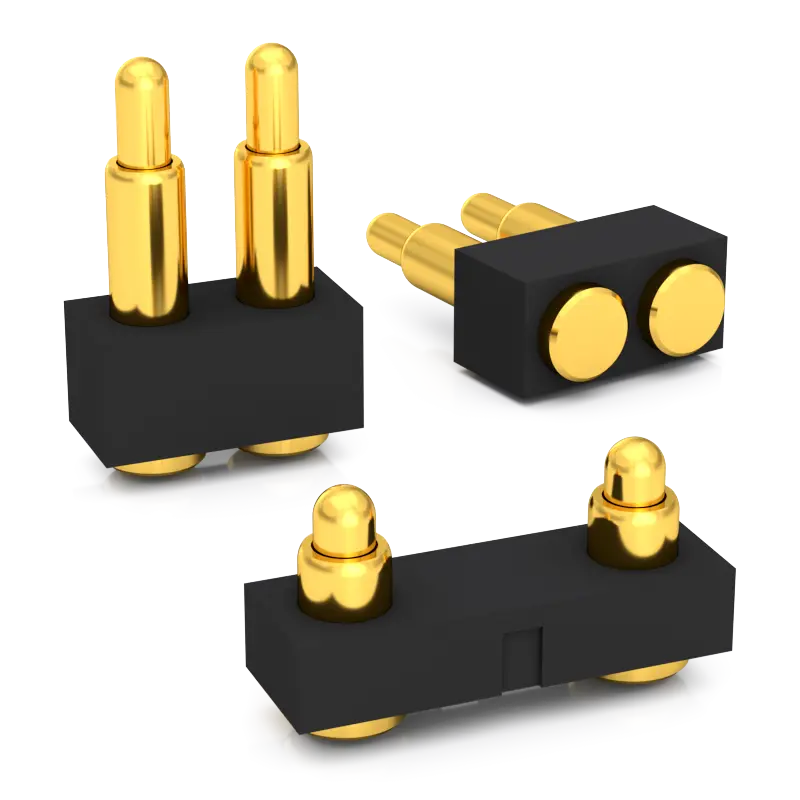

  • vertical smd pogo pin connector 2pin

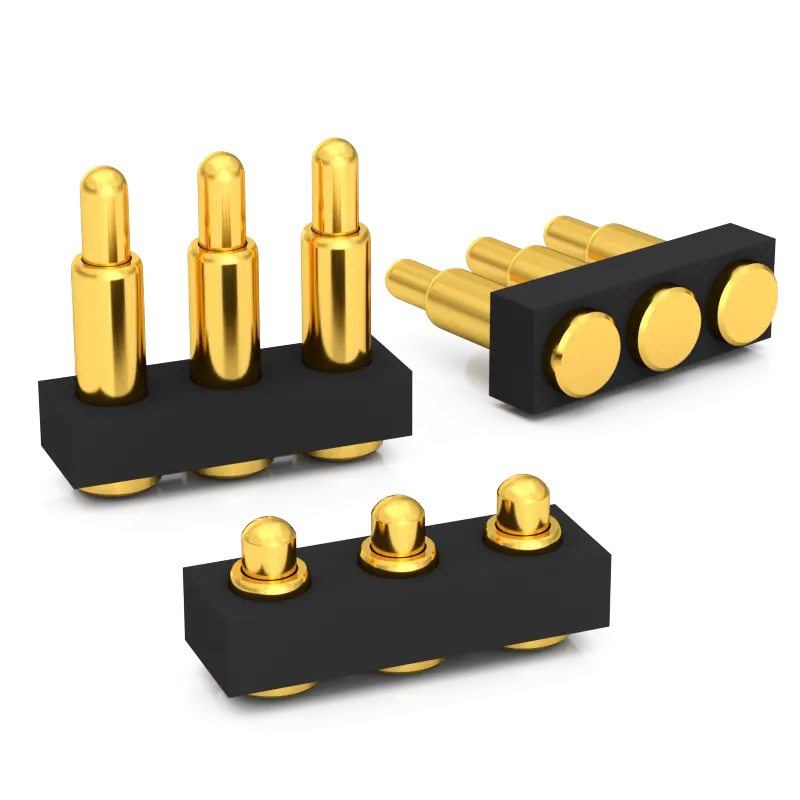

  • vertical smd pogo pin connector 3pin

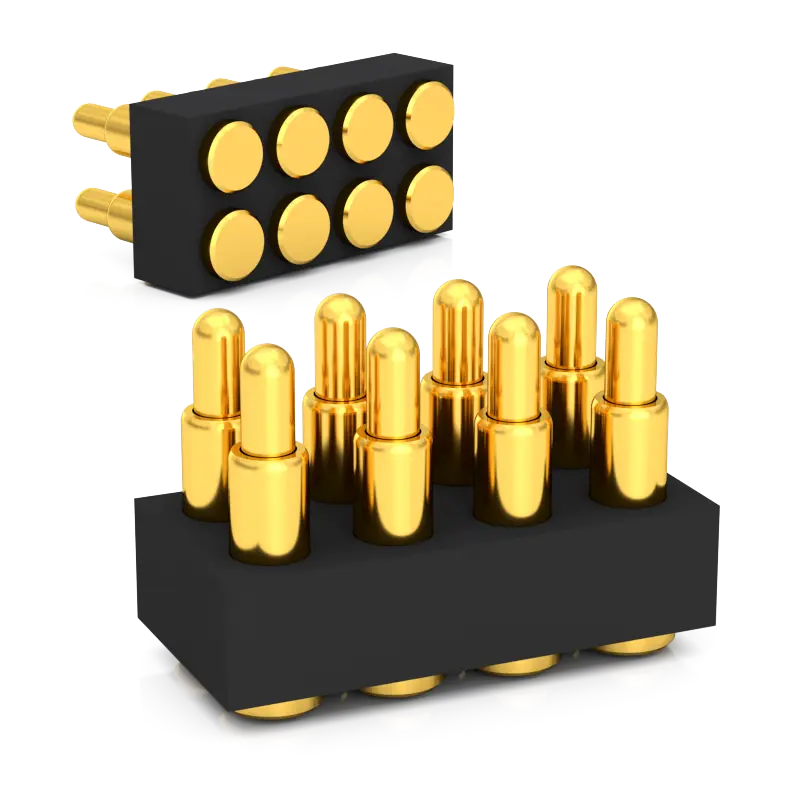

  • vertical smd pogo pin connector 8pin

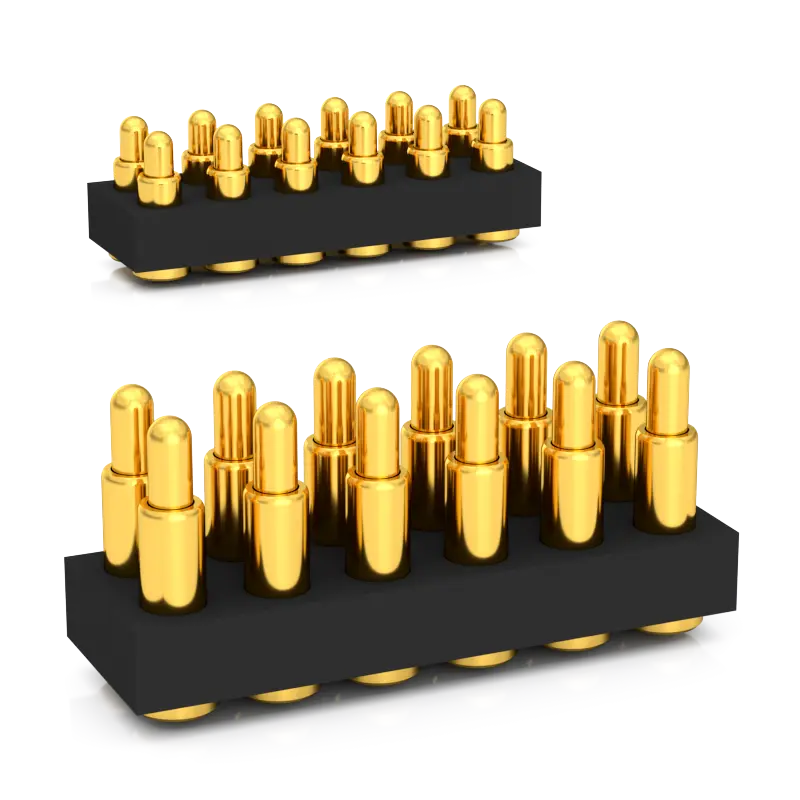

  • vertical smd pogo pin connector 12pin

Vertical SMD Pogo Pin Connector

  • Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance

  • Installation method: SMT Surface Mount (SMD) Reflow Soldering or Placement by Insertion Machine

  • Contact Resistance: 30 milliohms Max.

  • Rated Current: 2A~15A (Continuous Current)

  • Rated Voltage:36V AC/DC

  • Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)

  • Operating Temperature: -40°C to +120°C (Continuous Temperature)

  • Salt Spray Resistance 96 Hours Corrosion Test

  • High-Precision Mold And Parts Processing

  • A variety of standards are available, and samples will be sent out as soon as the same day.

  • Provide Customized Services

  • Comply With EU RoHS And Reach Standards

Product Details
Technical Parameters
Product Selection Guide

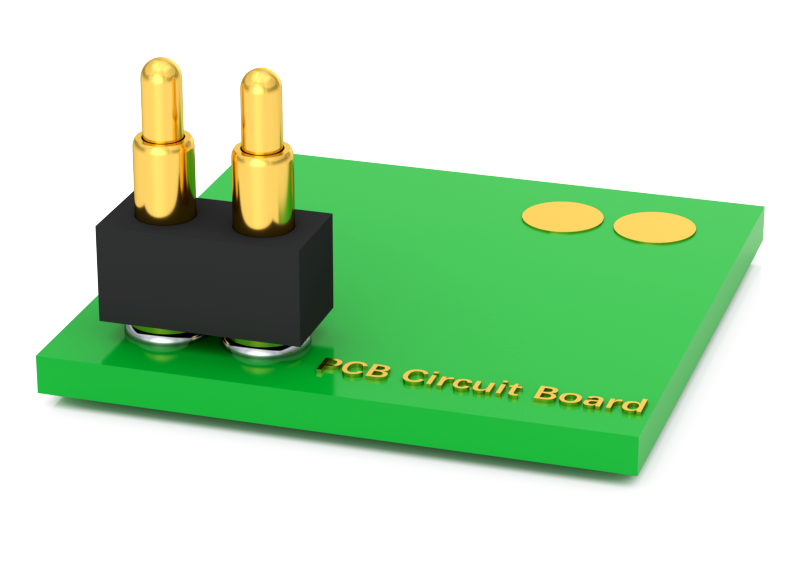

Product Details

Vertical SMD Pogo Pin Connectors, also known as SMD Pogo Pin Connectors, Pogo Pin connectors, or Surface Mount Spring-Loaded Connectors, are component connectors used to connect conductive or signal paths on a circuit board.


The Vertical SMD Pogo Pin Connector mainly consists of two core components: the Pogo Pin and the housing, which are assembled using precision molds and specialized equipment. The Pogo Pin features an inclined plane structure design internally, which, during operation, generates a lateral force through contact with the spring on the inclined plane, ensuring that the pinhead maintains stable contact with the inner wall of the pin tube. This design allows the electrical current to primarily pass through the gold-plated Plunger and Body, thereby achieving stable and extremely low contact resistance, ensuring a stable and reliable connection even with frequent mating and unmating.


The installation method for the Rtench Vertical SMD Pogo Pin Connector uses SMT (Surface Mount Technology) automatic pick-and-place reflow soldering technique.


This process includes the following steps:

1. An SMT automatic pick-and-place machine places the Vertical SMD Pogo Pin Connector onto a PCB (Printed Circuit Board) that has been printed with solder paste.

2. The assembly is then heated using a reflow soldering process, which melts the solder paste and, upon cooling, solidifies, thereby completing the permanent connection between the connector and the PCB pads.


This installation method is fast, highly precise, and highly automated, significantly enhancing production efficiency and product quality.



Material & Parts

The Vertical SMD Pogo Pin Connector is a type of Pogo Pin connector that is manufactured based on an inclined plane structural design, incorporating an internal spring mechanism. It primarily consists of two core components: the Pogo Pin and the housing. Its main characteristic is vertical contact, with flat solder legs, typically mounted on the surface of PCB pads using the SMT reflow soldering process.

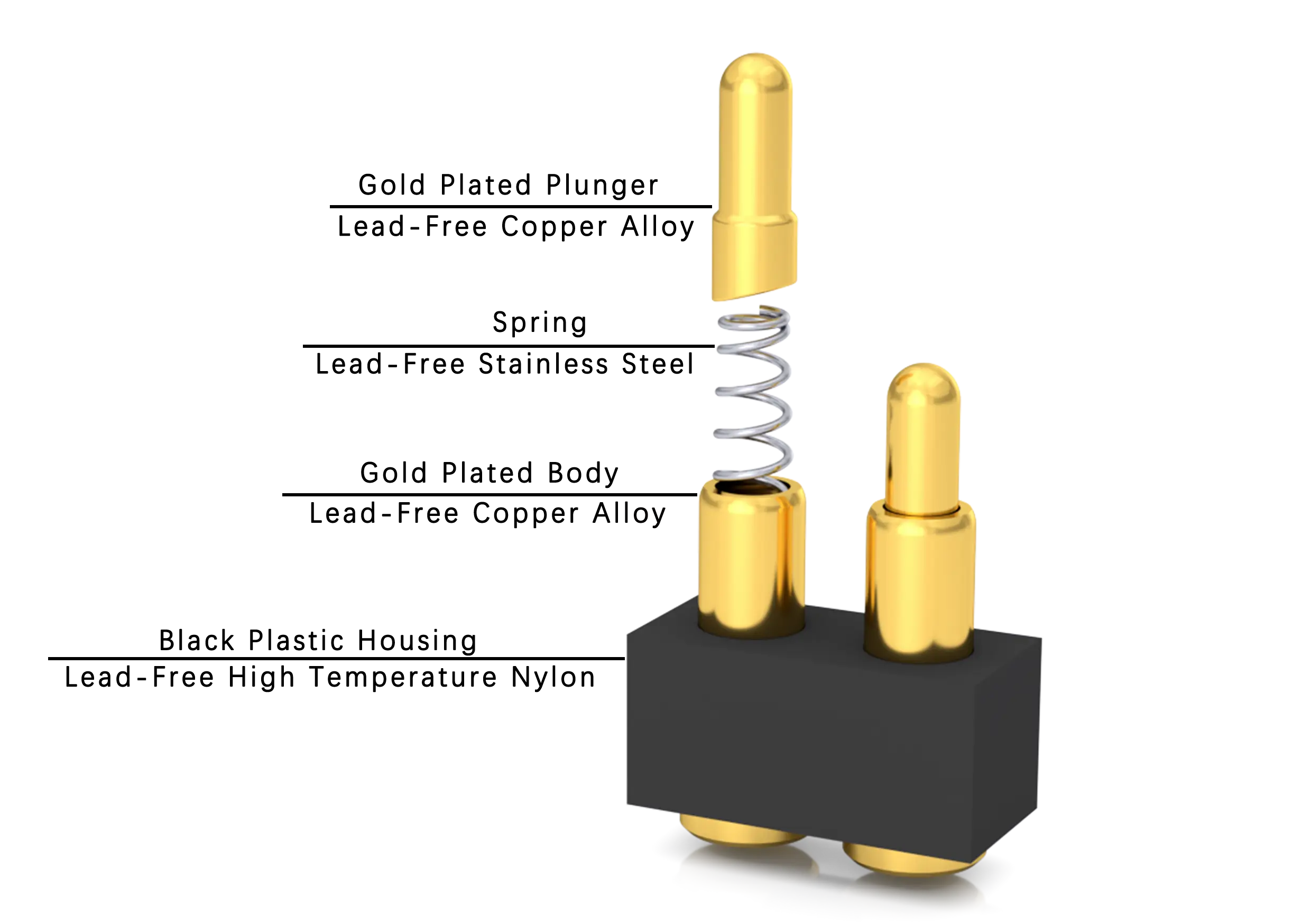

vertical SMD pogo pin connector material

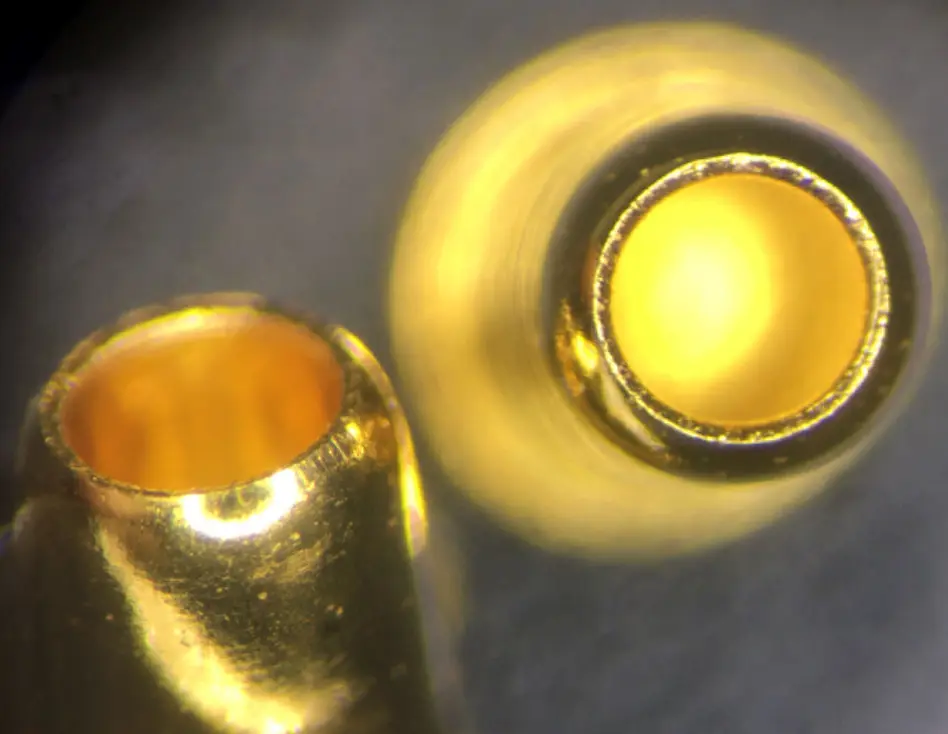

The vacuum blind hole electroplating technology is known for its superior performance, capable of quickly and accurately electroplating a layer of gold inside and outside extremely fine blind holes. This excellent electroplating process not only ensures the overall aesthetics of the metal surface but also has outstanding corrosion resistance and wear resistance. Both the inside and the outside of the hole present a bright golden color, and there will be no peeling or gold dropping issues.

vertical SMD pogo pin connector sample

By combining mature design concepts, high-precision processing techniques, and excellent vacuum blind hole electroplating technology, we can achieve extremely low and stable contact resistance.

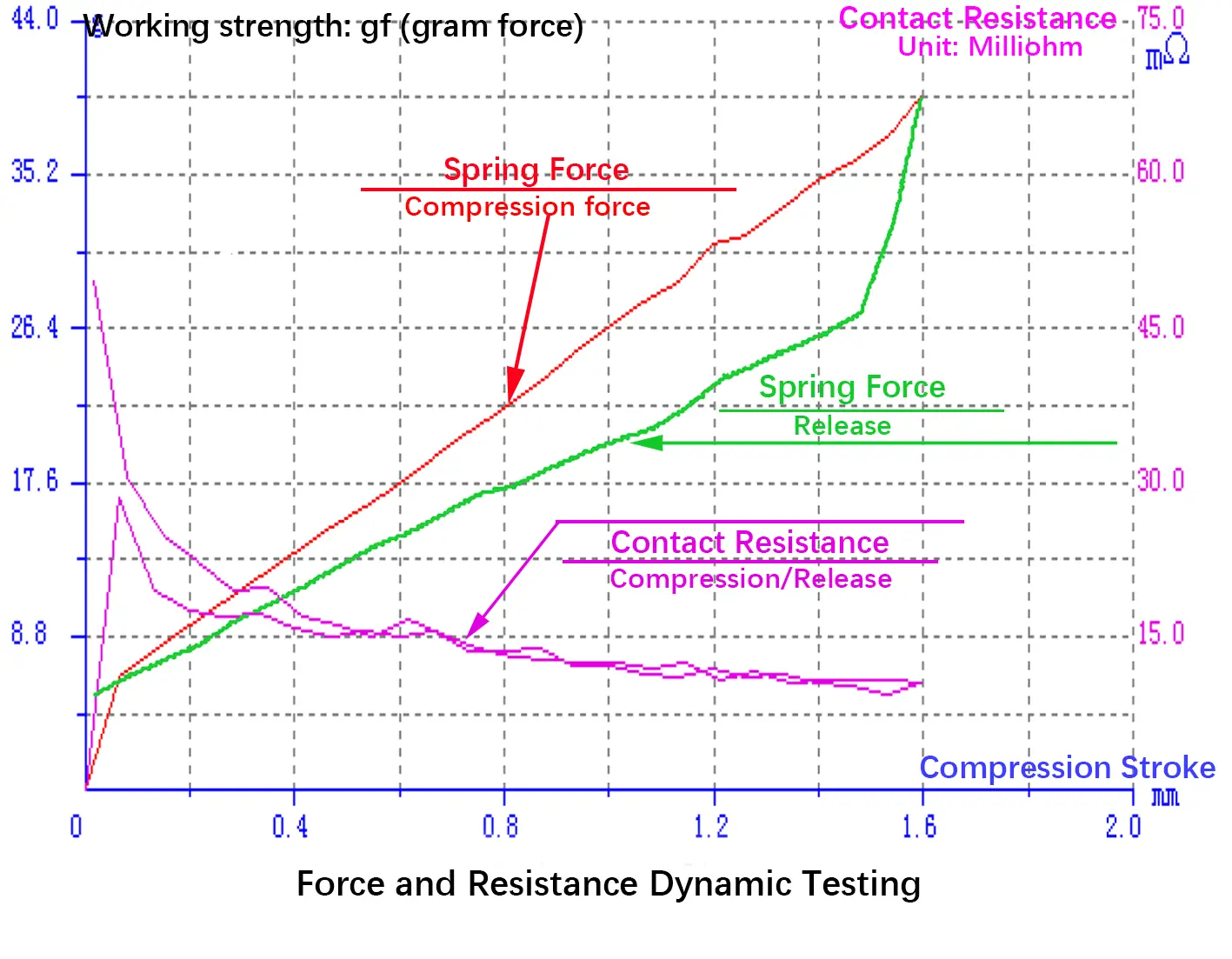

vertical SMD pogo pin connector design

Standard Product

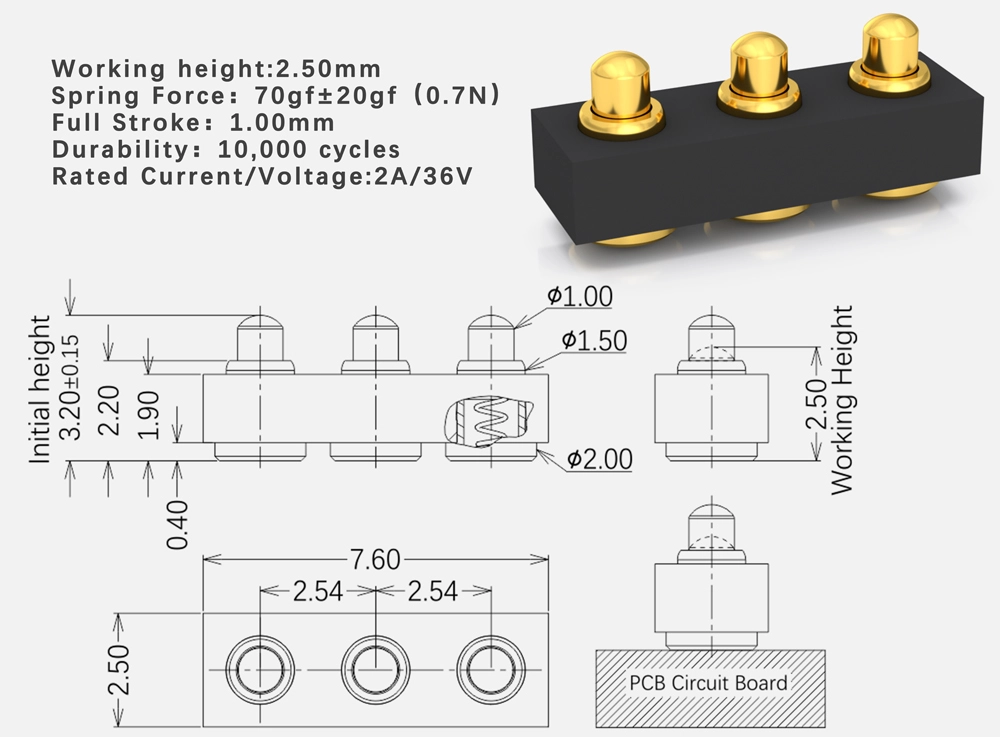

vertical smd pogo pin connector manufacturer

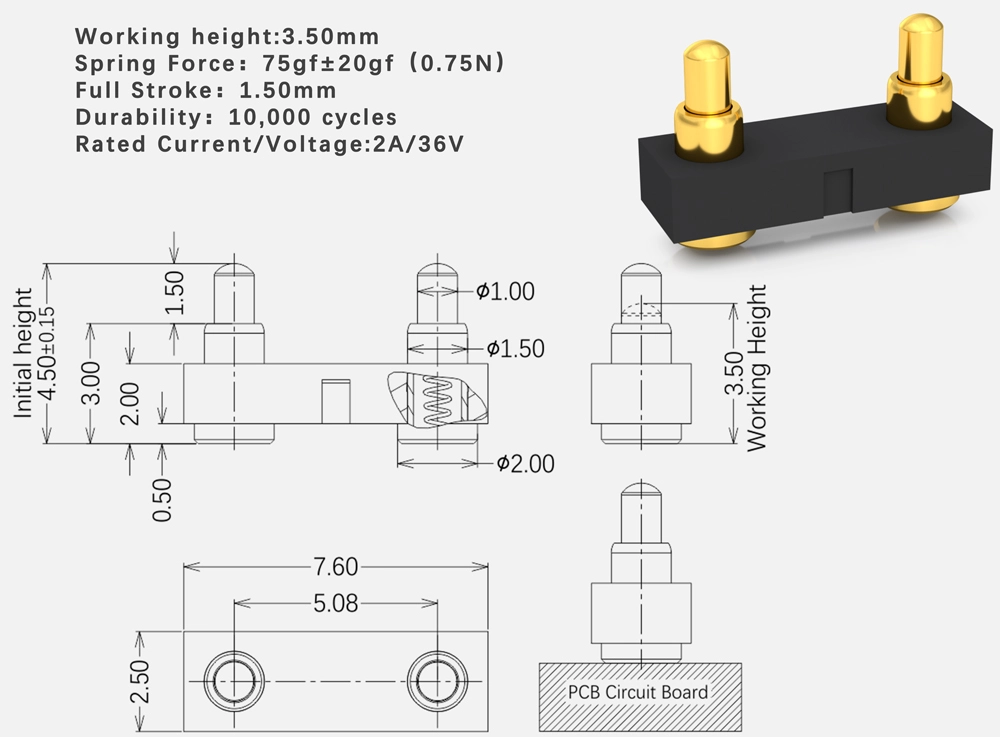

vertical smd pogo pin connector company

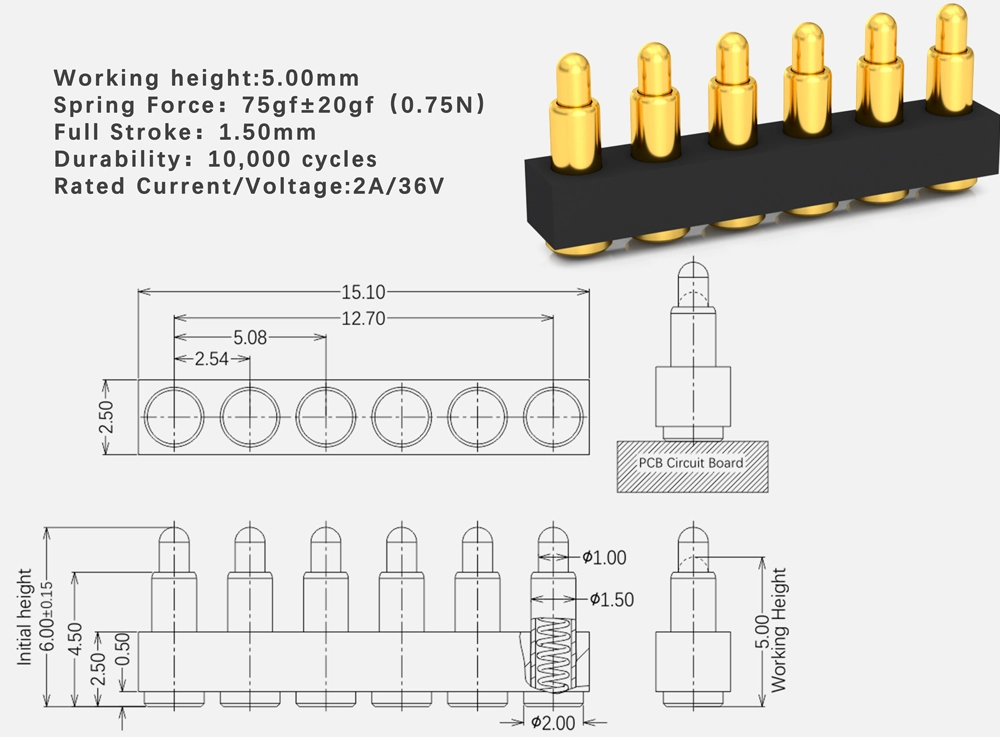

vertical smd pogo pin connector supplier

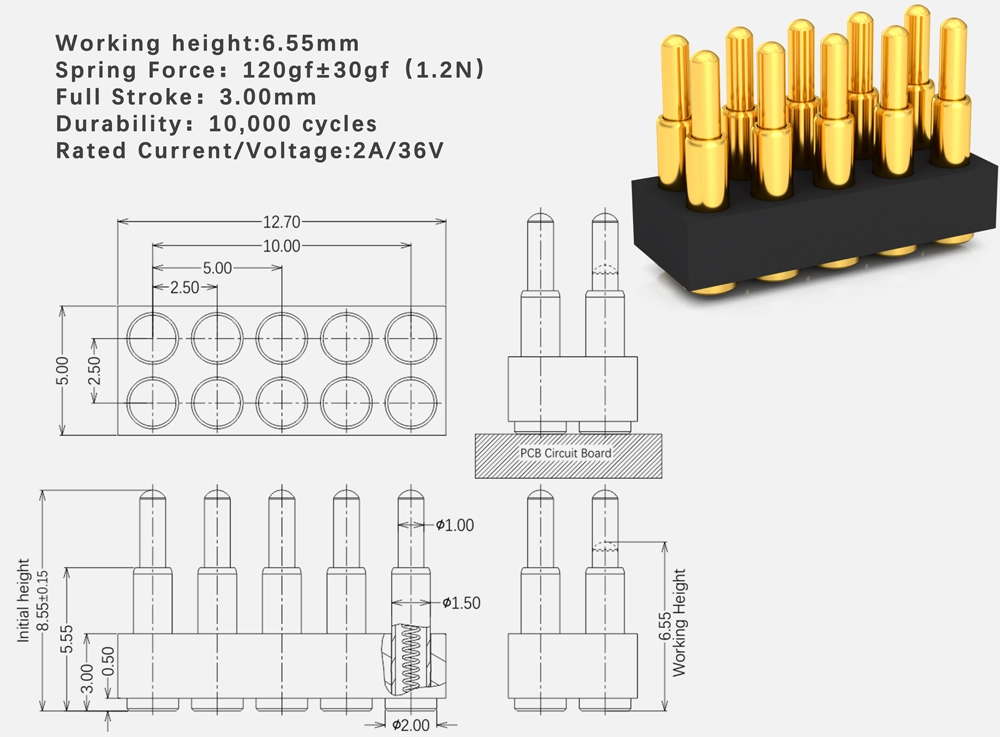

vertical smd pogo pin connector manufacturing company

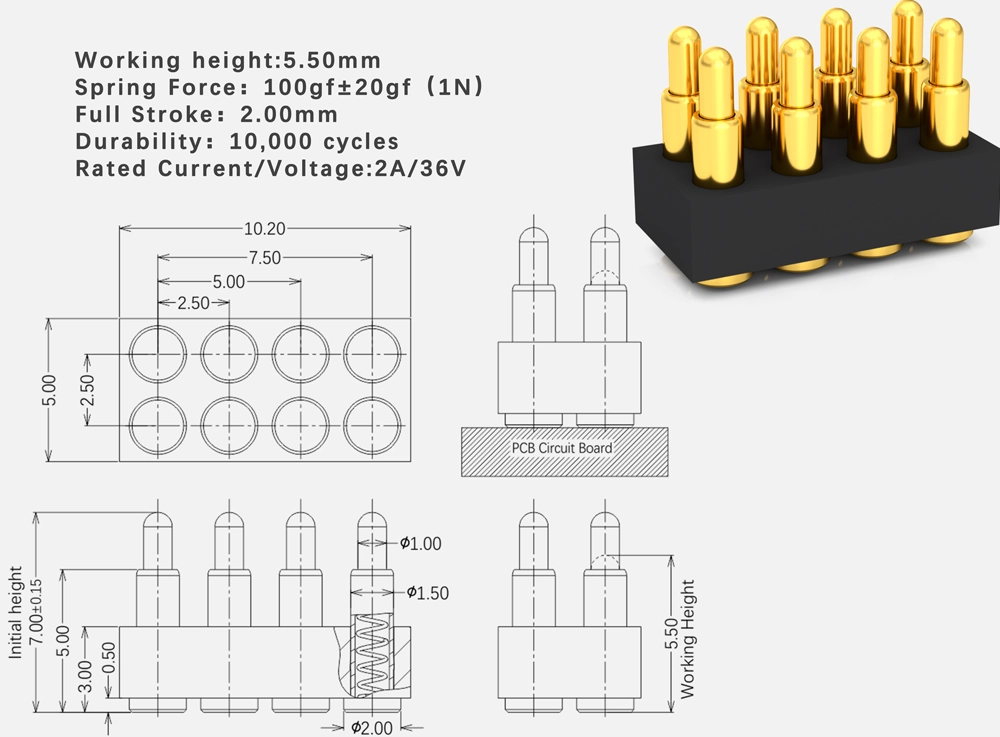

vertical smd pogo pin connector factory

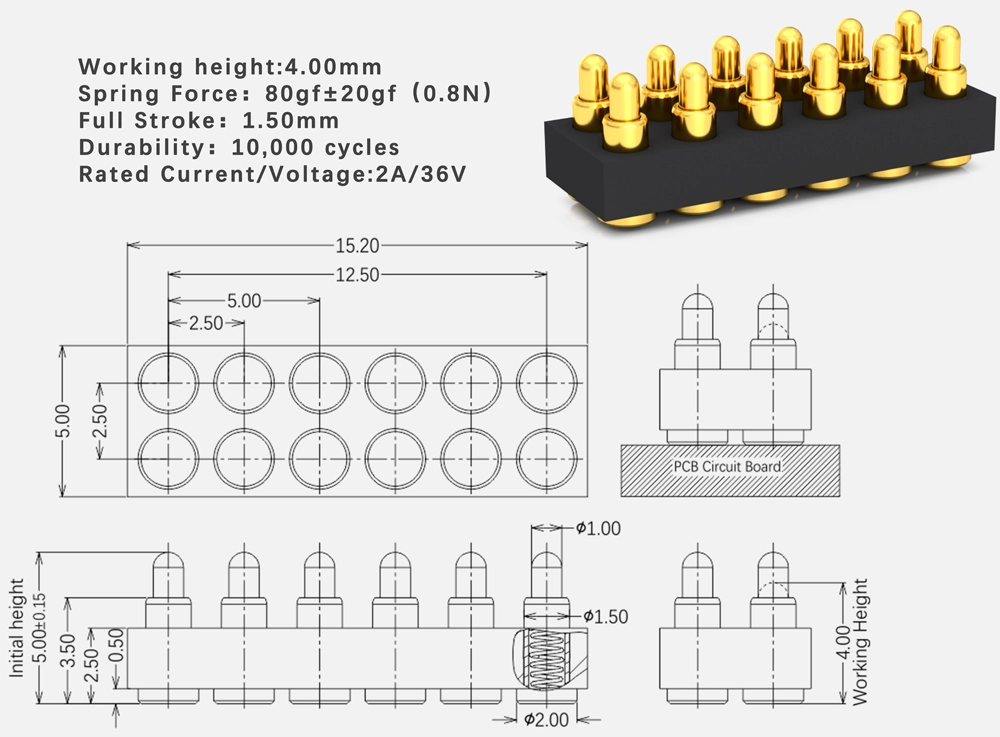

vertical smd pogo pin connector for sale

Technical Parameters of Vertical SMD Pogo Pin Connector

ItemsDetails
Material● Plunger: Lead-Free Copper Alloy
● Body: Lead-Free Copper Alloy
● Spring: Stainless Steel
●SolidPin: Lead-Free Copper Alloy
●Housing: Lead-Free-High Temperature Nylon
Main Technical Parameters● Standard state:
● Operating temperature: -40~+120°C(Standard)
● Operating humidity: 20-85%RH
● Storage temperature: -10~+50°C
● Storage humidity: 20-85%RH
● Rating voltage: 36V AC/DC(Standard)
● Rating current: 2A/Pin Continuous(Standard)
● Contact resistance: 30 mΩ Max.(Standard)
● Withstanding voltage: 250V AC ,1 Minute
● Insulation resistance: 500 MΩ Min.
● Durability: 10,000 Cycle(Standard)
● Working Spring Force:50~180gf(Standard)
Electroplating● Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm
● Body: Ni Plating 1.4μm, Gold Plating 0.10μm
● SolidPin: Ni Plating 1.4μm, Gold Plating 0.10μm
Contact Type● Vertical SMD Contact Type
Installation Method● SMT automatic placement machine+Reflow soldering
Environmental Protection Standard● Comply with EU RoHS and Reach standards


Selection Guide of Vertical SMD Pogo Pin Connector

Please Note: Please refer to the operation manual for instructions and precautions


SNProduct ImageNumber Of PinsPitchCatalog Download
1

2Pin-Vertical SMD Pogo Pin Connector

2Pin2.00~7.00mm2Pin-Vertical SMD Pogo Pin Connector
2

3Pin-Vertical SMD Pogo Pin Connector

3Pin2.00~5.60mm3Pin-Vertical SMD Pogo Pin Connector
3

4Pin-Vertical SMD Pogo Pin Connector

4Pin2.00~6.00mm4Pin-Vertical SMD Pogo Pin Connector
4

5Pin-Vertical SMD Pogo Pin Connector

5Pin2.00~6.00mm5Pin-Vertical SMD Pogo Pin Connector
5

6Pin-Vertical SMD Pogo Pin Connector

6Pin2.00~6.00mm6Pin-Vertical SMD Pogo Pin Connector
6


8Pin2.00~6.00mm8Pin-Vertical SMD Pogo Pin Connector
7

10Pin-Vertical SMD Pogo Pin Connector

10Pin2.00~6.00mm10Pin-Vertical SMD Pogo Pin Connector
8

12Pin-Vertical SMD Pogo Pin Connector

12Pin2.50mm12Pin-Vertical SMD Pogo Pin Connector
9


14Pin2.50mm14Pin-Vertical SMD Pogo Pin Connector
10

20Pin-Vertical SMD Pogo Pin Connector

20Pin2.50mm20Pin-Vertical SMD Pogo Pin Connector
