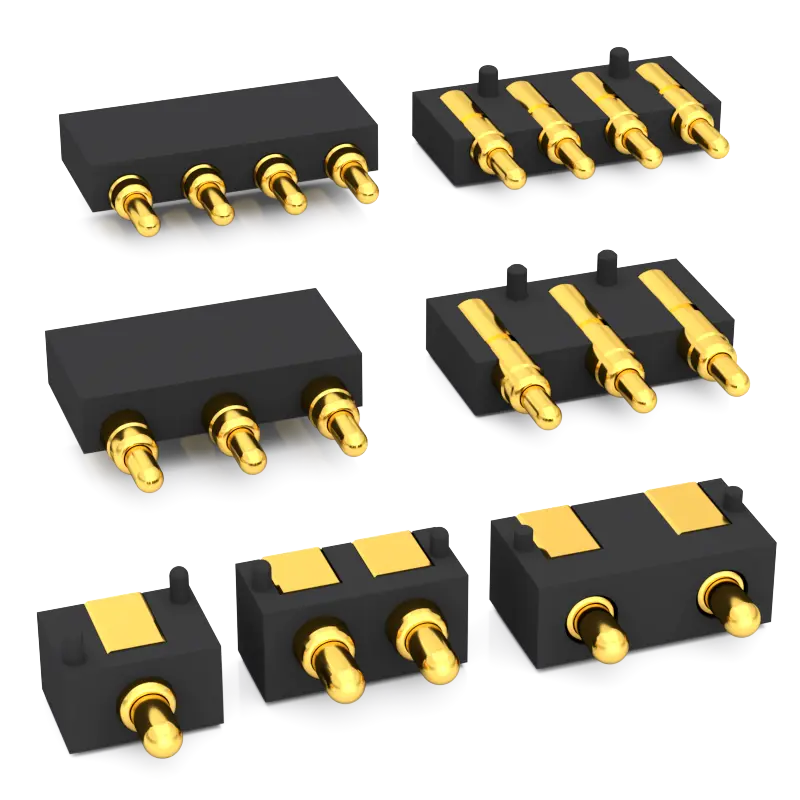

SMD Side Contact Pogo Pin Connector

  • Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance

  • Installation method: SMT surface mount (SMD) reflow soldering

  • Contact Resistance: 30 milliohms Max.

  • Rated Current: 2A-15A (Continuous Current)

  • Rated Voltage: 36V AC/DC

  • Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)

  • Operating Temperature: -40°C to +120°C (Continuous Temperature)

  • Salt Spray Resistance 96 Hours Corrosion Test

  • High-Precision Mold And Parts Processing

  • A variety of standards are available, and samples will be sent out as soon as the same day.

  • Provide Customized Services

  • Comply With EU RoHS And Reach Standards

Product Details
Technical Parameters
Product Selection Guide

Product Details

The SMD Side Contact Pogo Pin Connector, also known as the Right Angle Pogo Pin Connector, Pogo Pin Connector, and SMD Side Contact Spring-loaded Connector, primarily serves to connect for conductivity or signal transmission.

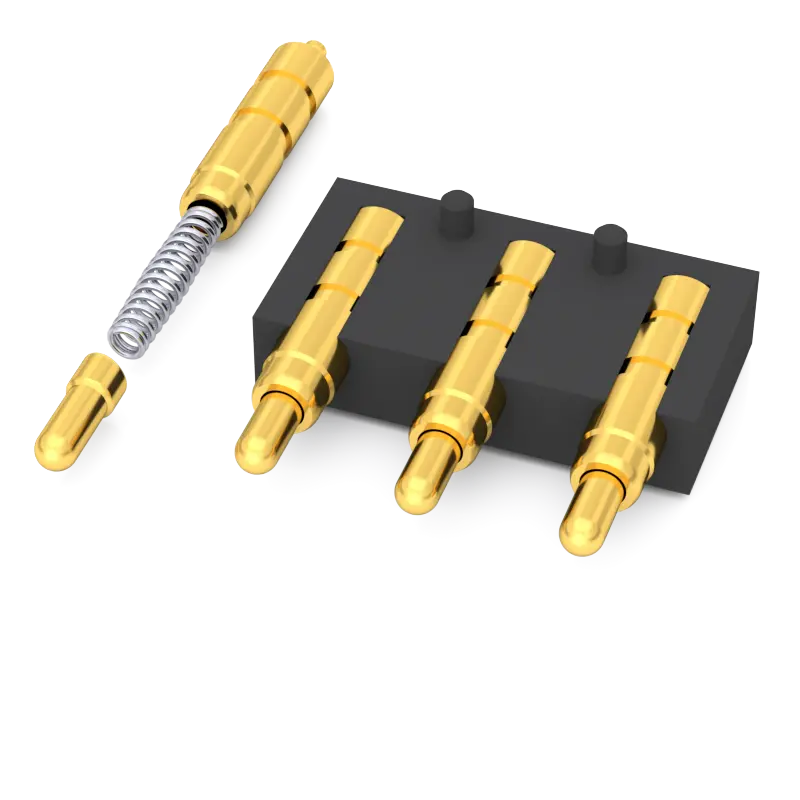

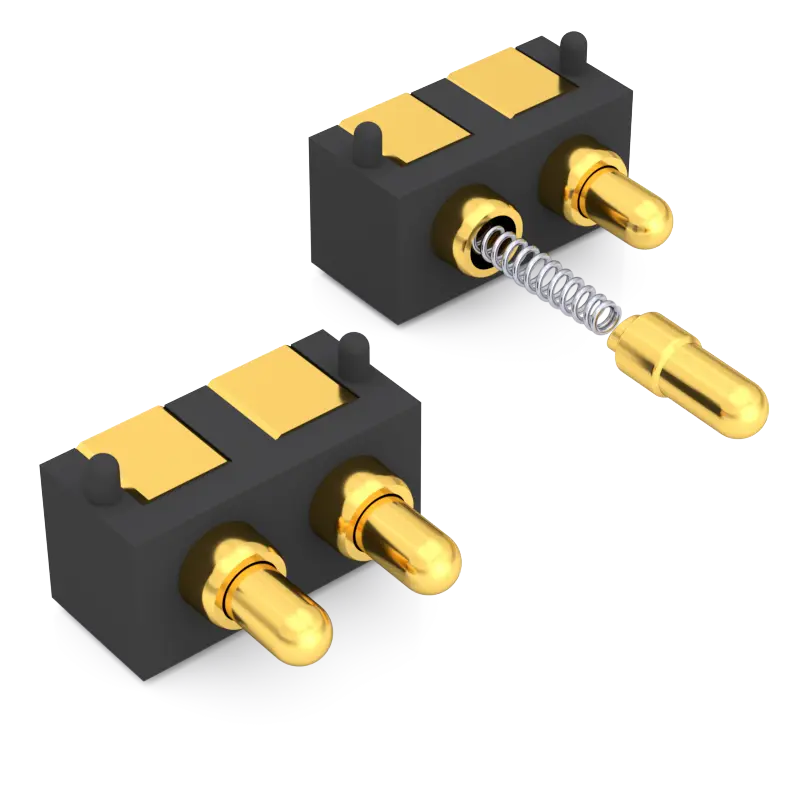

The interior of the SMD Side Contact Pogo Pin Connector adopts an inclined surface structure and built-in spring mechanism design. It is mainly composed of multiple Pogo Pins and housing, two core components, assembled through precise molds and specialized equipment. The purpose of the inclined surface structure design is to ensure that when the Pogo Pin is working, the lateral force generated by the contact between the inclined surface and the spring allows the pinhead to maintain stable contact force with the inner wall of the pin tube. This promotes the main current path through the gold-plated pinhead (Plunger) and pin tube (Body), thus achieving stable and extremely low contact resistance, maintaining stable and reliable connection even in frequent plug-ins and plug-outs.


Installation Method of SMD Side Contact Pogo Pin Connector

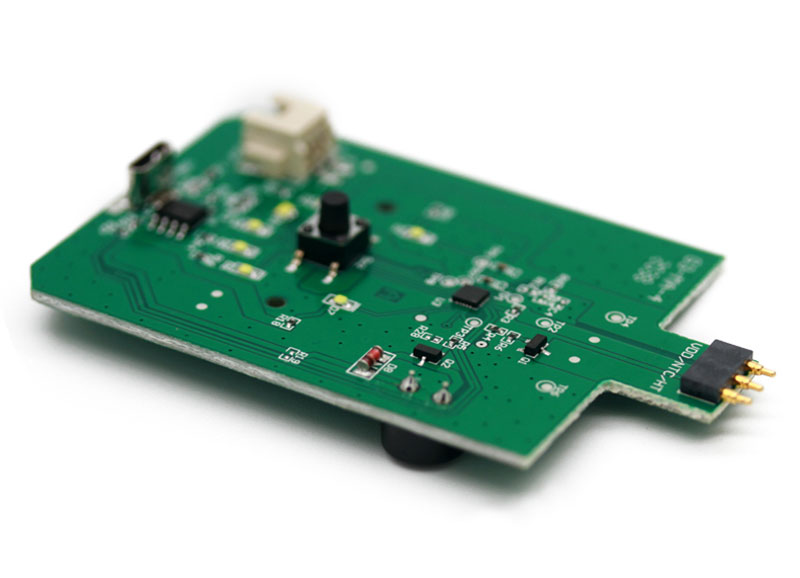

SMT automatic patch reflow soldering technology: The SMT automatic patch machine automatically mounts the SMD Side Contact Pogo Pin Connector onto the PCB circuit board with printed solder paste. The solder legs are precisely inserted into the holes of the PCB circuit board, and then the solder paste is melted and solidified through the reflow soldering process, completing the fixed connection with the PCB solder pad. This process is fast, highly accurate, highly automated, significantly improving production efficiency and product quality.



Material & Parts

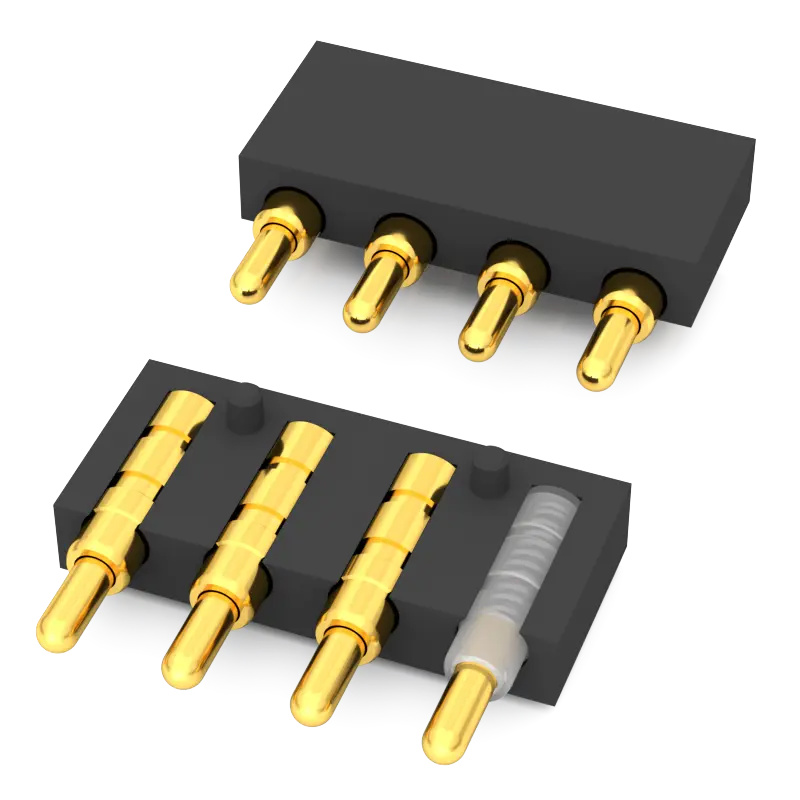

The SMD Side Contact Pogo Pin Connector is a type of Pogo Pin connector, a built-in spring connector manufactured based on an inclined surface structure design. It is typically composed of two core components, the Pogo Pin and the housing. Its characteristic is the side contact type, suitable for SMT automatic patch reflow soldering. It has high welding strength (more firmly welded with the PCB circuit board), very low resistance, stable and reliable connection, long lifespan, and is more durable.


SMD side contact pogo pin connector material

Vacuum blind hole plating technology is renowned for its outstanding performance, capable of precisely plating a layer of gold both inside and outside of extremely fine blind holes. This advanced plating process not only ensures the overall aesthetics of the metal surface, but also possesses excellent corrosion resistance and anti-wear properties. Every detail, whether inside or outside the hole, presents a golden and bright color, without any issues of peeling or gold dropping. The precision and stability of this technology ensure the durability of the plating layer, meeting various demanding application requirements.


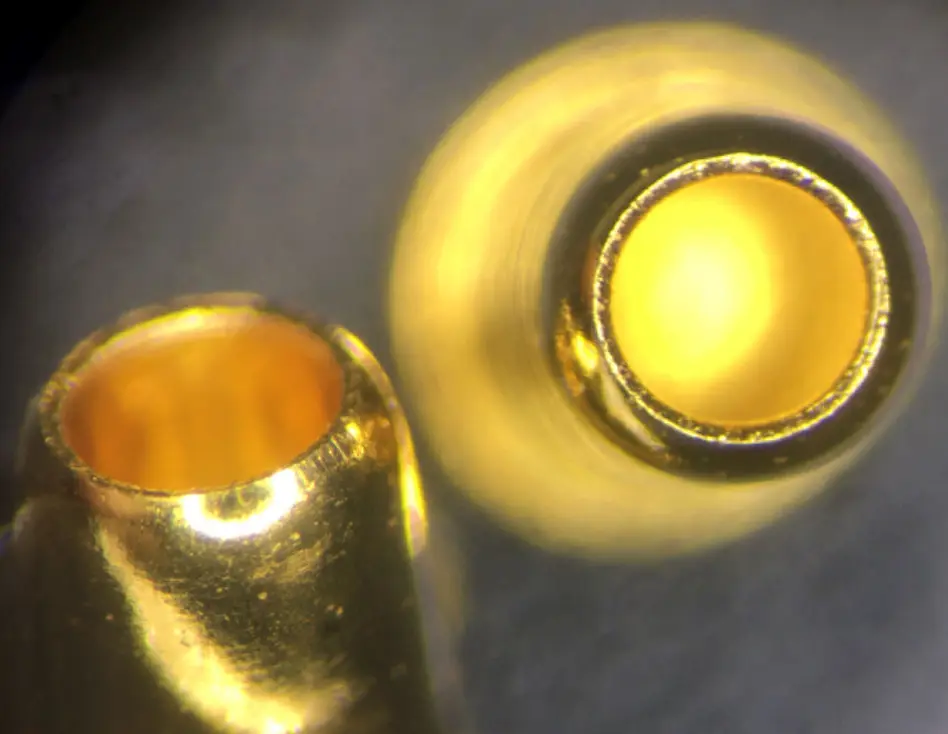

SMD side contact pogo pin connector sample

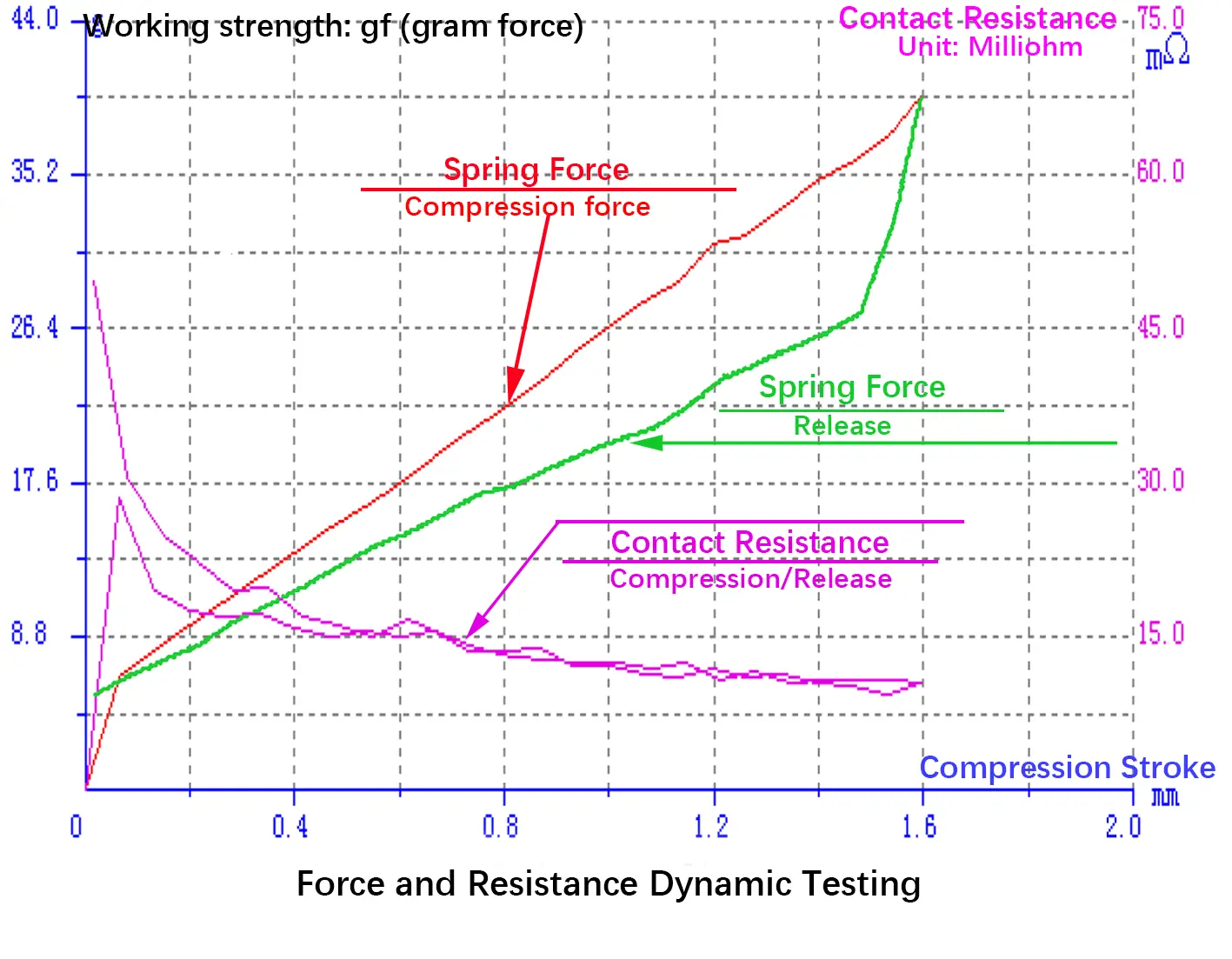

Mature design, high-precision processing and advanced vacuum blind hole plating technology are combined to achieve extremely low and stable contact resistance.


SMD side contact pogo pin connector design

Standard Product

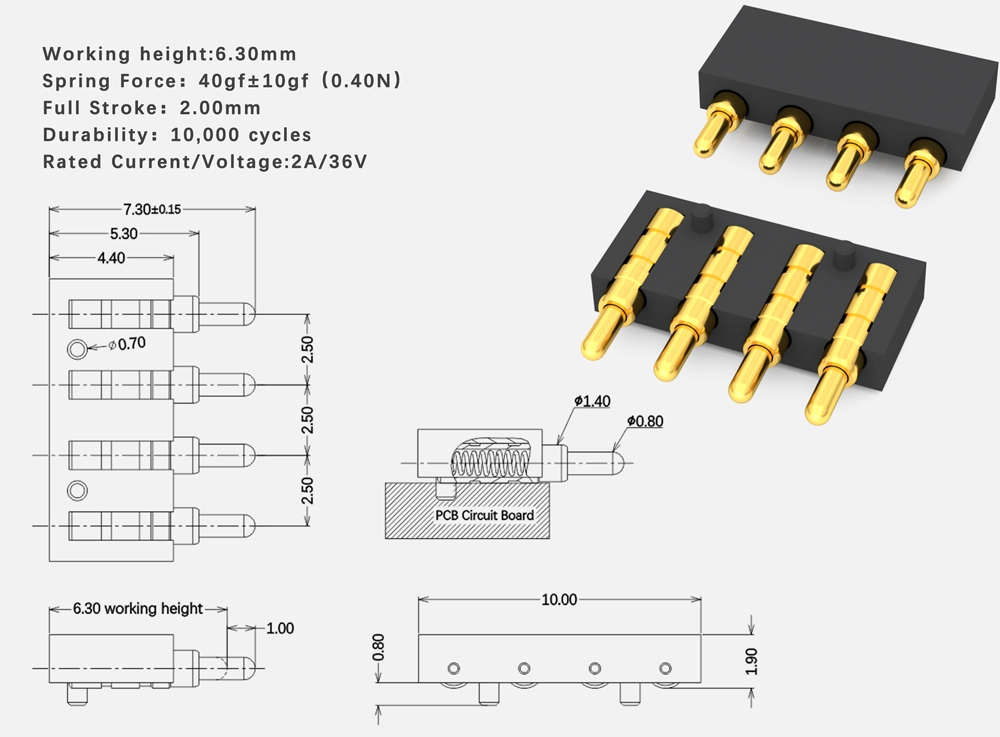

smd side contact pogo pin connector factory

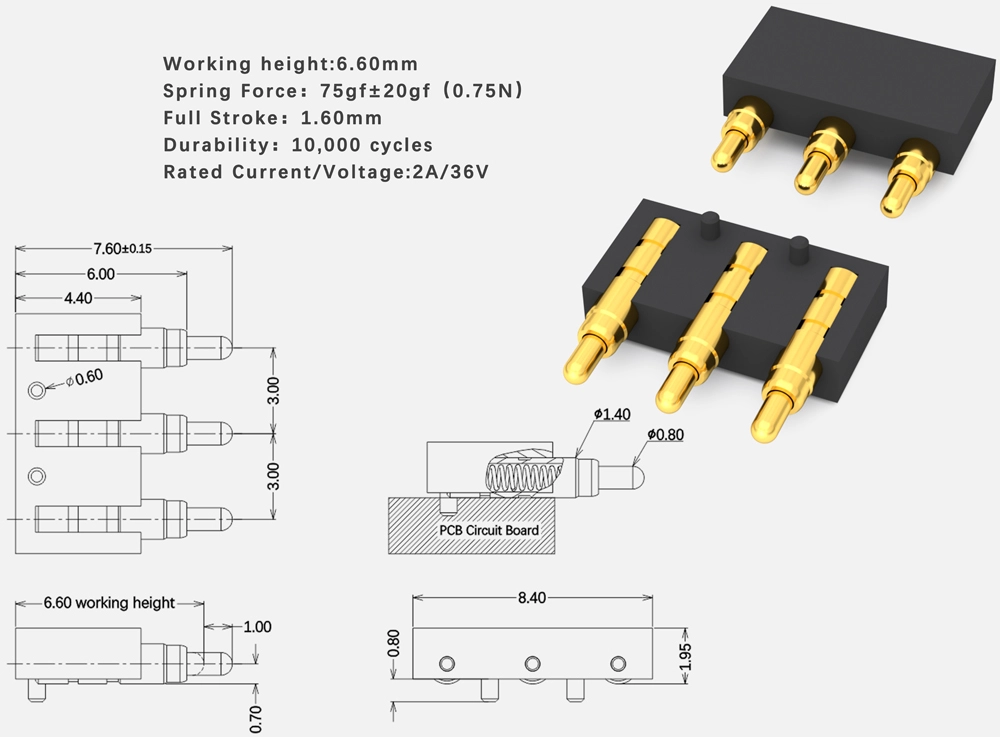

smd side contact pogo pin connector for sale
smd side contact pogo pin connector manufacturing company

Technical Parameters of SMD Side Contact Pogo Pin Connector

ItemsDetails

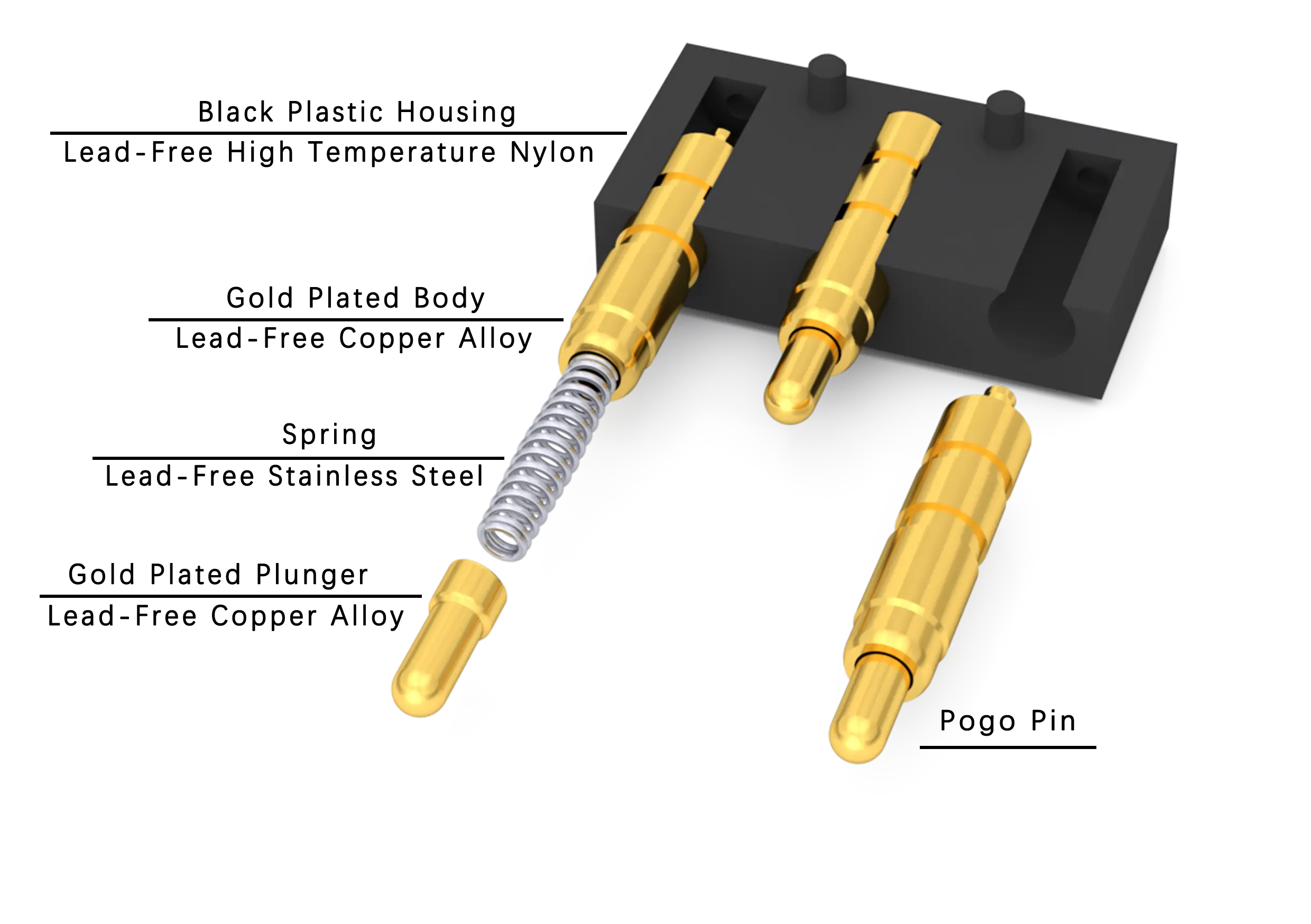

Material● Plunger:  Lead-Free Copper Alloy
● Body: Lead-Free Copper Alloy
● Spring: Stainless Steel
●SolidPin: Lead-Free Copper Alloy
●Housing: Lead-Free-High Temperature Nylon
Main Technical Parameters● Standard state:
● Operating temperature: -40~+120°C(Standard)
● Operating humidity: 20-85%RH
● Storage temperature: -10~+50°C
● Storage humidity: 20-85%RH
● Rating voltage: 36V AC/DC(Standard)
● Rating current: 2A/Pin Continuous(Standard)
● Contact resistance: 30 mΩ Max.(Standard)
● Withstanding voltage: 250V AC ,1 Minute
● Insulation resistance: 500 MΩ Min.
● Durability: 10,000 Cycle(Standard)
● Working Spring Force: 70~180gf(Standard)
Electroplating● Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm
● Body: Ni Plating 1.4μm, Gold Plating 0.10μm
● SolidPin: Ni Plating 1.4μm, Gold Plating 0.10μm
Contact Type● Side Contact Type
Installation Method● SMT automatic placement machine+Reflow soldering
● Plugin machine + Wave soldering
Environmental Protection Standard● Comply with EU RoHS and Reach standards


Selection Guide of SMD Side Contact Pogo Pin Connector

Please Note: Please refer to the operation manual for instructions and precautions


SNProduct ImageNumber Of PinsPitchCatalog Download
1

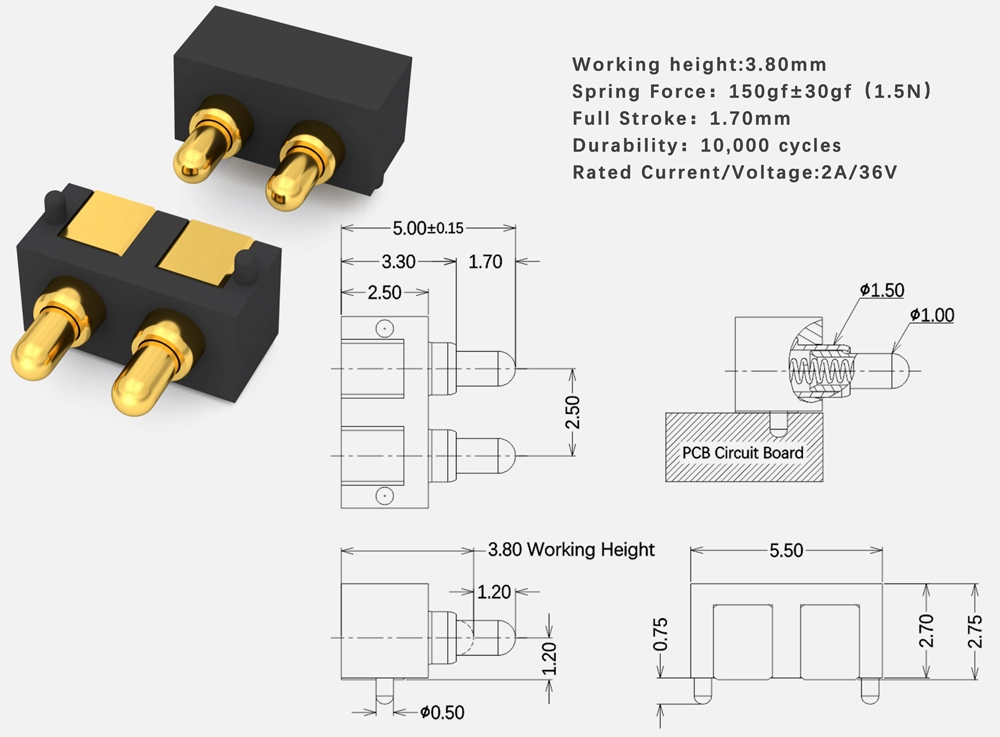

2Pin-Pitch2.50-SMD Side Contact Pogo Pin Connector

2Pin2.502Pin-Pitch2.50-SMD Side Contact Pogo Pin Connector
2

3Pin-Pitch3.00-SMD Side Contact Pogo Pin Connector

3Pin3.003Pin-Pitch3.00-SMD Side Contact Pogo Pin Connector
3

4Pin-Pitch2.50-SMD Side Contact Pogo Pin Connector

4Pin2.504Pin-Pitch2.50-SMD Side Contact Pogo Pin Connector
