Pin Female Header

  • Installation method: SMT surface mount (SMD) reflow soldering or wave soldering

  • Contact Resistance: 30 milliohms Max.

  • Rated Current: 2A~30A (Continuous Current)

  • Rated Voltage: 36V AC/DC

  • Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)

  • Operating Temperature: -40°C to +120°C (Continuous Temperature)

  • Salt Spray Resistance 96 Hours Corrosion Test

  • High-Precision Mold And Parts Processing

  • A variety of standards are available, and samples will be sent out as soon as the same day.

  • Provide Customized Services

  • Comply With EU RoHS And Reach Standards

Product Details
Technical Parameters
Product Selection Guide

Product Details

Multi-contact female connector, also known as a Machined Pin Header or Printed Circuit Board (PCB) Connector, is composed of multiple solid pins and a high-temperature resistant plastic base. It is commonly used as the counterpart for Pogo Pin connectors, facilitating electrical conductivity or signal transmission.

The materials and electroplating processes used for multi-contact female connectors are the same as those used for Pogo Pin connectors, ensuring stable and extremely low contact resistance. This reliability persists even with frequent mating cycles, resulting in a long service life.

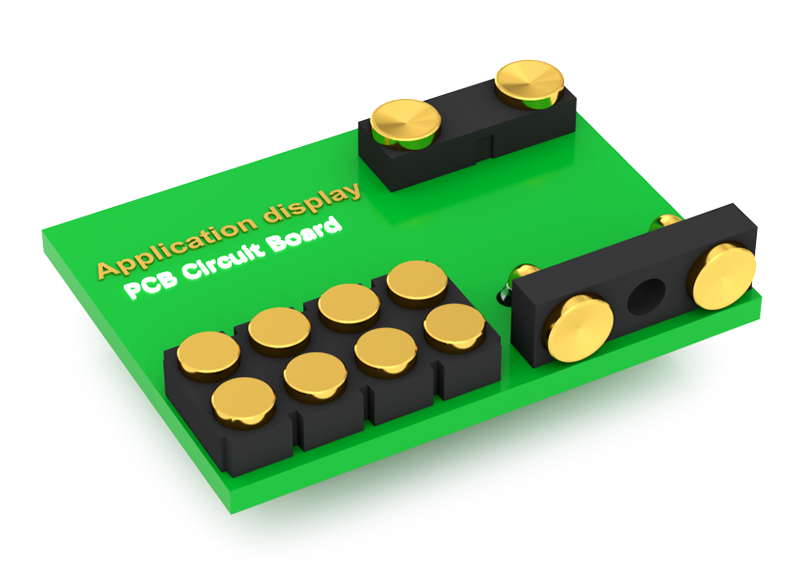

Installation Methods for Multi-contact Pin Female Header

1. Automated placement with an SMT (Surface-Mount Technology) pick-and-place machine followed by reflow soldering to secure the component.

2. Fixation through wave soldering.

Both of these installation methods are fast, precise, and highly automated, significantly enhancing production efficiency and product quality.


Material & Parts

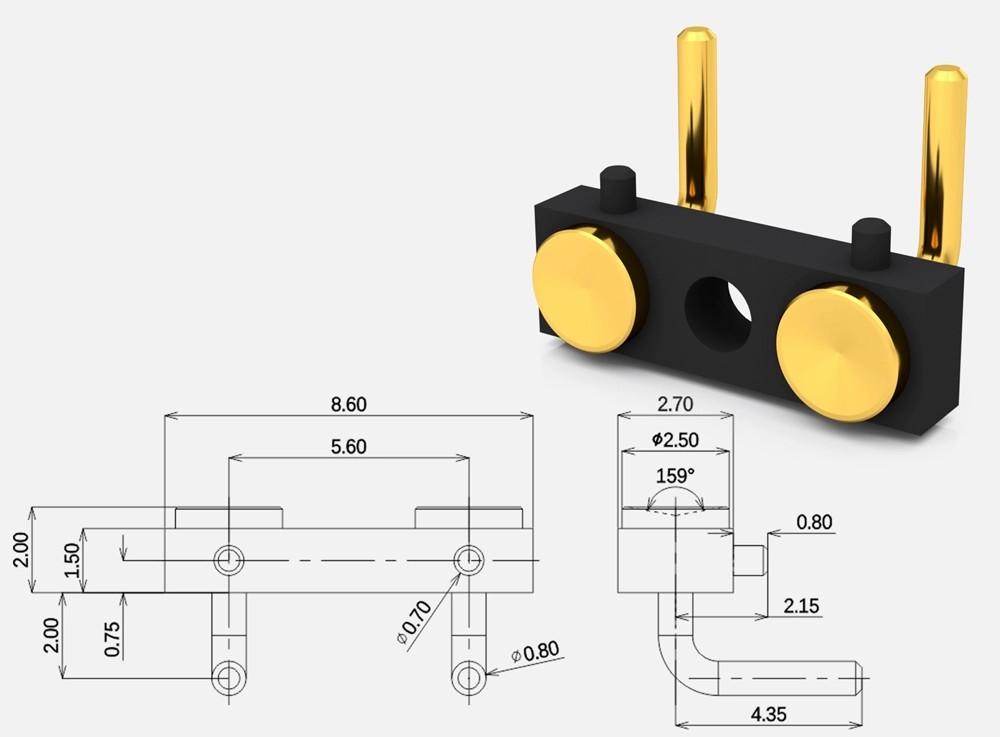

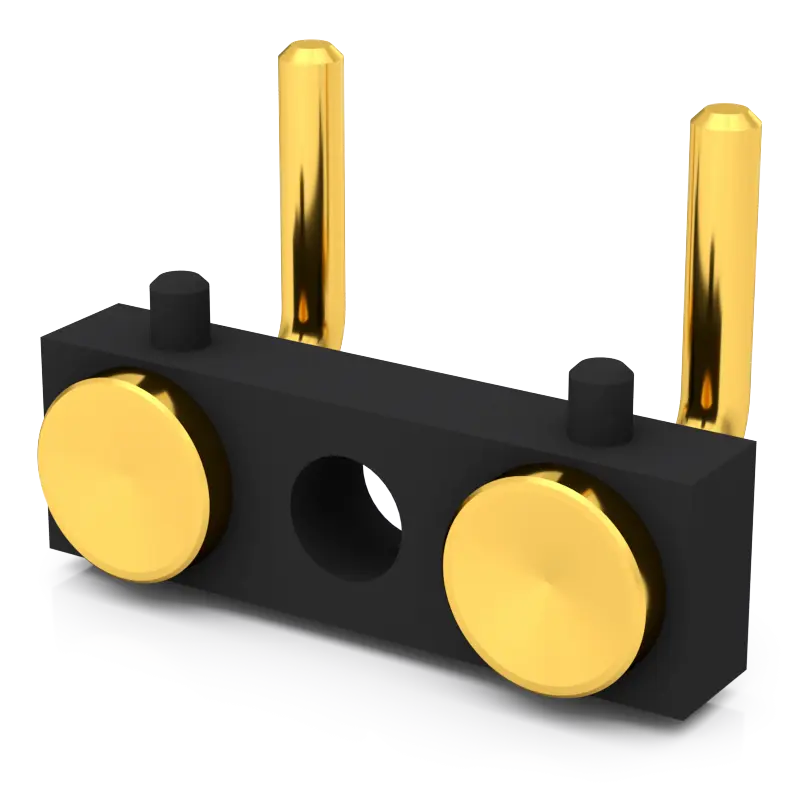

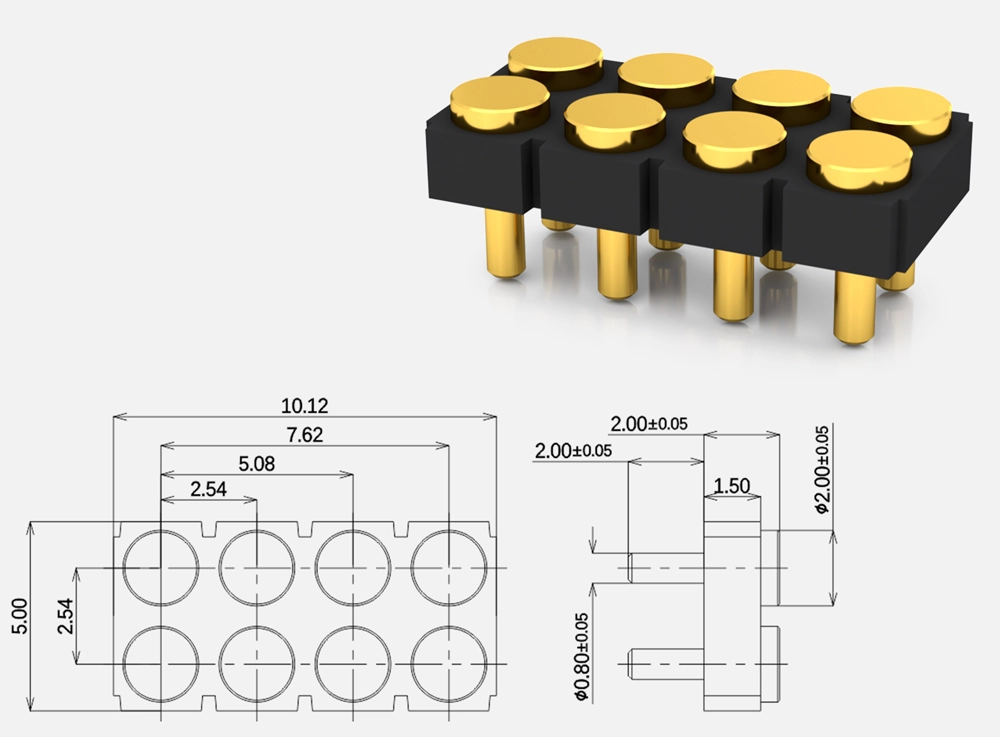

Vertical Contact Type

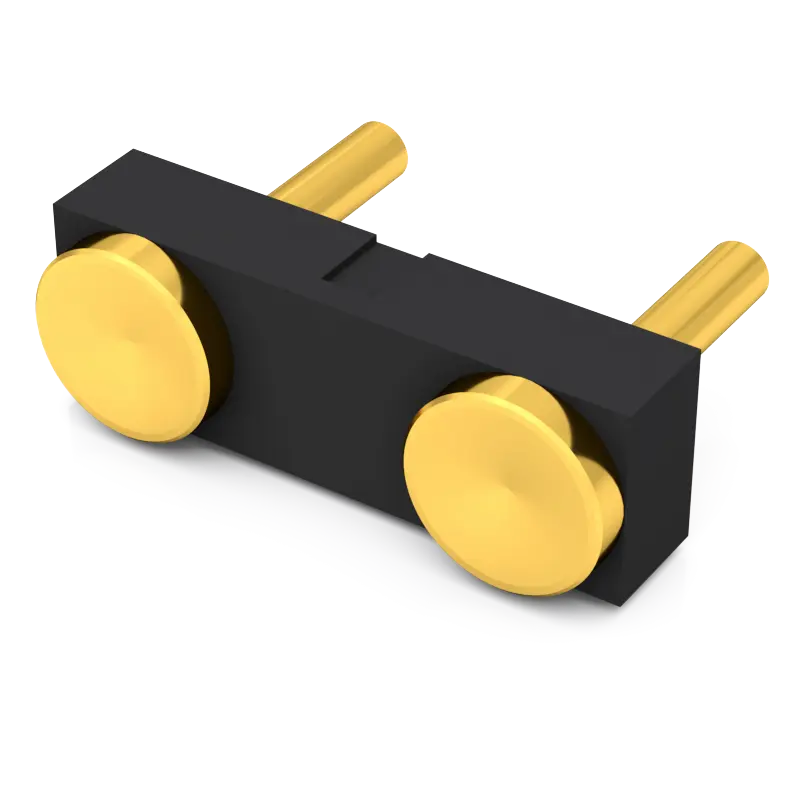

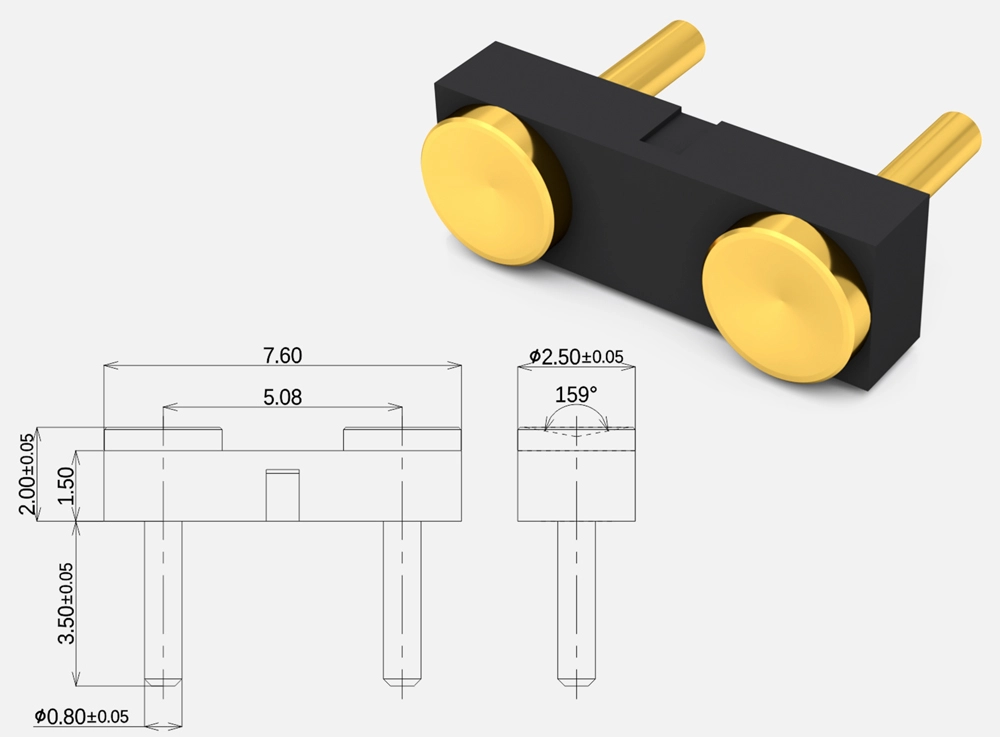

Side Contact Type

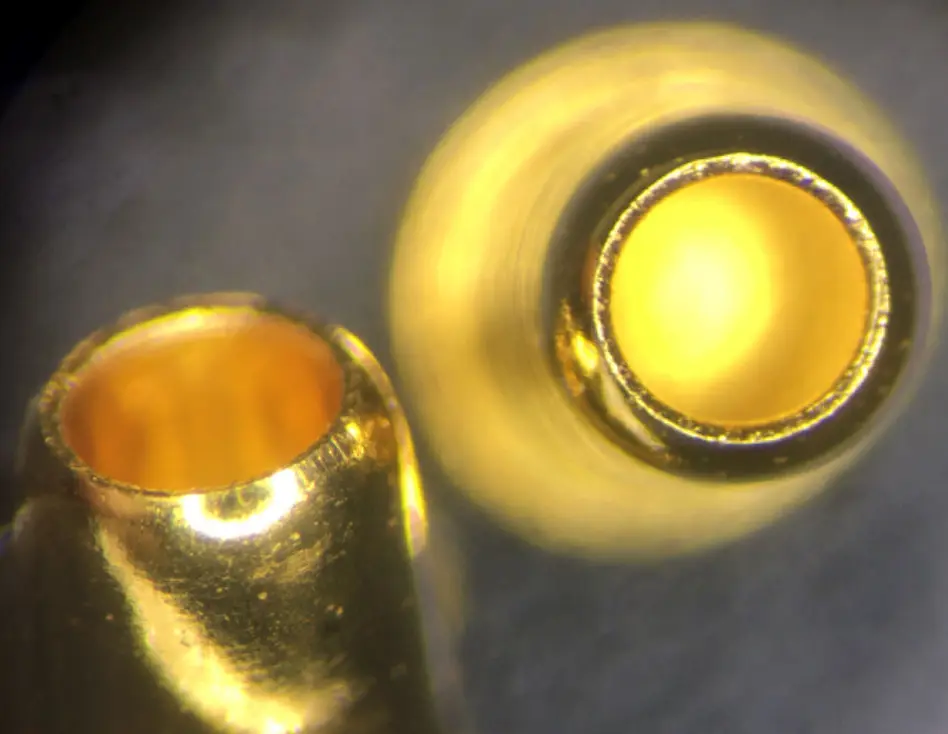

The vacuum blind hole electroplating technology is known for its superior performance, capable of quickly and accurately electroplating a layer of gold inside and outside extremely fine blind holes. This excellent electroplating process not only ensures the overall aesthetics of the metal surface but also has outstanding corrosion resistance and wear resistance. Both the inside and the outside of the hole present a bright golden color, and there will be no peeling or gold dropping issues.

pogo pin header female sample

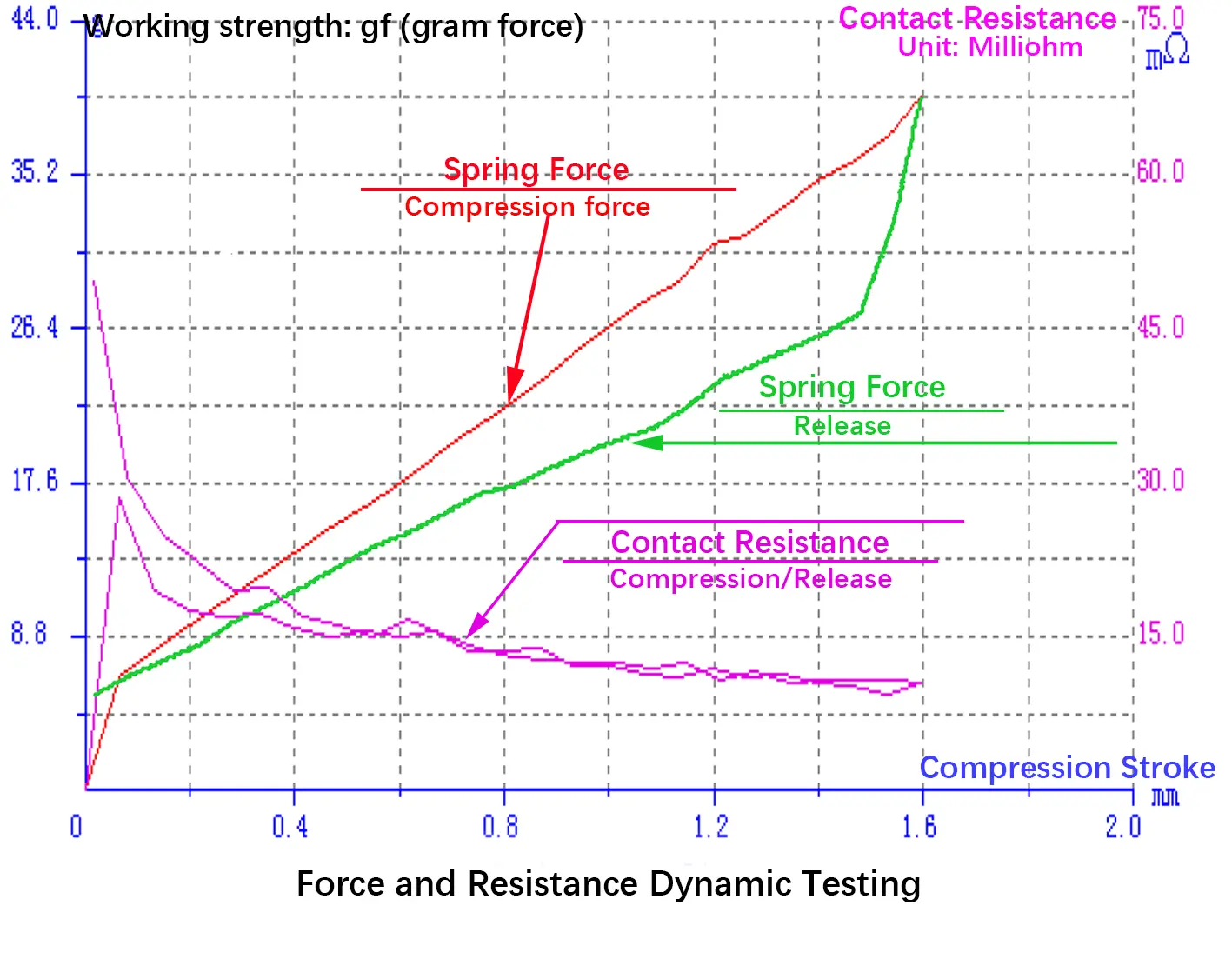

By combining mature design concepts, high-precision processing techniques, and excellent vacuum blind hole electroplating technology, we can achieve extremely low and stable contact resistance.

pogo pin header female design

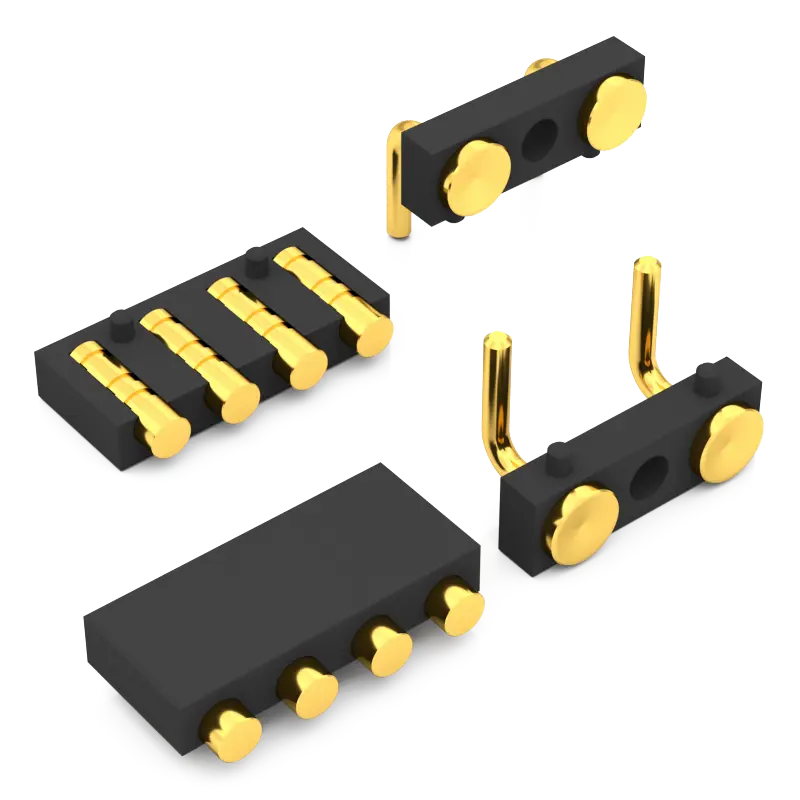

Standard Product

pin header female supplier
pin female header supplier
female header connector supplier

Technical Parameters of Pin Female Header

Material● SolidPin: Lead-Free Copper Alloy
● Housing: High temperature nylon plastic
Main Technical Parameters● Standard state:
● Operating temperature: -40~+120°C(Standard)
● Operating humidity: 20-85%RH
● Storage temperature: -10~+50°C
● Storage humidity: 20-85%RH
● Rating voltage: 36V AC/DC(Standard)
● Rating current: 2A/Pin Continuous(Standard)
● Contact resistance: 30 mΩ Max.(Standard)
● Withstanding voltage: 250V AC ,1 Minute
● Insulation resistance: 500 MΩ Min.
● Durability: 10,000 Cycle(Standard)
● Working Spring Force:50~180gf(Standard)
Electroplating● Contact Pad: Ni Plating 1.4μm, Gold Plating 0.10μm
Contact Type● Vertical SMD Contact Type Or Side contact Type
Installation Method● SMT automatic placement machine+Reflow soldering
Environmental Protection Standard● Comply with EU RoHS and Reach standards

Selection Guide of Pin Female Header

Please Note: Please refer to the operation manual for instructions and precautions

Product ImageContact TypeInstallation methodCatalog Download

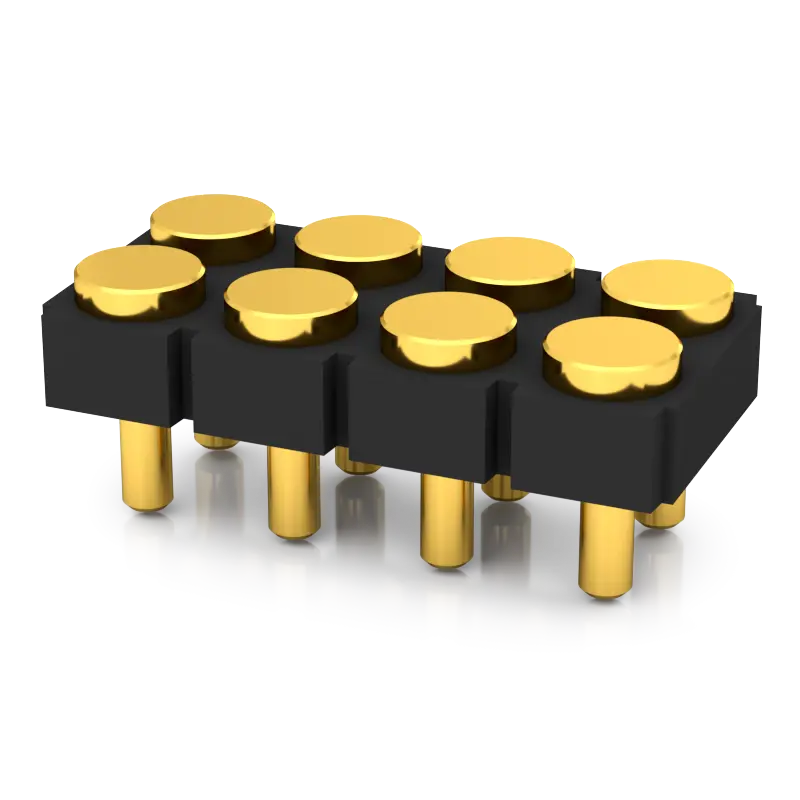

Vertical Contact Type-Female Connector

Vertical Contact TypeSMT surface mount (SMD) reflow soldering or wave solderingVertical Contact Type-Female Connector

Side Contact Type-Female Connector

Side contact TypeSMT surface mount (SMD) reflow soldering or wave solderingSide contact type-Female Connector
